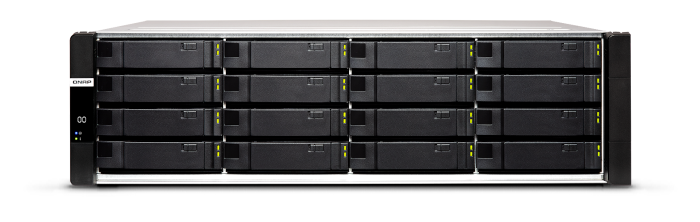

The QNAP ES1686dc is an enterprise-grade NAS solution designed to meet the demanding storage requirements of large organizations. With its advanced features and exceptional reliability, it's the ideal choice for businesses seeking top-tier storage performance and data protection.

As a Value Added Reseller (VAR) and partner with QNAP, ServerMonkey offers the QNAP ES1686dc at competitive rates, providing businesses with access to cutting-edge storage hardware.

Request a Quote

Details:

Description

CPU:	Intel® Xeon® D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
CPU Architecture:	64-bit x86
Floating Point Unit:	Yes
Encryption Engine:	Yes (AES-NI)
System Memory:	64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller

Maximum Memory:	512 GB (8 x 64GB)
Memory Slot:	8 x R-DIMM/LR-DIMM DDR4 IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.
Flash Memory:	4GB (Dual boot OS protection)
Drive Bay:	16 x 3.5-inch SAS 12Gb/s, backward-compatible to SAS 6Gb/s
Drive Compatibility:	3.5-inch bays: 3.5-inch SAS/SATA hard disk drives 2.5-inch SAS/SATA hard disk drives 2.5-inch SAS/SATA solid state drives The QDA-SA adapter is designed for QNAP Enterprise ZFS NAS and allows the use of a SATA 6Gbps drive in a 3.5-inch SAS drive bay
Hot-swappable:	Yes
SSD Cache Acceleration Support:	Yes - Read cache only
Cache for Copy To Flash (C2F):	1 per each controller (64GB M.2 SSD)
Gigabit Ethernet Port (RJ45):	3 for each controller (one for remote management)
10 Gigabit Ethernet Port:	4 x 10GbE SFP+ for each controller
Wake on LAN (WOL):	Yes
Jumbo Frame:	Yes
PCIe Slot:	2 per controller Slot 1: PCIe Gen 3 x8 (CPU) Slot 2: PCIe Gen 3 x8 (CPU) Card dimensions for PCIe slot 1~Slot 2：215 x 68.9 x 18.76 mm / 8.46 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 1 port:	2 per each controller Note: The USB ports are for engineering purpose only. No external devices such as storage drives or UPS are supported.
Form Factor:	3U Rackmount
