Key Features
Flexible I/O Configurations: Customizable, Efficient, and Adaptable
The WIO system architecture offers customizable I/O options, enabling tailored configurations to meet specific enterprise requirements efficiently.
Supports a variety of storage and networking options, allowing seamless integration into diverse IT environments.
Tool-less, top-loading riser design simplifies the installation and removal of expansion cards, reducing maintenance time and effort.
These capabilities ensure the server can adapt to evolving business needs, providing a future-proof solution for enterprise applications.
Robust Security Measures: Trusted, Compliant, and Protective
Integrates a Trusted Platform Module (TPM) 2.0 and Silicon Root of Trust (RoT) compliant with NIST 800-193 standards, ensuring robust hardware-based security.
Features cryptographically signed firmware, secure boot, and secure firmware updates to protect against unauthorized access and tampering.
Automatic firmware recovery and runtime BMC protections further enhance system integrity and reliability.
These security features provide peace of mind, safeguarding sensitive data and maintaining compliance with industry standards.
High-Performance Computing: Powerful, Scalable, and Efficient
Powered by a single Intel® Xeon® 6 6700 series processor with E-cores, supporting up to 144 cores and 144 threads, delivering exceptional processing power for demanding workloads.
Supports up to 1TB of 6400MT/s ECC DDR5 RDIMM memory across 8 DIMM slots, providing high bandwidth and low latency for data-intensive applications.
Offers flexible storage configurations with up to 10 hot-swap 2.5" drive bays, supporting combinations of NVMe, SAS, and SATA drives to meet diverse storage needs.
Advanced expansion capabilities with 3 PCIe 5.0 slots (2x FHFL + 1x LP) enable seamless integration of GPUs and other accelerators, enhancing computational performance.
Contact Sales:
New Supermicro 1U WIO SYS-112B-WR SuperServer

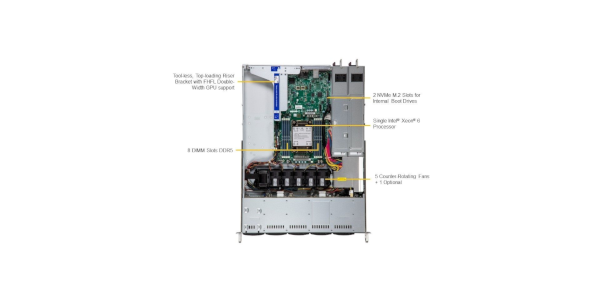

Processor Type: Single Socket E2 (LGA-4710) supporting Intel® Xeon® 6 6700 series processors with E-cores
Processor Cores Available: Up to 144 cores and 144 threads; up to 108MB cache
Maximum Memory: Up to 1TB 6400MT/s ECC DDR5 RDIMM
Memory Slots: 8 DIMM slots across 8 channels

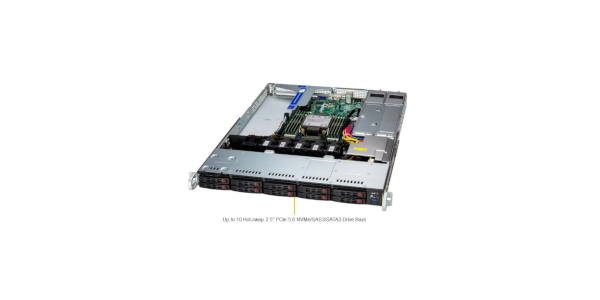

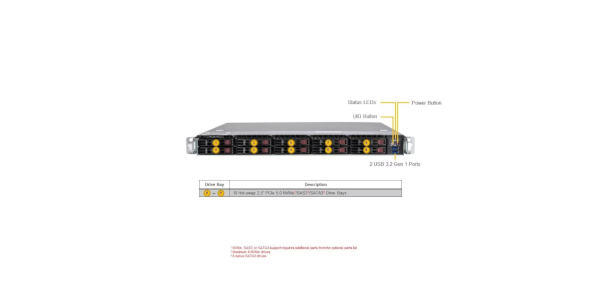

Drive Bays: Up to 10 hot-swap 2.5" NVMe/SAS/SATA drive bays
Expansion Slots: 2 PCIe 5.0 x16 FHFL slots and 1 PCIe 5.0 x8 (in x16) LP slot

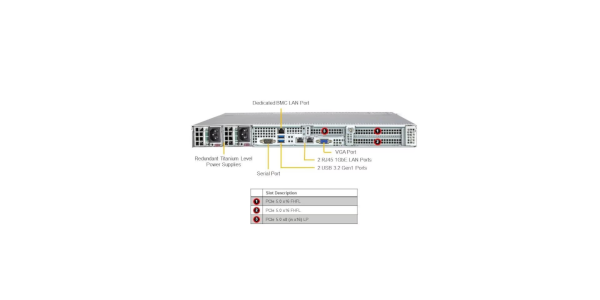

Network Controller: 2 RJ45 1GbE LAN ports with Intel® I210 and 1 RJ45 1GbE Dedicated BMC LAN port
Power Supply: Dual 860W redundant Titanium Level (96%) power supplies
Dimensions: 1.7" (H) x 17.2" (W) x 23.5" (D); Gross Weight: 33.5 lbs (15.2 kg)
