Supermicro 1U Hyper SYS-122H-TN SuperServer

General Details

Supports dual Intel® Xeon® 6700/6500 series processors with P-cores or E-cores in Socket E2 (LGA-4710) configurations, enabling up to 288 total cores and up to 672MB combined cache.
Features 32 DIMM slots supporting up to 8TB of DDR5 ECC RDIMM memory at speeds of up to 6400MT/s (5200MT/s at 2DPC) or up to 1TB of MRDIMM at 8000MT/s.
Offers support for up to 1 double-width or 3 single-width GPUs with PCIe 5.0 x16 interconnects for high-throughput computing workloads.
Provides flexible storage configurations with NVMe RAID 0/1/5/10 support via Intel® VROC, integrated via CPU PCIe lanes.
Delivers intelligent platform management through Supermicro’s suite of software tools, including SuperCloud Composer®, SSM, and BMC with IPMI and Redfish support.

Features

Specs

Documents

Request Quote

Key Features

Dual-Socket Powerhouse: Efficient, Scalable, and Reliable

Engineered for performance and flexibility, the Supermicro SYS-122H-TN supports dual Socket E2 (LGA-4710) with Intel® Xeon® 6700/6500 series processors, enabling up to 288 cores across both sockets.

The system supports up to 8TB of DDR5 ECC RDIMM across 32 DIMM slots with advanced memory configurations like 8000MT/s MRDIMM and 6400MT/s RDIMM for cutting-edge performance and bandwidth.

Advanced Storage and Expansion Flexibility

Offers flexible storage with NVMe RAID 0/1/5/10 support (via Intel® VROC), and PCIe Gen5 slots for high-speed storage devices and connectivity expansion.

Accommodates up to 1 double-width or 3 single-width GPUs with PCIe 5.0 x16 CPU-to-GPU interconnects, ideal for AI/ML workloads and accelerated computing.

Robust Security and Intelligent Management

Hardware-based security includes TPM 2.0, Silicon Root of Trust (NIST 800-193 compliant), cryptographic firmware validation, and system lockdown capabilities.

Streamlined manageability through IPMI 2.0, Redfish API, Supermicro Server Manager (SSM), and support for SuperCloud Composer®, enabling remote diagnostics, provisioning, and monitoring.

Contact Sales:

New Supermicro 1U Hyper SYS-122H-TN SuperServer

Product SKU:SuperServer SYS-122H-TN

Motherboard:Super X14DBM-SP

CPU:Dual Socket E2 (LGA-4710); Intel® Xeon® 6700/6500 series (P-cores or E-cores)

Core Count:P-cores: Up to 86C/172T, 336MB Cache per CPU; E-cores: Up to 144C/144T, 108MB Cache per CPU

TDP Support:Up to 350W (Air or Liquid Cooled)*

Max GPU Count:Up to 1 double-width or 3 single-width GPUs

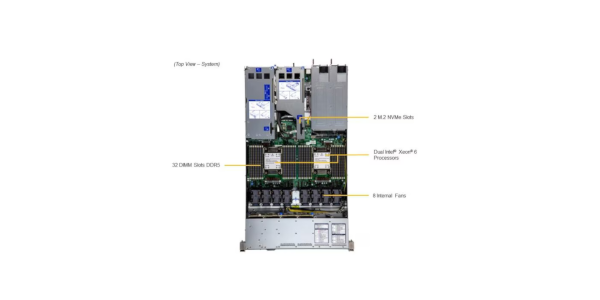

Memory Slots:32 DIMM slots

Max Memory:Up to 8TB DDR5 ECC RDIMM (5200MT/s), Up to 4TB (6400MT/s), Up to 1TB MRDIMM (8000MT/s)

Memory Voltage:1.1V

NVMe Support:RAID 0/1/5/10 via Intel® VROC (RAID key required)

Chipset:System on Chip

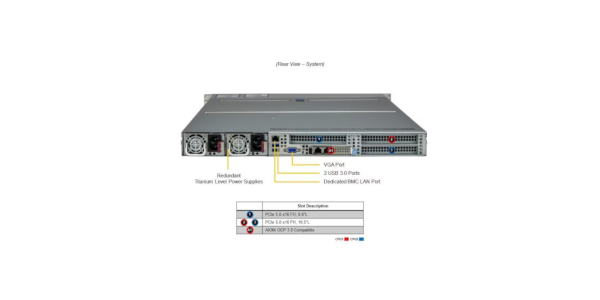

Network:Via AIOM; 1x RJ45 1GbE BMC LAN

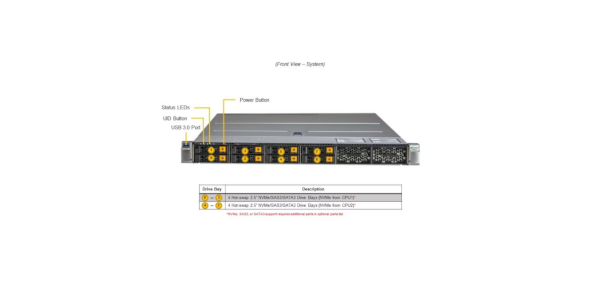

USB:2x USB 3.0 (rear), 1x USB 3.0 (front)

Video:1x VGA

BIOS:AMI 64MB SPI Flash

Management:SuperCloud Composer, SSM, SDO, TAS, SAA

Power Management:Power-on recovery, ACPI

Security:TPM 2.0, Silicon Root of Trust (NIST 800-193), Secure Boot, Signed Firmware, Firmware Recovery, System Lockdown

Monitoring:CPU/chipset voltage/memory monitoring, fan tachometer with PWM, thermal control for fans
