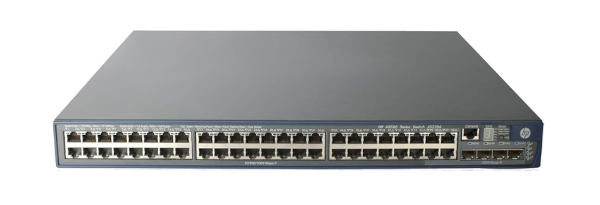

The HPE 5500 HI Switch Series comprises Gigabit Ethernet switches that deliver outstanding resiliency, security, and multiservice support capabilities at the edge layer of data center, large campus, and metro Ethernet networks.

As a Value Added Reseller (VAR) and partner with manufacturers, ServerMonkey offers the HPE MSA 1050 at competitive rates, providing businesses with access to high-quality hardware.

Request a Quote

Details:

Description

	HP 5500-24G-4SFP HI Switch with 2 Interface Slots	HP 5500-48G-4SFP HI Switch with 2 Interface Slots (JG312A)	HP 5500-24G-PoE+-4SFP HI Switch with 2 Interface Slots (JG541A)	HP 5500-48G-PoE+-4SFP HI Switch with 2 Interface Slots (JG542A)	HP 5500-24G-SFP HI Switch with 2 Interface Slots (JG543A)
I/O ports and slots	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports 2 SFP+ 10GbE ports 2 port expansion module slots Supports a maximum of 38 autosensing 100/1000 ports, with optional module	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports 2 SFP+ 10GbE ports 2 port expansion module slots Supports a maximum of 70 autosensing 100/1000 ports, with optional module	24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports 2 SFP+ 10GbE ports 2 port expansion module slots Supports a maximum of 38 autosensing 100/1000 ports, with optional module	48 RJ-45 autosensing 10/100/1000 PoE+ ports; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports 2 SFP+ 10GbE ports 2 port expansion module slots Supports a maximum of 70 autosensing 100/1000 ports, with optional module	24 fixed Gigabit Ethernet SFP ports 4 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP+ 10GbE ports 2 port expansion module slots Supports a maximum of 12 autosensing 10/100/1000 ports, with optional module
Additional ports and slots	1 RJ-45 serial console port 1 RJ-45 out-of-band management port	1 RJ-45 serial console port 1 RJ-45 out-of-band management port	1 RJ-45 serial console port 1 RJ-45 out-of-band management port	1 RJ-45 serial console port 1 RJ-45 out-of-band management port	1 RJ-45 serial console port 1 RJ-45 out-of-band management port
Power supplies	2 power supply slots 1 minimum power supply required (ordered separately)	2 power supply slots 1 minimum power supply required (ordered separately)	2 power supply slots 1 minimum power supply required (ordered separately)	2 power supply slots 1 minimum power supply required (ordered separately)	2 power supply slots 1 minimum power supply required (ordered separately)
Memory and processor	1 GB SDRAM; Packet buffer size: 3 MB, 512 MB flash	1 GB SDRAM; Packet buffer size: 6 MB, 512 MB flash	1 GB SDRAM; Packet buffer size: 3 MB, 512 MB flash	1 GB SDRAM; Packet buffer size: 6 MB, 512 MB flash	1 GB SDRAM; Packet buffer size: 3 MB, 512 MB flash
Performance	1000 Mb Latency < 5 µs 10 Gbps Latency < 3 µs Throughput up to 130.9 Mpps Routing/Switching capacity 176 Gbps Routing table size 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size 32000 entries	1000 Mb Latency < 5 µs 10 Gbps Latency < 3 µs Throughput up to 166.6 Mpps Routing/Switching capacity 224 Gbps Routing table size 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size 32000 entries	1000 Mb Latency < 5 µs 10 Gbps Latency < 3 µs Throughput up to 130.9 Mpps Routing/Switching capacity 176 Gbps Routing table size 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size 32000 entries	1000 Mb Latency < 5 µs 10 Gbps Latency < 3 µs Throughput up to 166.6 Mpps Routing/Switching capacity 224 Gbps Routing table size 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size 32000 entries	1000 Mb Latency < 5 µs 10 Gbps Latency < 3 µs Throughput up to 130.9 Mpps Routing/Switching capacity 176 Gbps Routing table size 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size 32000 entries
