General Details

Powered by 6th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids) with up to 86 cores, supporting up to 2TB of DDR5 memory via 16 DIMM slots for exceptional performance and scalability.
Features 8 memory channels per CPU, enabling higher memory bandwidth and improved power efficiency using DDR5-4800 memory.
Advanced data transfer capabilities with PCIe 5.0 support, including 2 x PCIe 5.0 x16 full-height slots and 1 x AIOM slot for high-speed networking or additional I/O expansion.
Integrated with Intelligent Platform Management Interface (IPMI) and Redfish API support for remote monitoring and management of the system hardware.

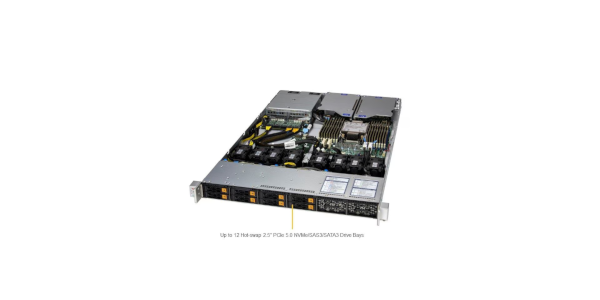

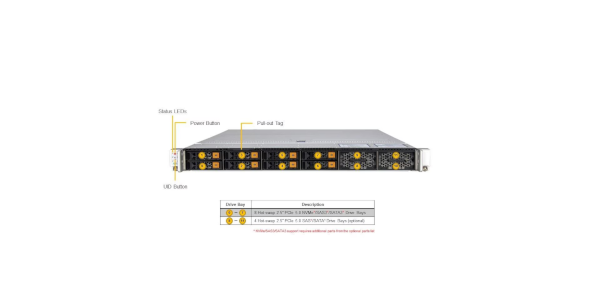

Supports up to 12 hot-swappable 2.5" NVMe/SATA/SAS drive bays, allowing for high-speed storage configurations and redundancy.

Features

Specs

Documents

Request Quote

Key Features

Compact Design for Modern Cloud Deployments

The Supermicro 1U CloudDC SuperServer (SYS-112C-TN) leverages the Super X14SBHM motherboard and supports single-socket Intel® Xeon® 6700/6500 series processors, including configurations with up to 144 E-cores.

Designed to balance density and performance, this 1U system fits seamlessly into high-density data centers and edge computing environments.

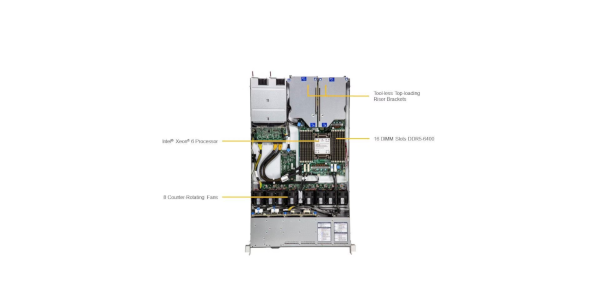

With support for 16 DDR5 DIMM slots across 8 channels, the server enables configurations with up to 2TB of RDIMM or 512GB of MRDIMM memory (at 8000MT/s).

The chassis supports up to 2 single-width GPUs, enabling support for AI inference, virtual desktop infrastructure (VDI), and other GPU-accelerated workloads.

Flexible PCIe 5.0 expansion allows deployment of additional networking, storage, or acceleration cards through AIOM and x16 slots.

Enterprise-Grade Security and Remote Management

The SYS-112C-TN includes support for Trusted Platform Module (TPM) 2.0, Secure Boot, cryptographically signed firmware, and Silicon Root of Trust to meet compliance and cybersecurity requirements.

Supermicro’s Silicon Root of Trust is NIST 800-193 compliant, ensuring tamper-evident firmware protection and automatic recovery.

Secure remote management is delivered via IPMI, KVM-over-LAN, Redfish, and full compatibility with Supermicro’s suite of management tools including SSM, TAS, SAA, and SuperCloud Composer.

Firmware integrity is preserved through automatic recovery, runtime protections, and system lockdown options that prevent unauthorized access.

The system supports detailed power and thermal monitoring for secure and efficient operation even in constrained rack environments.

High-Speed Storage and Expansion Ready

With native support for NVMe, SAS, and SATA, the SYS-112C-TN includes Intel® VROC RAID (0/1/5/10) functionality and can be customized with storage expansion via NVMe form factor drives.

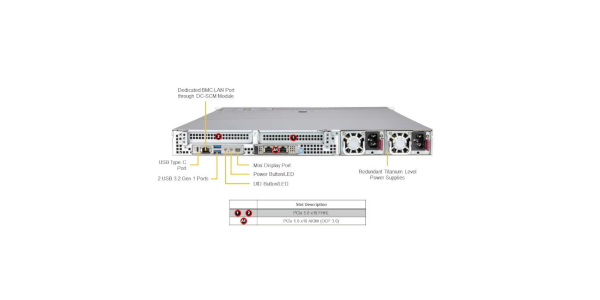

Includes 2 rear USB 3.2 Gen1 Type-A ports and a rear Mini-DisplayPort for service or KVM console access.

Network connectivity is available via an AIOM slot with support for 10G, 25G, and 100G Supermicro AOC/AIOM options.

Advanced thermal monitoring ensures optimal fan speeds and quiet operation while maintaining high-performance cooling.

Perfect for IaaS, bare-metal provisioning, CDN nodes, or VDI workloads where performance density and energy efficiency are essential.

Contact Sales:

New Supermicro 1U CloudDC SuperServer (SYS-112C-TN)

Product SKU:SuperServer SYS-112C-TN

Motherboard:Super X14SBHM

CPU: Single Socket E2 (LGA-4710); Intel® Xeon® 6700/6500 with P-cores or E-cores

Core Count: P-cores: Up to 86C/172T (336MB Cache); E-cores: Up to 144C/144T (108MB Cache)

TDP Support:Up to 350W (Air Cooled)

Max GPU Count:Up to 2 single-width GPUs

Supported GPU:NVIDIA PCIe L4 – View GPU Options

CPU-GPU Interconnect:PCIe 5.0 x16

Memory Slots:16 DIMM slots (8 channels)

Max Memory: Up to 1TB DDR5 RDIMM @ 6400MT/s or 512GB MRDIMM @ 8000MT/s (P-core only); 2TB RDIMM @ 5200MT/s (2DPC)

Memory Voltage:1.1V

NVMe: RAID 0/1/5/10 (Intel® VROC RAID key required) – View NVMe Options

Chipset:System on Chip

Networking: Via AIOM – View AIOM Options

LAN:1 RJ45 1GbE Dedicated BMC LAN port

USB:2 USB 3.2 Gen1 Type-A (rear)

Video:1 Mini DisplayPort (rear)

TPM:1 TPM header

BIOS:AMI 32MB SPI Flash EEPROM

Management Software: SuperCloud Composer®, SSM, SDO, TAS, SAA

Power Configurations:ACPI/APM Power Management
