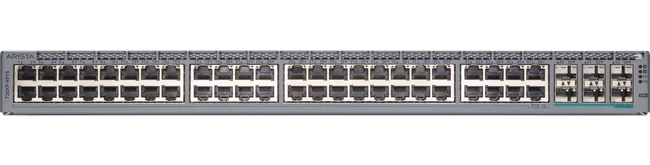

720X Series :: Arista :: Networking

Home
Networking
Arista
720X Series

Seamlessly and securely connect applications across your cloud, data center, and edge locations. Cisco routing provides intent-based networking for the WAN, LAN, and cloud. Our network routers include advanced analytics, application optimization, automated provisioning, and integrated security to deliver a complete, proven solution. Respond to business needs faster and increase IT efficiency by deploying integrated network services on demand, wherever you need them.

As a trusted Arista reseller, ServerMonkey offers the Arista 720X Series at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Feature	750 Series 8-Slot (758)	750 Series 5-Slot (755)
Supervisor slots	2	2
Linecard slots	8	5
Maximum 10G 60W Ports	384	240
Maximum 2.5G 60W Ports	384	240
Maximum 1G 30W Ports	384	240
System Height (RU)	10	7
Hot-swap Power Supplies	10	6
Hot-swappable Fans	8	6
Dimensions (HxWxD)	17.3 x 17.4 x 16.5” (43.9 x 44.2 x 41.2cm)	12 x 17.4 x 16.5” (30.5 x 44.2 x 41.2cm)
Weight (Empty)	69.52 lbs (31.6 kg)	54.56 lbs (24.8 kg)
Acoustics: Measured (ISO 7779)	69.85 dBA @50% 79.53 dBA @100%	TBD
Acoustics: Declared (ISO 9296)	71.53 dBA @50% 80.32 dBA @100%	TBD
Minimum EOS	EOS-4.25.0FX-750X	EOS-4.25.0FX-750X
Switch Card	CCS-758-X3-SC	CCS-755-X3-SC
Redundancy	1+1 Active / Standby	1+1 Active / Standby
Throughput	1.6 Tbps	1.15 Tbps
Packets / Sec	850 Mpps	850 Mpps
Typical Power (Maximum)	101W (174W)	TBD
Physical Dimensions (WxHxD)	16.2 x 4.06 x 8.64” (41.2 x 10.3 x 21.9cm)	11 x 4.06 x 8.64” (27.9 x 10.3 x 21.9cm)
Weight	11.9 lbs (5.4 kg)	9.2 lbs (4.2 kg)
Supervisor Module	CCS-750-SUP100	CCS-750-SUP25
Processor	Quad-Core x86	Quad-Core x86
System Memory	16GB	16GB
Storage Memory	120GB	120GB
Uplink ports	2 x 100G QSFP	4 x SFP 25G
Speeds Supported	1G, 10G, 25G, 40G, 50G, 100G	1G, 10G, 25G
Physical Dimensions (WxHxD)	16.85 x 1.03 x 7.76” (42.8 x 2.6 x 19.7cm)	16.85 x 1.03 x 7.76” (42.8 x 2.6 x 19.7cm)
Weight	5.5 lbs (2.5 kg)	5.3 lbs (2.4 kg)
Typical Power (Maximum)	79W (94W)	TBD
Chassis Support	758-CH and 755-CH	758-CH and 755-CH
Uplink Bandwidth	200Gbps	100Gbps

Feature	CCS-750X-48ZXP-LC	CCS-750X-48ZP-LC	CCS-750X-48TP-LC
Ports	48 x 10G-T RJ45	48 x mGig RJ45	48 x 1000-T RJ45
Speeds Supported	1G, 2.5G, 5G, 10G	100Mb, 1G, 2.5G	10Mb, 100Mb, 1G
Max 1G	48	48	48
Max 2.5G	48	48	0
Max 5G	48	0	0
Max 10G	48	0	0
Weight	7.48 lbs (3.4 kg)	5.5 lbs (2.5 kg)	5.1 lbs (2.3 kg)
PoE	60W all ports	60W all ports	30W all ports
Typical Power (Maximum) excl PoE	TBD	83W (87W)	42W (43W)
Dimensions (HxWxD)	1.63 x 16.85 x 7.76” (4.14 x 42.8 x 19.7 cm)	1.63 x 16.85 x 7.76” (4.14 x 42.8 x 19.7 cm)	1.63 x 16.85 x 7.76” (4.14 x 42.8 x 19.7 cm)
Minimum EOS	TBD	EOS-4.25.0FX-750X	EOS-4.25.0FX-750X
Chassis Support	CCS-758-CH and CCS-755-CH	CCS-758-CH and CCS-755-CH	CCS-758-CH and CCS-755-CH

Feature/Model	720XP-96ZC2	720XP-96ZC2-M-S	720XP-48ZC2	720XP-24ZY4	720XP-48TXH-2C-S
Ports	96 RJ45, 4 25G SFP, 2 100G QSFP	96 RJ45, 4 25G SFP, 2 100G QSFP	48 RJ45, 4 25G SFP, 2 100G QSFP	24 RJ45, 4 25G SFP	48 RJ45, 4 25G SFP, 2 100G QSFP
100M-2.5G UTP (30W 802.3af/at)	0	40	16	0	0
100M-2.5G UTP (60W 802.3bt)	80	0	0	0	0
100M-5G UTP (60W 802.3bt)	16	8	8	0	0
100M-10G UTP (90W 802.3bt)	0	0	0	0	48
25G SFP	4	4	4	4	4
100G QSFP	2	2	N/A	2	2
Throughput (FDX)	580 (1160) Gbps	440 (880) Gbps	180 (360) Gbps	780 (1560) Gbps	780 (1560) Gbps
Packets/Second	863 Mpps	654 Mpps	268 Mpps	1160 Mpps	1160 Mpps
Latency (RJ-45)	1.2 microseconds	1.2 microseconds	1.2 microseconds	1.2 microseconds	1.2 microseconds
CPU	Dual Core-x86	Dual Core-x86	Dual Core-x86	Dual Core-x86	Dual Core-x86
System Memory	720XP-96ZC2: 4 GB, 720XP-96ZC2-M-S: 8 GB	8 GB	4 GB	4 GB	8 GB
System Flash	8 GB	16 GB	8 GB	8 GB	16 GB
Packet Buffer	16 MB	8 MB	8 MB	8 MB	8 MB
USB Ports	1	1	1	1	1
Console Ports	1	1	1	1	1
100M/1G Management port	1	1	1	1	1
Airflow	Front-Rear	Front-Rear	Front-Rear	Front-Rear	Front-Rear
Power Typical/Max (excluding PoE)	216 W / 236 W	141 W / 156 W	141 W / 156 W	168 W / 199 W	168 W / 199 W
Size (WxHxD)	17.3 x 3.46 x 15.9 inches (44.0 x 8.8 x 40.5 cm)	17.3 x 1.75 x 12.5 inches (44.0 x 4.4 x 31.75 cm)	17.3 x 1.73 x 14.76 inches (44.0 x 4.4 x 37.5 cm)	17.3 x 3.46 x 15.9 inches (44.0 x 8.8 x 40.5 cm)	17.3 x 3.46 x 15.9 inches (44.0 x 8.8 x 40.5 cm)
Weight	31 lb (14.1 kg)	15.6 lbs (7 kg)	13.6 lbs (6.2 kg)	13.25 lbs (6 kg)	13.25 lbs (6 kg)
Fans	3 (N+1 redundant) FAN-7012M-RED	FAN-7000-F	FAN-7000-F	FAN-7000-F	FAN-7000-F
Maximum Power Supply	4	2	2	2	2
Power Supply	PWR-1021-AC, PWR-2021-AC, PWR-621-AC	PWR-1021-AC, PWR-2021-AC, PWR-621-AC	PWR-1021-AC	PWR-1021-AC	PWR-1021-AC
EOS License Group	LIC-FIX-G	LIC-FIX-G	LIC-FIX-1	LIC-FIX-1	LIC-FIX-1
EOS CV Group	SS-CV-G/SS-CVSC-G-SWITCH	SS-CV-G/SS-CVSC-G-SWITCH	SS-CV/SS-CVS-SWITCH	SS-CV/SS-CVS-SWITCH	SS-CV/SS-CVS-SWITCH
Minimum EOS	720XP-96ZC2: 4.24(FX), 720XP-96ZC2-M-S: 4.32.1	4.32.1	4.21	4.21	4.30.2
