Features
Specs
Documents
Request Quote
Key Features
Flexible I/O Configurations
WIO systems offer customizable I/O configurations in a cost-effective architecture, delivering optimized solutions tailored to specific enterprise requirements.
High-Performance Computing
Equipped with a single Intel® Xeon® 6 6700 series processor with E-cores, supporting up to 144 cores and 108MB of cache, suitable for demanding workloads.
Versatile Storage Options
Supports 8 front hot-swap 3.5" drive bays with native SATA support, and options for up to 4 PCIe 5.0 NVMe drives or 8 SAS drives, providing flexible storage configurations.
Contact Sales:
New Supermicro 2U WIO SYS-522B-WR SuperServer
CPU:Single Socket E2 (LGA-4710); Intel® Xeon® 6700/6500 series with P-cores or E-cores
Core Count:P-cores: Up to 86C/172T (336MB Cache); E-cores: Up to 144C/144T (108MB Cache)
TDP Support:Up to 350W (Air Cooled)
Max GPU Count:Up to 1 double-width or 2 single-width GPUs
Supported GPU:NVIDIA PCIe: RTX 4000 Ada Generation
CPU-GPU Interconnect:PCIe 5.0 x16

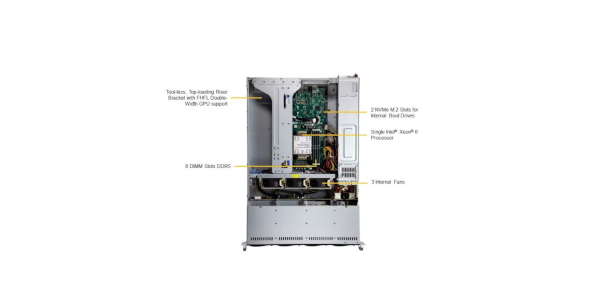

Memory Slots:8 DIMM slots / 8 Channels
Max Memory:Up to 2TB DDR5 ECC RDIMM, 6400MT/s (1DPC)
Memory Voltage:1.1V

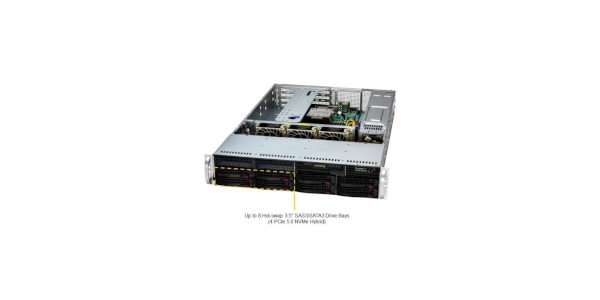

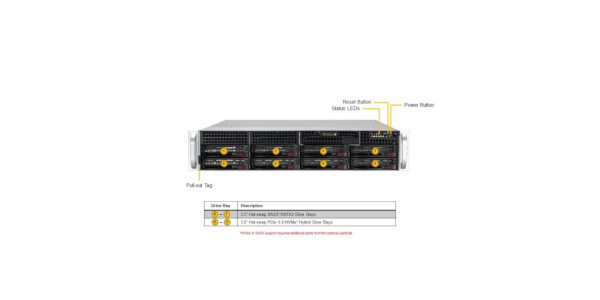

Drive Bays:8x hot-swap 3.5" SATA/SAS; Option: 4x 2.5" PCIe 5.0 x4 NVMe + 4x 3.5"/2.5" SAS/SATA
M.2:2x PCIe 5.0 x2 NVMe (M-key 2280/22110; VROC required for RAID)
Peripheral Bay:1x slim peripheral bay
SATA:6Gbps support
NVMe RAID:RAID 0/1/5/10 (Intel® VROC required)
Chipset:System on Chip

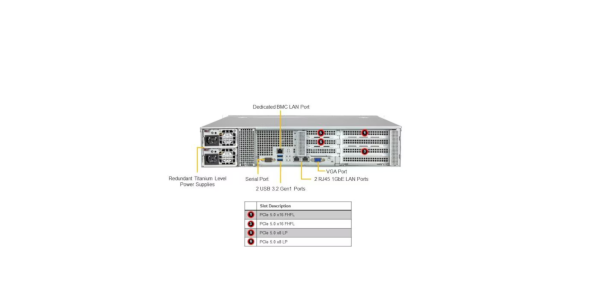

Network:2x RJ45 1GbE (Intel® I210)
LAN:2x 1GbE + 1x dedicated BMC LAN (IPMI shared)
USB:2x USB 3.2 Gen1 Type-A (rear), 2x USB 3.2 Gen1 (header)
Video:1x VGA
Serial:1x COM (rear), 1x COM (header)
TPM:1 TPM Header
BIOS Type:AMI 64MB SPI Flash EEPROM
Management Software: SuperCloud Composer®, SSM, SDO, TAS, SAA
Power Configuration: ACPI/APM Power Management
Monitoring: CPU cores, voltages, memory; 8-phase VRM
Fans: 3x heavy-duty PWM fans with tachometer and speed control
Temperature Sensors: CPU/chassis environment; thermal control for fans
Form Factor: 2U Rackmount (CSE-825B2TS-R0WNP)
Dimensions: 3.5" (H) x 17.2" (W) x 25.5" (D); Package: 11" x 26.5" x 34"
Weight: Gross: 59 lbs (26.76 kg); Net: 34 lbs (15.42 kg)
Color: Black
Power Supply: 2x 1000W Redundant (1+1) Titanium Level (96%)
Input Voltage: 800W @ 100–127Vac; 1000W @ 200–240Vdc or 200–240Vac
+12V Rail: Max 66.7A (100–127V); Max 83A (200–240V)
5V SB: Max 4A
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Storage Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Humidity: 8% to 80% (non-condensing)
Storage Humidity: 8% to 90% (non-condensing)
