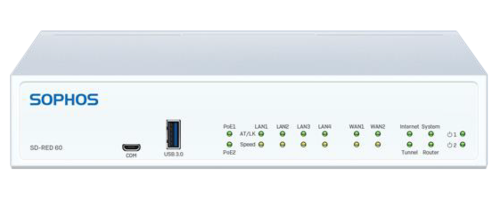

SD-RED 60 :: SD-RED Remote Ethernet Devices :: SD-WAN :: Sophos :: Networking

Rethink IT with Ubiquiti. Ubiquiti offers state-of-the-art networking, security, and communication solutions that help you deliver the highest user experience. UniFi switches help you connect and process traffic across all your devices. Each switch is designed to optimize networks no matter the environment. Their range of Flex and Lite systems offer a wide range of bandwidth and PoE capabilities. Their selection of UniFi access points is designed to meet precise user needs and optimize performance.

As a trusted Sophos reseller, ServerMonkey offers the SD-RED 60 126competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

RED appliance	SD-RED 20	SD-RED 60
Capacity
Product support added	SFOS 17.5 MR 11, SFOS 18.0 MR 1, UTM 9.7 MR 3
Maximum throughput	250 Mbps	850 Mbps
Physical interfaces
LAN interface	4 x 10/100/1000 Base-TX (1 GbE Copper)
WAN interfaces	1 x 10/100/1000 Base-TX (shared with SFP)	2 x 10/100/1000 Base-TX (WAN1 shared port with SFP)
SFP interfaces	1x SFP Fiber (shared port with WAN)	1x SFP Fiber (shared port with WAN1)
Power-over ethernet ports	None	2 PoE Ports (total power 30W)
USB ports	2 x USB 3.0 (front and rear)
COM ports	1 x Micro-USB
Optional Connectivity
Modular Bay	1 (for use with optional Wi-Fi OR 4G/LTE Card)
Optional Wi-Fi Module	802.11 a/b/g/n/ac Wave 1 (Wi-Fi 5) dual-band capable 2x2 MIMO 2 antennas
Optional 3G/4G LTE Module	MC7430/MC7455 Sierra Wireless Card
Optional VDSL Modem	Optional SFP Modem (support in an upcoming release)
Physical specifications
Dimensions (W x H x D)	225 x 44 x 150 (whd) mm 8.86 x 1.73 x 5.91 (whd) inches	225 x 44 x 150 (whd) mm 8.86 x 1.73 x 5.91 (whd) inches
Weight	0.9 kg/1.8 kg (1.98 lbs/3.97 lbs) Unpacked/Packed	1.0 kg/2.2 kg (2.2 lbs/4.85 lbs) Unpacked/Packed
Power redundancy support	Yes, optional 2nd power supply	Yes, optional 2nd power supply
Power consumption	Idle: 6.1Watt/20.814 BTU Full Load: 22.6Watt/77.114 BTU	Idle: 11.88 Watt/40.536 BTU Full Load without PoE: 25.33 Watt/86.429 BTU Full Load with PoE: 62.48 Watt/213.190 BTU
Operating temperature (operational)	0°C to 40°C (32°F to 104°F)
Operating temperature (storage)	-20°C to 70°C (-4°F to 158°F)
Humidity	10-90% RH, non-condensing
Safety regulations
Certifications	CE, FCC Class B, IC, RCM, VCCI, CB, UL, CCC, KC, ANATEL
