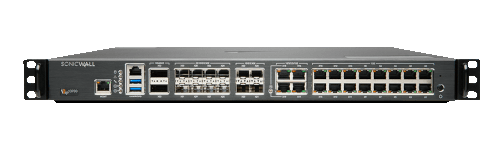

NSsp 13700 :: NSsp Series :: Firewall :: SonicWall :: Networking

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Sophos SonicWall, ServerMonkey offers the NSsp 13700 competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

FIREWALL GENERAL	NSSP 13700	NSSP 15700
Operating system	SonicOS 7	SonicOSX 7
Interfaces	2x100/40-GbE QSFP28, 8x25/10/5/2.5-GbE SFP28, 4x10/5/2.5-GbE SFP+, 4x10/5/2.5/1-GbE Cu, 16x1-GbE 2 USB 3.0, 1 Console, 1 Mgmt. port	6 x 100-GbE QSFP28, 4 x 40-GbE QSFP+, 16 x 10 GbE SFP+
Built-in Storage	2 x 480 GB SSD
Management	CLI, SSH, Web UI, REST APIs
SSO Users	100,000
Logging	Analyzer, Local Log, Syslog, IPFIX, NetFlow
FIREWALL/VPN PERFORMANCE	NSSP 13700	NSSP 15700
Firewall inspection throughput	105 Gbps
Threat Prevention throughput	60 Gbps	82 Gbps
Application inspection throughput	57 Gbps	86 Gbps
IPS throughput	76.5 Gbps
IMIX throughput	20 Gbps	28.5 Gbps
TLS/SSL inspection and decryption throughput (DPI SSL)	16.5 Gbps	21 Gbps
VPN throughput	29 Gbps	32 Gbps
Connections per second	170k	800k
Maximum connections (SPI)	14M	80M
Maximum connections (DPI)	12M	50M
Maximum connections (DPI SSL)	1.5M	3M
VPN	NSSP 13700	NSSP 15700
Site-to-site VPN tunnels	12,000	25,000
Encryption/authentication	DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange	Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN	RIP, OSPF, BGP
VPN features	Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported	Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Windows 10
NetExtender	Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE
Mobile Connect	Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome, Windows 8.1 (Embedded)
NETWORKING	NNSSP 13700	NNSSP 15700
Multi-Instance Firewall	N/A	Max Tenants per Hardware: 12
IP address assignment	Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes	1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols	BGP4, OSPF, RIPv1/v2, static routes, policy‑based routing	BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS	Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication	LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
VoIP	Full H.323v1-5, SIP
Standards	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications	FIPS 140-2 (with Suite B) Level 2, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
HARDWARE	NSSP 13700	NSSP 15700
Form factor	1U Rack Mountable	2U Rack Mountable
Fans	3 (removable)	10
Power supply	2x350W	Dual, Redundant, 1,200W
Maximum power consumption (W)	181.2	1065
Input power	100-240 VAC, 50-60 Hz	100-240 VAC, 50-60 Hz
Dimensions	43 x 32.5 x 4.5 (cm)	68.6 x 43.8 x 8.8 (cm)
Weight	9.1 Kg	26 Kg
WEEE weight	11 Kg	30.1 Kg
Shipping weight	14.9 Kg	37.3 Kg
Environment (Operating/Storage)	32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)	32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
Humidity	0-90% R.H non-condensing	10-95% non-condensing
