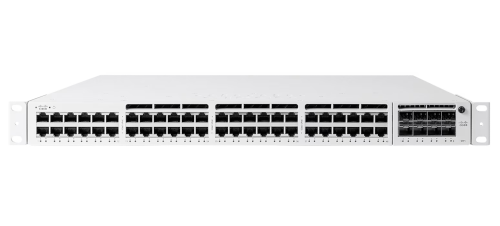

Meraki MS390 :: Stackable Access Switches :: Meraki Switches :: Meraki :: Networking

Meraki empowers your business with intuitive tools and smarter workspaces that deliver exceptional experiences. Meraki solutions combine industry-leading Wi-Fi access points with powerful switching, providing the best experience without compromising on security, speed, or user experience. ServerMonkey can help you build the right hybrid workforce solutions to advance your business to the next level.

As a trusted Meraki reseller, ServerMonkey offers the Meraki MS390 at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Category	Features
Highlights	Layer-3 40G or 10G modular uplink options on all models mGig support Dual Dedicated 120G Hardware Stacking Ports UPOE (60W per port) & IEEE 802.3bt type3 StackPower in a ring topology supporting up to 4 switches Netflow version 10 (IPFIX) and Encrypted Traffic Analytics Micro-Segmentation via Adaptive Policy (Security Group Tags)
Management	Managed via Cisco Meraki Dashboard Zero-touch remote provisioning (no staging needed) Basic configuration capability via local management page Detailed historical per-port and per-client usage statistics Operating System, device, and hostname fingerprinting Automatic firmware upgrades with scheduling control SNMP and SYSLOG support for integration with other network management solutions
Remote Diagnostics	Email, SMS and Mobile push notification alerts Ping, traceroute, cable testing, and link failure detection with alerting Remote packet capture Dynamic and interactive network discovery and topology Combined event and configuration change logs with instant search Netflow v10 Exporting
Stacking	Physically stack up to 8 switches with 480 Gbps of stacking bandwidth on all models Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration Faster convergence StackPower in a ring topology supporting up to 4 switches
Ethernet Switching Capabilities	802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) 802.1Q VLAN and trunking support for up to 4,094 VLANs (1000 active VLANs with STP enabled) Single Instance of 802.1s Multiple Spanning Tree Protocol (interoperable with RSTP, STP, PVST, RPVST) STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD Broadcast storm control 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches Port mirroring IGMP snooping for multicast filtering MAC Forwarding Entries: 32K
Layer 3	Static routing, OSPFv2 Multicast routing (PIM-ASM) Warm Spare (VRRP) * DHCP Server, DHCP Relay
Security	Integrated multi-factor authentication for Dashboard management Role-based access control (RBAC) with granular device and configuration control Corporate wide password policy enforcement IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing Single-Host/Multi-Domain/Multi-Host/Multi Authentication Port security: Sticky MAC, MAC allow lists * DHCP snooping, detection and blocking, Dynamic ARP Inspection IPv4 and IPv6 ACLs Adaptive Policy
