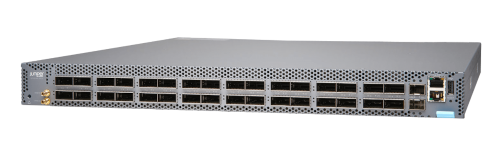

QFX5130 :: QFX Series :: Switches :: Juniper :: Networking

The Juniper brand of products features networking systems and hardware. No matter what networking or connectivity issues your organization may be facing, Juniper has many solutions that can be uniquely customized for your business. Can’t find the Juniper product you’re looking for? If you need something right away, contact our team today and we can help you find what you need.

As a trusted Juniper reseller, ServerMonkey offers the Juniper QFX5130 at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Specification	QFX5130-32CD and QFX51320E-32CD	QFX5130-48C
System throughput	Up to 12.8/25.6 Tbps (uni/ bidirectional)	Up to 8/16 Tbps (uni/bidirectional)
Forwarding capacity	5.3 billion packets per second	2.7 billion packets per second
Port density	32 ports of QSFP-DD 400GbE	48 ports of SFP56-DD and 8 port of QSFP-DD 400GbE
Max ports with breakout	64 x 200GbE + 2 x 10GbE or 128 x 100/50/25/10GbE + 2 x 10GbE or 32 x 40GbE + 2 x 10GbE	16 x 200GbE + 48 x 100/50/25/10GbE + 2 x 10 GbE or 72 x 100/50/25/10GbE + 2 x 10GbE or 74 x 10 GbE
Dimensions (W x H x D)	17.26 x 1.72 x 21.1 in. (43.8 x 4.3 x 53.59 cm)	17.28 x 1.72 x 20.5 inches
Rack units	1 U	1 U
Weight	24.5 lbs. (11.1 kg) with power supplies and fans installed	27 lbs. (12.24 kg) with power supplies and fans installed
Operating system	Junos OS Evolved	Junos OS Evolved
CPU	Intel Broadwell DE	Intel Ice Lake (4 core)
Memory	32GB (16GBx2) of DDR4	32GB (16GBx2) of DDR4
Storage	2x100GB	2x100GB
Power	Redundant (1+1) hot-pluggable 1600 W AC/DC power supplies	Redundant (1+1) hot-pluggable 1600 W AC/DC power supplies
Cooling	Ports-to-FRUs (AFO) and FRUs-to-ports (AFI) cooling 6 fan trays, redundancy (5+1) hot-pluggable fan modules	Ports-to-FRUs (AFO) and FRUs-to-ports (AFI) cooling 6 fan trays, redundancy (5+1) at rotor level, hot-pluggable fan modules
Total packet buffer	132 MB	82 MB
Warranty	Juniper standard one-year warranty	Juniper standard one-year warranty
AC Input	Voltage: 200 - 240Vac Current: 8A at 200 - 240Vac Frequency: 50-60Hz	Voltage: 100 - 127Vac / 200 - 240Vac Current: 12A at 100 - 127Vac, 9A at 200 - 240Vac Frequency: 50/60Hz
DC Input	Voltage: -48V - -60Vdc Current: 35Amax	Voltage: -48V - -60Vdc Current: 40Amax
