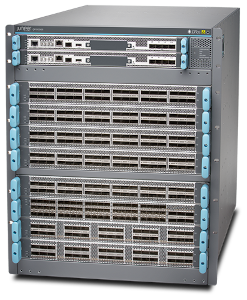

Juniper QFX10016

Dimensions

(W x H x D):

17.4 x 22.55 x 32 in

(44.2 x 57.3 x 81.3 cm)

17.4 x 36.65 x 35 in

(44.2 x 93 x 88.9 cm)

Weight:

Base configuration

Redundant configuration

Fully loaded chassis

280 lbs (127 kg)

322 lbs (146 kg)

493 lbs (224 kg)

491 lbs (223 kg)

596 lbs (270 kg)

938 lbs (425 kg)

• Midplane-less orthogonal interconnect architecture
• Separate dedicated data, control, and management planes
• Secure, modular architecture that isolates faults
• Transparent failover and network recovery

• Primary and backup CBs (1+1 redundancy)
• Intel Quad Core 2.5GHz CPU
• 32 gigabytes SDRAM
• 50 gigabytes onboard SSD
• Pluggable solid-state drive (SSD)
• USB 2.0 storage interface
• Four SFP/SFP+ MACsec-capable ports
• Fiber (SFP) or 10/100/1000BASE-T (RJ-45) Ethernet management port
• One console port

• Up to 86.4 Tbps raw fabric capacity
• Up to 7.2 Tbps (full duplex) per slot usable fabric capacity
• 5+1 fabric redundancy

• Up to 172.8 Tbps raw fabric capacity
• Up to 7.2 Tbps (full duplex) per slot usable fabric capacity
• 5+1 fabric redundancy

Holds up to six power supplies:

• -40 to -72 VDC
• 200 to 240 VAC

Holds up to ten power supplies:

• -40 to -72 VDC
• 200 to 240 VAC

• Front-to-back airflow
• Dual hot-swappable fan trays with redundant fans

• As low as 2.5 microseconds within a PFE
• As low as 5.5 microseconds across PFEs
