EX4650 :: EX Series :: Switches :: Juniper :: Networking

The Juniper brand of products features networking systems and hardware. No matter what networking or connectivity issues your organization may be facing, Juniper has many solutions that can be uniquely customized for your business. Can’t find the Juniper product you’re looking for? If you need something right away, contact our team today and we can help you find what you need.

As a trusted Juniper reseller, ServerMonkey offers the Juniper EX4650 at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Switching Capacity	2 Tbps (unidirectional)/4 Tbps (bidirectional)
Layer 2/Layer 3 Throughput	2976 Mpps (wire speed)
Weight	23.7 lb (10.75 kg)
Dimensions (HxWxD)	1.72 x 17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm)
Switching Mode	Cut-through and store-and-forward
Airflow	Front-to-back (airflow out) for hot aisle deployment; Back-to-front (airflow in) for cold aisle deployment
Power Consumption	Max load 450 W; typical load 260 W; idle load 160 W
Interface Options	1GbE SFP: 48 (48 copper 1GbE) 10GbE SFP+: 48/80 (with breakout cable) 25GbE SFP28: 48/80 (with breakout cable) 40GbE QSFP+: 8 100GbE QSFP28: 8 1 USB 2.0 port 1 RS-232 console port 2 management ports: 2 x RJ-45 ports
Virtual Chassis	100GbE and 40GbE as Virtual Chassis port Virtual Chassis Routing Engine (RE) election Virtual Chassis pre-provisioning (plug-and-play) Auto-LAG formation of Virtual Chassis ports FCoE transit across Virtual Chassis members QoS on Virtual Chassis ports Local designated forwarding Graceful RE switchover (GRES) Nonstop routing (NSR) Nonstop bridging (NSB) Monitor distributed aggregate interface Control plane protection for virtual RE
Rack Installation Kit	Versatile four-post mounting options for 19-in server rack or datacom rack
Airflow	Redundant (N+1) and hot-pluggable fan modules for front-to-back and back-to-front airflow; Redundant variable-speed fans to reduce power draw
Power Supply and Fan Modules	Dual redundant (1+1) and hot-pluggable 650 W AC/DC power supplies; 110-240 V single phase AC power; -44 to -72 V DC power supply; Redundant (4+1) and hot-pluggable fan modules for front-to-back or back-to-front airflow
Performance Scale (Unidimensional)	Layer 2 MAC addresses per system: 288,000 VLAN IDs: 4093 Number of LAGs: 80 Number of ports per LAG: 64 Multiple Spanning Tree Protocol (MSTP) instances: 64 VLAN Spanning Tree Protocol (VSTP) instances: 509 Jumbo frame: 9216 bytes Ingress filters: 1500 Egress filters: 512 Layer 3 IPv4 unicast prefixes: 360,000 IPv4 unicast routes: 208,000 IPv4 multicast routes: 104,000 ECMP paths: 64 IPv6 unicast prefixes: 170,000 IPv6 unicast routes: 104,000 IPv6 multicast routes: 52,000 ARP entries: 64,000 Traffic Mirroring Mirroring destination ports per switch: 4 Maximum number of mirroring sessions: 4 Mirroring destination VLANs per switch: 4

CONTACT US TO LEARN MORE

ABOUT Juniper EX4650

Fill out the form and our team will get back to you.

1-855-432-8918
[email protected]
2130 W Sam Houston Pkwy N
Houston, TX 77043

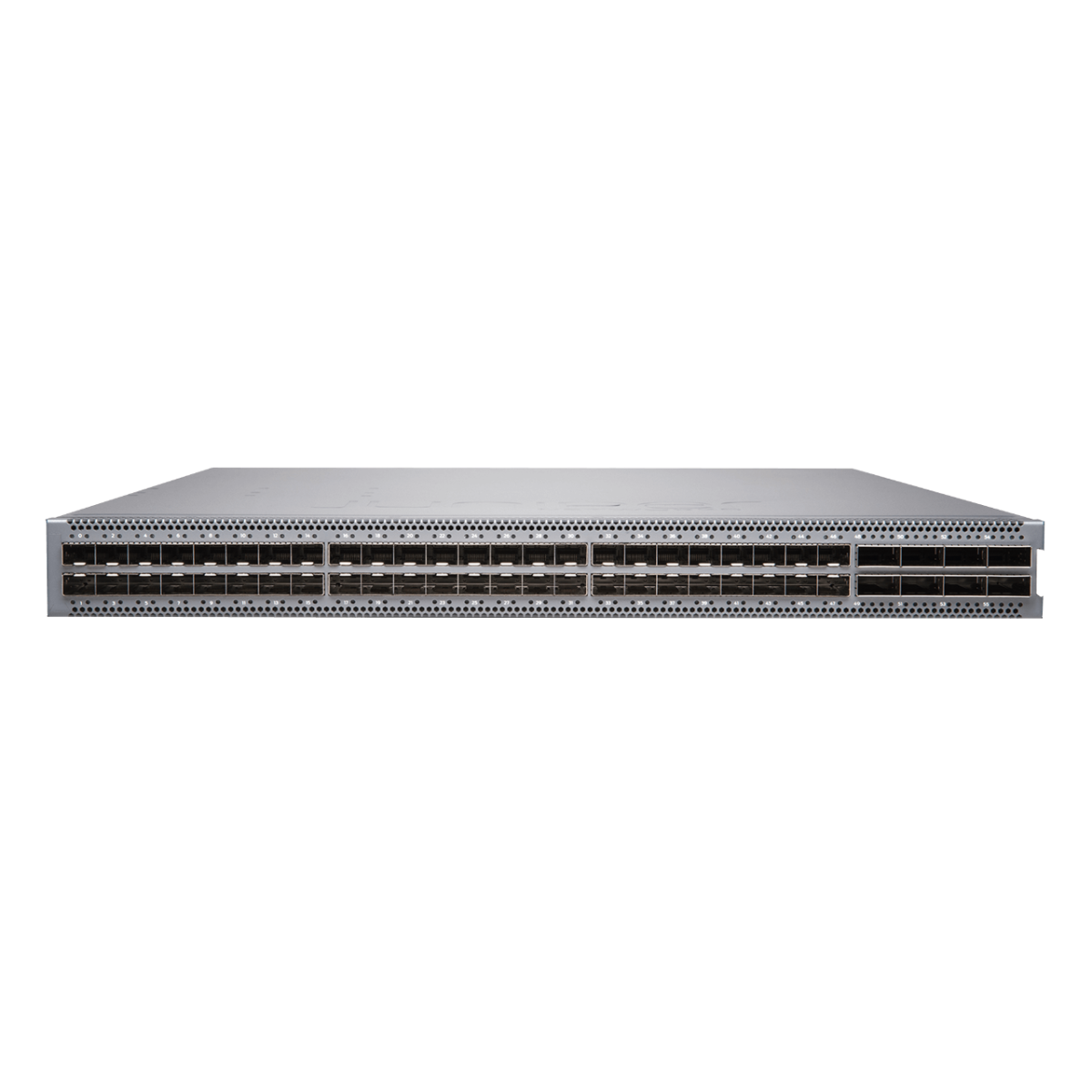

Juniper EX4650
