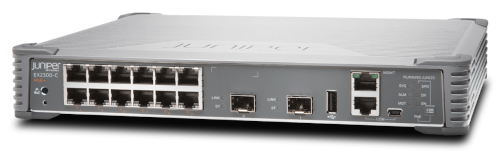

As a trusted Juniper reseller, ServerMonkey offers the Juniper EX2300-C at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Hardware Specifications
Switching Engine Model	Store and forward
DRAM	2 GB with ECC
Flash	2 GB
CPU	1.25 GHz ARM CPU
GbE port density per system	14 (12 access ports + 2 uplink ports)
Physical Layer	Physical port redundancy: Redundant trunk group (RTG) Cable diagnostics for detecting cable breaks and shorts Auto medium-dependent interface/medium-dependent interface crossover (MDI/MDIX) support Port speed downshift/setting maximum advertised speed on 10/100/1000BASE-T ports Digital optical monitoring for optical ports
Packet-Switching Capacities (Maximum with 64-Byte Packets)	32 Gbps (unidirectional)/64 Gbps (bidirectional)

Software Specifications
Layer 2/Layer 3 Throughput (Mpps)	47 Mpps (wire speed)
Layer 2 Features	Maximum MAC addresses in hardware: 16,000 Jumbo frames: 9216 bytes Number of VLANs supported: 4093 (2044 active VLAN) Range of possible VLAN IDs: 1-4094 Port-based VLAN MAC-based VLAN Voice VLAN Layer 2 Protocol Tunneling (L2PT) IEEE 802.1ak: Multiple VLAN Registration Protocol (MVRP) Compatible with Per-VLAN Spanning Tree Plus (PVST+) RVI (Routed VLAN Interface) IEEE 802.1AB: Link Layer Discovery Protocol (LLDP) LLDP-MED with VoIP integration IEEE 802.1ad Q-in-Q tunneling IEEE 802.1br Bridge Port Extension IEEE 802.1D: Spanning Tree Protocol IEEE 802.1p: CoS Prioritization IEEE 802.1Q: VLAN Tagging IEEE 802.1Q-in-Q: VLAN Stacking IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP) Number of MST instances supported: 64 IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP) IEEE 802.1X: Port Access Control IEEE 802.3: 10BASE-T IEEE 802.3u: 100BASE-TX IEEE 802.3ab: 1000BASE-T IEEE 802.3z: 1000BASE-X IEEE 802.3af: PoE IEEE 802.3at: PoE+ IEEE 802.3ad: Link Aggregation Control Protocol (LACP) IEEE 802.3x: Pause Frames/Flow Control

Software Specifications

Layer 2/Layer 3 Throughput (Mpps)

47 Mpps (wire speed)

Layer 2 Features

Maximum MAC addresses in hardware: 16,000
Jumbo frames: 9216 bytes
Number of VLANs supported: 4093 (2044 active VLAN)
Range of possible VLAN IDs: 1-4094
Port-based VLAN
MAC-based VLAN
Voice VLAN
Layer 2 Protocol Tunneling (L2PT)
IEEE 802.1ak: Multiple VLAN Registration Protocol (MVRP)
Compatible with Per-VLAN Spanning Tree Plus (PVST+)
RVI (Routed VLAN Interface)
IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
LLDP-MED with VoIP integration
IEEE 802.1ad Q-in-Q tunneling
IEEE 802.1br Bridge Port Extension
IEEE 802.1D: Spanning Tree Protocol
IEEE 802.1p: CoS Prioritization
IEEE 802.1Q: VLAN Tagging
IEEE 802.1Q-in-Q: VLAN Stacking
IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP)
Number of MST instances supported: 64
IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1X: Port Access Control
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
IEEE 802.3ab: 1000BASE-T
IEEE 802.3z: 1000BASE-X
IEEE 802.3af: PoE
IEEE 802.3at: PoE+
IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
IEEE 802.3x: Pause Frames/Flow Control

Layer 3 Features: IPv4
Maximum number of ARP entries	1,500
Maximum number of IPv4 unicast routes in hardware	512 prefixes; 4,096 host routes
Maximum number of IPv4 multicast routes in hardware	2,048 groups; 2,048 multicast routes
Routing Protocols	RIP v1/v2, OSPF v1/v2
Other Features	Static routing Routing policy Bidirectional Forwarding Detection (BFD) with slow timers (> 3 sec) IP directed broadcast

Layer 3 Features: IPv6
Maximum number of Neighbor Discovery (ND) entries	1,500
Maximum number of IPv6 unicast routes in hardware	512 prefixes; 2,048 host routes
Maximum number of IPv6 multicast routes in hardware	1,024 groups; 1,024 multicast routes
Other Features	Neighbor discovery System logging Telnet SSH SNMP Network Time Protocol (NTP) Domain Name System (DNS) Static routing Routing protocols: RIPng, OSPF v3

Access Control Lists (ACLs)
ACL Types	Port-based ACL (PACL)—256 ingress; 256 egress VLAN-based ACL (VACL)—256 ingress; 256 egress Router-based ACL (RACL)—256 ingress; 512 egress
ACL entries (ACE) in hardware per system	2,000
Other ACL Features	ACL counter for denied packets ACL counter for permitted packets Ability to add/remove/change ACL entries in middle of list (ACL editing) L2-L4 ACL
