The Juniper brand of products features networking systems and hardware. No matter what networking or connectivity issues your organization may be facing, Juniper has many solutions that can be uniquely customized for your business. Can’t find the Juniper product you’re looking for? If you need something right away, contact our team today and we can help you find what you need.

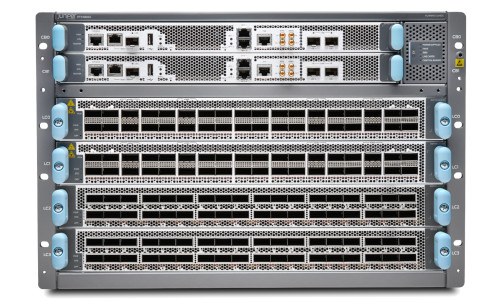

As a trusted Juniper reseller, ServerMonkey offers the Juniper PTX10004 at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Specification	PTX10004	PTX10008	PTX10016
System Capacity	57.6 Tbps to 115.2 Tbps (w/ SF5 fabric)	115.2 Tbps to 230.4 Tbps (w/ SF5 fabric)	230.4 Tbps to 460.8 Tbps (w/ SF5 fabric)
Slot Capacity	4.8 Tbps - 14.4 Tbps - 28.8 Tbps	4.8 Tbps - 14.4 Tbps - 28.8 Tbps	4.8 Tbps - 14.4 Tbps - 28.8 Tbps
Chassis per Rack	6	3	2
Dimensions (W x H x D)	17.4 x 12.2 x 35 in. (44.2 x 33 x 88.9 cm); 42.2 in. (107.7 cm) depth with EMI door	17.4 x 22.55 x 32 in. (44.2 x 57.76 x 81.28 cm); 39.37 in. (100 cm) depth with EMI door	17.4 x 36.65 x 35 in. (44.2 x 93.09 x 88.90 cm); 42.40 in. (107.7 cm) depth with EMI door
Maximum Weight	271.2 lb (116.7 kg)	421 lb (191 kg)	706 lb (320 kg)
Mounting	Front rack mount	Front rack mount	Front rack mount
Power System Rating (Max)	200-240 VAC/50-60 Hz, -48 VDC @ 60 A, HVDC 190-410VDC @ 30/20 A
Operating Temperature	32° to 104° F (0° to 40° C) at 6000 ft altitude; 32° to 115° F (0° to 46° C) at sea level
Humidity	Relative humidity operating: 5 to 90% (noncondensing)
Altitude	No performance degradation to 6562 feet (2000 meters)
