The ACX7024, part of the ACX7000 family, provides industry-leading access performance in an Industrial-rated (I-temp), dense, and compact 1 U footprint. Ideal for service providers, enterprises, and wholesale services, it helps operators deliver differentiated customer experiences.

• 1 U, Industrial-rated (I-temp) platform with 9.44 in (24 cm) depth
• CPU 4C, 16GB RAM
• 360 Gbps throughput
• 24 1GbE/10GbE/25GbE ports, and 4 100GbE ports

The ACX7024X, part of the ACX7000 family, provides industry-leading access performance in a Commercial-rated (C-temp), dense, and compact 1 U footprint. Ideal for service providers, enterprises, and wholesale services, it helps operators deliver differentiated customer experiences.

• 1 U, Commercial-rated (C-Temp) platform with 9.44 in (24 cm) depth
• CPU 8C, 64GB RAM
• 360 Gbps throughput
• 24 1GbE/10GbE/25GbE ports, and 4 100GbE ports

The ACX7332, part of the ACX7300 line, offers fixed plus modularity for scale in an extended-temperature-rated (E-Temp), redundant, dense, and compact footprint including advanced timing and MACsec support. Port speeds from 1GbE to 400GbE make it Ideal for many use cases.

• 3 U, extended temperature-rated (E-Temp) platform with 11.42 in (29 cm) depth
• 2.4 Tbps throughput and integrated eTCAM technology delivering enhanced scale and low latency performance
• Fixed ports: 32 1GbE/10GbE/25GbE ports, 8 100GbE ports
• Three I/O bays supporting optional I/O modules: • 16-port, multi-rate (SFP56), • 4-Port (QSFP28) and 2-Ports (QSFP56)

The ACX7348, part of the ACX7300 line, offers fixed plus modularity for scale in an Industrial temperature-rated (I-Temp), redundant, dense, and compact footprint including advanced timing and MACsec support. Port speeds from 1GbE to 400GbE make it Ideal for many use cases.

• 3 U, industrial temperature-rated (I-Temp) platform with 11.42 in (29 cm) depth
• 2.4 Tbps throughput
• Fixed ports: 48 1GbE/10GbE/25GbE ports, 8 100GbE ports
• Three I/O bays supporting optional I/O modules: • 16-port, multi-rate (SFP56), • 4-Port (QSFP28) & 2-Ports (QSFP56)

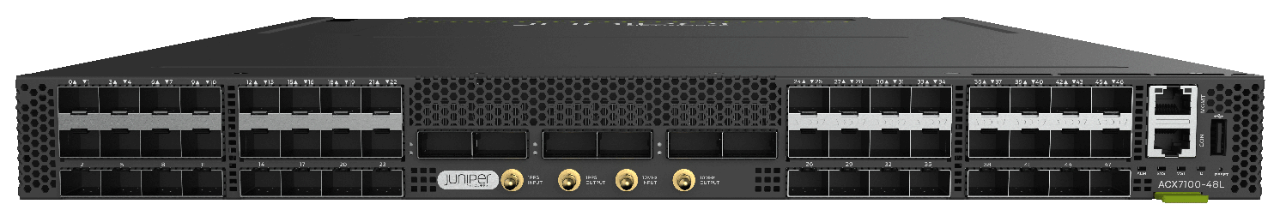

The ACX7100-32C, part of the ACX7100 line, is a high-capacity, high-density router that provides up to 4.8 Tbps of throughput and 100GbE to 400GbE services in a 1 U footprint. Ideal for service providers, wholesale, data centers, and enterprises.

• 1 U, with 23.42 in (59.49 cm) depth
• 4.8 Tbps throughput
• 32 40GbE/100GbE, 4 400GbE

The ACX7100-48L, part of the ACX7100 line, is a high-capacity, high-density router that provides up to 4.8 Tbps of throughput and 10GbE to 400GbE services in a 1 U footprint. Ideal for service providers, wholesale, data centers, and enterprises.

• 1 U, with 23.42 in (59.49 cm) depth
• 4.8 Tbps throughput
• 48 10GbE/25GbE/50GbE, 6 400GbE ports

The ACX7509 is a high availability (HA), power-efficient, and modular 5 U platform. Ideal for service providers, data centers, and large enterprises, it helps network operators deliver differentiated customer experiences.

• 5 U, with 23.62 in (60 cm) depth
• 4.8 Tbps throughput, 9-slots (supporting 8-slots in initial release)
• Module options include:
  • 20-port: 1GbE/10GbE/25GbE/50GbE
  • 4-port: 200GbE/400GbE
  • 16-port: 40GbE/100GbE ports
