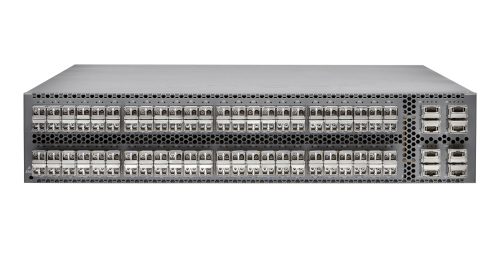

ACX5000 :: ACX Series :: Routers :: Juniper :: Networking

The Juniper brand of products features networking systems and hardware. No matter what networking or connectivity issues your organization may be facing, Juniper has many solutions that can be uniquely customized for your business. Can’t find the Juniper product you’re looking for? If you need something right away, contact our team today and we can help you find what you need.

As a trusted Juniper reseller, ServerMonkey offers the Juniper ACX5000 at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Specifications
System throughput	Up to 1.44 Tbps (ACX5048) Up to 2.56 Tbps (ACX5096)
Interface support	ACX5048: 48 SFP/24 copper 1GbE; 48 SFP+ 10GbE (72 w/breakout cable); 6 QSFP+ 40GbE (each can be configured as 4 x 10GbE); 3 management (1 RJ-45, 2 SFP) ACX5096: 96 SFP/48 copper 1GbE; 96 SFP+ 10GbE (104 w/breakout cable); 8 QSFP+ 40GbE (2 can be configured as 4 x 10GbE); 2 management (1 RJ-45, 1 SFP)
Dimensions (W x H x D)	ACX5048: 17.36 x 1.72 x 20.48 in (44.09 x 4.37 x 52.02 cm) ACX5096: 17.36 x 3.46 x 22.44 in (44.09 x 8.8 x 57 cm)
Maximum weight	ACX5048: 21.8 lb (9.9 kg) ACX5096: 32.5 lb (14.74 kg)
Power (DC)	-36 to -72 V DC
Power (AC)	110 to 240 V single phase
Power draw	ACX5048: ~350 W (with optical SFPs) ACX5096: ~550 W (with optical SFPs)
Humidity	95% RH noncondensing
Noise level	0 dB (acoustic noise)
Operating temperature	32° to 104° F (0° to 40° C)
