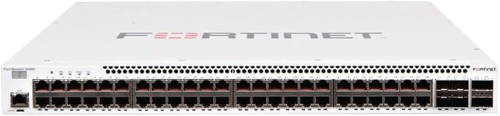

FS-548D :: 400 and 500 Series :: Secure Ethernet Switches :: Fortinet :: Networking

Fortinet - named a leader in the 2022 Gartner Magic Quadrant for SD-WAN - offers a security-driven networking approach that defends today's highly-dynamic environments. FortiGate NGFW is designed to meet the most demanding threat protection performance requirements and is available in a variety of models, from entry-level hardware to ultra-high-end appliances. Their Secure SD-Wan systems enable the highest application experience and help monitor other FortiGate appliances. Lastly, their secure ethernet systems converge networking and security into a simple-to-manage architecture.

As a trusted Fortinet reseller, ServerMonkey offers the FortiSwitch FS-548D at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Hardware Specifications	FortiSwitch 524D	FortiSwitch 524D-FPOE	FortiSwitch 548D	FortiSwitch 548D-FPOE
Hardware Specifications
Total Network Interfaces	24 GE/RJ45 ports, 4x 10 GE SFP+ ports and 2x 40 GE QSFP Note: SFP+ ports are compatible with 1G SFP	24 GE/RJ45 ports, 4x 10 GE SFP+ ports and 2x 40 GE QSFP Note: SFP+ ports are compatible with 1G SFP	48x GE/RJ45 ports, 4x 10 GE SFP+ ports and 2x 40 GE QSFP Note: SFP+ ports are compatible with 1G SFP	48x GE/RJ45 ports, 4x 10 GE SFP+ ports and 2x 40 GE QSFP Note: SFP+ ports are compatible with 1G SFP
Dedicated Management 10/100/1000 Ports	1	1	1	1
RJ-45 Serial Console Port	1	1	1	1
Form Factor	1 RU Rack Mount	1 RU Rack Mount	1 RU Rack Mount	1 RU Rack Mount
Power over Ethernet (PoE) Ports	N/A	24 (802.3af/at)	N/A	48 (802.3af/at)
PoE Power Budget	N/A	400 W	N/A	750 W
Mean Time Between Failures	> 10 years	> 10 years	> 10 years	> 10 years
System Specifications
Switching Capacity (Duplex)	288 Gbps	288 Gbps	336 Gbps	336 Gbps
Packets Per Second (Duplex)	428 Mpps	428 Mpps	512 Mpps	512 Mpps
MAC Address Storage	96K	96K	96K	96K
Network Latency	< 2µs	< 2µs	< 2µs	< 2µs
VLANs Supported	4K	4K	4K	4K
Link Aggregation Group Size	24	24	48	48
Total Link Aggregation Groups	Up to number of ports	Up to number of ports	Up to number of ports	Up to number of ports
Packet Buffers	4 MB	4 MB	4 MB	4 MB
DRAM	2 GB	2 GB	2 GB	2 GB
FLASH	128 MB	128 MB	128 MB	128 MB
Dimensions
Height x Depth x Width (inches)	1.75 x 13.8 x 17.3	1.75 x 13.8 x 17.3	1.75 x 13.8 x 17.3	1.75 x 13.8 x 17.3
Height x Depth x Width (mm)	44 x 350 x 439	44 x 350 x 439	44 x 350 x 439	44 x 350 x 439
Weight	13.6 lbs (6.2 kg)	15.74 lbs (7.14 kg)	14.1 lbs (6.4 kg)	15.74 lbs (7.14 kg)
Environment
Power Required	100–240V AC, 50–60 Hz	100–240V AC, 50–60 Hz	100–240V AC, 50–60 Hz	100–240V AC, 50–60 Hz
Power Supply	150 W AC PSU	600 W AC PSU	150 W AC PSU	920 W AC PSU
Power Consumption (Average / Maximum)	73 W / 75 W	570 W / 579 W (full POE load)	74 W / 77 W	925 W / 961 W (full POE load)
Heat Dissipation	247 BTU/h	296 BTU/h (full POE loading)	252 BTU/h	318 BTU/h (full POE loading)
Operating Temperature	32–113°F (0–45°C)	32–113°F (0–45°C)	32–113°F (0–45°C)	32–113°F (0–45°C)
Storage Temperature	-40–158°F (-40–70°C)	-40–158°F (-40–70°C)	-40–158°F (-40–70°C)	-40–158°F (-40–70°C)
Humidity	5–95% non-condensing	5–95% non-condensing	5–95% non-condensing	5–95% non-condensing
Certification and Compliance
	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
Warranty
Fortinet Warranty	Limited lifetime* warranty on all models
