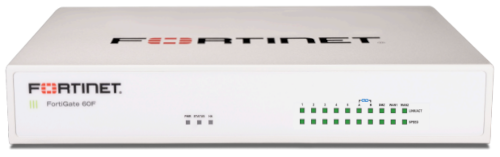

FortiGate 60F

Hardware Specifications

GE RJ45 WAN / DMZ Ports

2 / 1

2 / 1

2 / 1

2 / 1

GE RJ45 Internal Ports

5

5

5

5

GE RJ45 FortiLink Ports (Default)

2

2

2

2

Wireless Interface

–

–

Single Radio (2.4GHz/5GHz), 802.11 a/b/g/n/ac-W2

Single Radio (2.4GHz/5GHz), 802.11 a/b/g/n/ac-W2

USB Ports

1

1

1

1

Console (RJ45)

1

1

1

1

Internal Storage

–

1 x 128 GB SSD

–

1 x 128 GB SSD

System Performance — Enterprise Traffic Mix

IPS Throughput²

1.4 Gbps

NGFW Throughput^{2, 4}

1 Gbps

Threat Protection Throughput^{2, 5}

700 Mbps

System Performance

Firewall Throughput (1518 / 512 / 64 byte UDP packets)

10/10/6 Gbps

Firewall Latency (64 byte UDP packets)

3.3 μs

Firewall Throughput (Packets Per Second)

9 Mpps

Concurrent Sessions (TCP)

700,000

New Sessions/Second (TCP)

35,000

Firewall Policies

5,000

IPsec VPN Throughput (512 byte)¹

6.5 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

200

Client-to-Gateway IPsec VPN Tunnels

500

SSL-VPN Throughput

900 Mbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

200

SSL Inspection Throughput (IPS, avg. HTTPS)³

630 Mbps

SSL Inspection CPS (IPS, avg. HTTPS)³

400

SSL Inspection Concurrent Session (IPS, avg. HTTPS)³

55,000

Application Control Throughput (HTTP 64K)²

1.8 Gbps

CAPWAP Throughput (HTTP 64K)

8 Gbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of FortiSwitches Supported

16

Maximum Number of FortiAPs (Total / Tunnel Mode)

64 / 32

Maximum Number of FortiTokens

500

High Availability Configurations

Active-Active, Active-Passive, Clustering

Dimensions

Height x Width x Length (inches)

1.5 x 8.5 x 6.3

Height x Width x Length (mm)

38.5 x 216 x 160 mm

Weight

2.23 lbs (1.01 kg)

Form Factor

Desktop

Radio Specifications

Multiple User (MU) MIMO

–

–

3x3

Maximum Wi-Fi Speeds

–

–

1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz

Maximum Tx Power

–

–

20 dBm

Antenna Gain

–

–

3.5 dBi @ 5 GHz, 5 dBi @ 2.4 GHz

Power Rating

12Vdc, 3A
