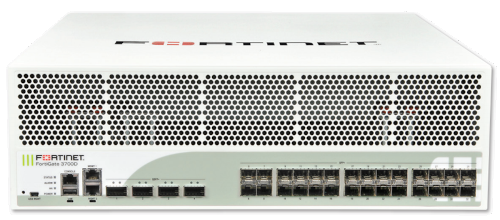

FortiGate 3700D

Fortinet - named a leader in the 2022 Gartner Magic Quadrant for SD-WAN - offers a security-driven networking approach that defends today's highly-dynamic environments. FortiGate NGFW is designed to meet the most demanding threat protection performance requirements and is available in a variety of models, from entry-level hardware to ultra-high-end appliances. Their Secure SD-Wan systems enable the highest application experience and help monitor other FortiGate appliances. Lastly, their secure ethernet systems converge networking and security into a simple-to-manage architecture.

As a trusted Fortinet reseller, ServerMonkey offers the FortiGate 3700D at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

FortiGate 3700D Specifications
Interfaces and Modules
40 GE QSFP Slots	4
10 GE SFP+ / GE SFP Slots	20
10 GE SFP+ Slots (Ultra-low Latency)	8
GE RJ45 Management Ports	2
USB Ports (Client / Server)	1 / 1
Console Port	1
Internal Storage	960 GB
Included Transceivers	2x SFP+ (SR 10GE)
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP)	160 / 160 / 110 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)	160 / 160 / 110 Gbps
Firewall Latency (64 byte, UDP)	2 µs
Firewall Throughput (Packet per Second)	165 Mpps
Concurrent Sessions (TCP)	50 Million
New Sessions/Second (TCP)	400,000
Firewall Policies	100,000
IPsec VPN Throughput (512 byte)	100 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40,000
Client-to-Gateway IPsec VPN Tunnels	64,000
SSL-VPN Throughput	10 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)	30,000
IPS Throughput (HTTP / Enterprise Mix) ¹	57 / 22 Gbps
SSL Inspection Throughput ²	24 Gbps
Application Control Throughput ³	36 Gbps
NGFW Throughput ⁴	14 Gbps
Threat Protection Throughput ⁵	12 Gbps
CAPWAP Throughput ⁶	22 Gbps
Virtual Domains (Default / Maximum)	10 / 500
Maximum Number of FortiAPs (Total / Tunnel Mode)	4,096 / 1,024
Maximum Number of FortiTokens	5,000
Maximum Number of Registered FortiClients	20,000
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	5.25 x 17.2 x 22.8
Height x Width x Length (mm)	133 x 437 x 579
Weight	46.9 lbs (21.3 kg)
Form Factor	3 RU
AC Power Supply	100–240V AC, 50–60 Hz
DC Power Supply (FG-3700D-DC)	48–72V DC
Power Consumption (Average / Maximum)	725 / 870 W
Heat Dissipation	2,970 BTU/h
Redundant Power Supplies	Yes, Hot Swappable
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	20–90% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus,
	SSL-VPN
