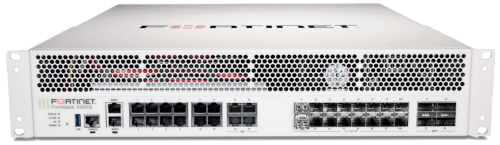

FortiGate 3300E

Fortinet - named a leader in the 2022 Gartner Magic Quadrant for SD-WAN - offers a security-driven networking approach that defends today's highly-dynamic environments. FortiGate NGFW is designed to meet the most demanding threat protection performance requirements and is available in a variety of models, from entry-level hardware to ultra-high-end appliances. Their Secure SD-Wan systems enable the highest application experience and help monitor other FortiGate appliances. Lastly, their secure ethernet systems converge networking and security into a simple-to-manage architecture.

As a trusted Fortinet reseller, ServerMonkey offers the FortiGate 3300E at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Feature/Model	FG-3300E	FG-3301E
Interfaces and Modules
40 GE QSFP+ Slots	4	4
25 GE SFP28 / 10 GE SFP+ HA Slots	2	2
25 GE SFP28 / 10 GE SFP+ Slots	14	14
10 GE RJ45 Ports	4	4
GE RJ45 Ports	12	12
GE RJ45 Management/HA Ports	2	2
USB Ports (Client / Server)	1 / 1	1 / 1
Console Port	1	1
Internal Storage	-	2x 1 TB SSD
Included Transceivers	2x SFP+ (SR 10 GE)	2x SFP+ (SR 10 GE)
System Performance — Enterprise Traffic Mix
IPS Throughput	27 Gbps	27 Gbps
NGFW Throughput	23 Gbps	23 Gbps
Threat Protection Throughput	17 Gbps	17 Gbps
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP)	160 / 158 / 100 Gbps	160 / 158 / 100 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)	160 / 158 / 100 Gbps	160 / 158 / 100 Gbps
Firewall Latency (64 byte, UDP)	4 µs	4 µs
Firewall Throughput (Packet per Second)	150 Mpps	150 Mpps
Concurrent Sessions (TCP)	50 Million	50 Million
New Sessions/Second (TCP)	460,000	460,000
Firewall Policies	200,000	200,000
IPsec VPN Throughput (512 byte)	98 Gbps	98 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40,000	40,000
Client-to-Gateway IPsec VPN Tunnels	200,000	200,000
SSL-VPN Throughput	10 Gbps	10 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	30,000	30,000
SSL Inspection Throughput (IPS, avg. HTTPS)	21 Gbps	21 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	11,000	11,000
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	4 Million	4 Million
Application Control Throughput (HTTP 64K)	70 Gbps	70 Gbps
CAPWAP Throughput (HTTP 64K)	55 Gbps	55 Gbps
Virtual Domains (Default / Maximum)	10 / 500	10 / 500
Maximum Number of FortiSwitches Supported	256	256
Maximum Number of FortiAPs (Total / Tunnel Mode)	4,096 / 2,048	4,096 / 2,048
Maximum Number of FortiTokens	20,000	20,000
High Availability Configurations	Active / Active, Active / Passive, Clustering	Active / Active, Active / Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	3.5 x 17.44 x 21.89	3.5 x 17.44 x 21.89
Height x Width x Length (mm)	88.9 x 443 x 556	88.9 x 443 x 556
Weight	42.9 lbs (19.5 kg)	44.3 lbs (20.1 kg)
Form Factor (supports EIA/non-EIA standards)	Rack Mount, 2 RU	Rack Mount, 2 RU
AC Power Supply	100–240V AC, 60–50 Hz	100–240V AC, 60–50 Hz
Power Consumption (Average / Maximum)	492 W / 610 W	496 W / 617 W
Maximum Current	12@100V, 9A@240V	12@100V, 9A@240V
Heat Dissipation	2097 BTU/h	2105 BTU/h
Redundant Power Supplies	Yes, Hot Swappable	Yes, Hot Swappable
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing	10–90% non-condensing
Noise Level	70 dBA	70 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
