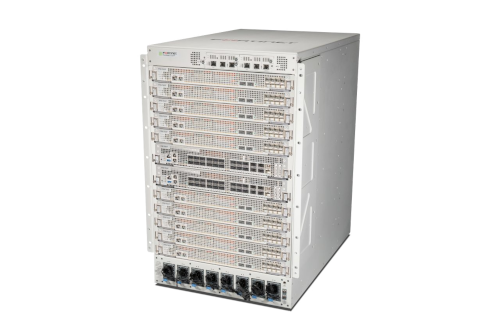

FortiGate 7121F

Fortinet - named a leader in the 2022 Gartner Magic Quadrant for SD-WAN - offers a security-driven networking approach that defends today's highly-dynamic environments. FortiGate NGFW is designed to meet the most demanding threat protection performance requirements and is available in a variety of models, from entry-level hardware to ultra-high-end appliances. Their Secure SD-Wan systems enable the highest application experience and help monitor other FortiGate appliances. Lastly, their secure ethernet systems converge networking and security into a simple-to-manage architecture.

As a trusted Fortinet reseller, ServerMonkey offers the FortiGate 7121F at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Feature/Model	FG-7121F*	FG-7121F-DC	FG-7121F-2-DC
Interfaces and Modules
Hardware Accelerated 400 GE QSFP-DD / 100 GE QSFP28 / 40 GE QSFP+ Slots	24	24	24
Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots	36	36	36
Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Management/HA Slots	4	4	4
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ Slots	80	80	80
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ SFP Management/HA Slots	4	4	4
GE RJ45 Management Ports	4	4	4
USB Ports	2	2	2
Console Ports	14	14	14
Onboard Storage	4x 4 TB SSD	4x 4 TB SSD	4x 4 TB SSD
Included Transceivers	4x 10 GE SFP+ SR	4x 10 GE SFP+ SR	4x 10 GE SFP+ SR
System Performance - Enterprise Traffic Mix
IPS Throughput	675 Gbps	675 Gbps	675 Gbps
NGFW Throughput	550 Gbps	550 Gbps	550 Gbps
Threat Protection Throughput	520 Gbps	520 Gbps	520 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP packets)	1.89 / 1.88 / 1.129 Tbps	1.89 / 1.88 / 1.129 Tbps	1.89 / 1.88 / 1.129 Tbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP packets)	1.89 / 1.88 / 1.129 Tbps	1.89 / 1.88 / 1.129 Tbps	1.89 / 1.88 / 1.129 Tbps
Firewall Latency (64 byte, UDP)	7.50 μs	7.50 μs	7.50 μs
Firewall Throughput (Packet per Second)	1680 Mpps	1680 Mpps	1680 Mpps
Concurrent Sessions (TCP)	1 Billion	1 Billion	1 Billion
New Sessions/Sec (TCP)	9 Million	9 Million	9 Million
Firewall Policies	200,000	200,000	200,000
IPsec VPN Throughput (512 byte)	630 Gbps	630 Gbps	630 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40,000	40,000	40,000
Client-to-Gateway IPsec VPN Tunnels	260,000	260,000	260,000
SSL-VPN Throughput	13.7 Gbps	13.7 Gbps	13.7 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)	30,000	30,000	30,000
IPS Throughput (Enterprise Mix)	675 Gbps	675 Gbps	675 Gbps
SSL Inspection Throughput	540 Gbps	540 Gbps	540 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	480,000	480,000	480,000
SSL Inspection Concurrent Sessions (IPS, avg. HTTPS)	100 Million	100 Million	100 Million
Application Control Throughput	1.5 Tbps	1.5 Tbps	1.5 Tbps
NGFW Throughput	550 Gbps	550 Gbps	550 Gbps
Threat Protection Throughput	520 Gbps	520 Gbps	520 Gbps
CAPWAP Throughput	N.A.	N.A.	N.A.
Virtual Domains (Default / Maximum)	10 / 500	10 / 500	10 / 500
Maximum Number of FortiTokens	20,000	20,000	20,000
Maximum Number of FortiSwitches Supported	300	300	300
Maximum Number of FortiAPs (Total / Tunnel Mode)	N.A.	N.A.	N.A.
High Availability Configurations	Active-Active (FGSP), Active-Passive, Clustering	Active-Active (FGSP), Active-Passive, Clustering	Active-Active (FGSP), Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	28.63 x 17.33 x 26.6	28.63 x 17.33 x 26.6	28.63 x 17.33 x 26.6
Height x Width x Length (mm)	727.2 x 440 x 675.5	727.2 x 440 x 675.5	727.2 x 440 x 675.5
Weight (maximum)	447.36 lbs (203.1 kg)	447.36 lbs (203.1 kg)	447.36 lbs (203.1 kg)
Form Factor (supports EIA/non-EIA standards)	16 RU	16 RU	16 RU
Power Required	200 to 277 VAC (50/60 Hz)	200 to 277 VAC (50/60 Hz)	200 to 277 VAC (50/60 Hz)
Power Consumption (Maximum / Average)	9754 W / 8296 W	9754 W / 8296 W	9820 W / 8356 W
AC Current (Maximum)	8 x 10A	8 x 10A	8 x 10A
DC Current (Average/Maximum)	17A@48V/ 204A@48V	174@48V / 205A@48V	174@48V / 205A@48V
Heat Dissipation (Maximum)	33,261 BTU/h	33,261 BTU/h	33,261 BTU/h
Operating Environment and Certifications
Operating Temperature	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)	-31°F to 158°F (-35°C to 70°C)	-31°F to 158°F (-35°C to 70°C)
Humidity	5% to 90% non-condensing	5% to 90% non-condensing	5% to 90% non-condensing
Compliance Certifications	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
