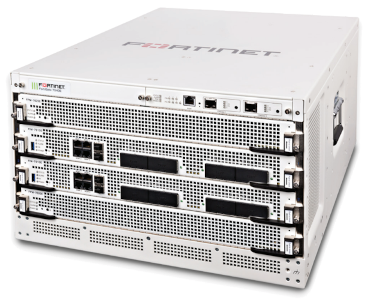

FortiGate 7040E

Fortinet - named a leader in the 2022 Gartner Magic Quadrant for SD-WAN - offers a security-driven networking approach that defends today's highly-dynamic environments. FortiGate NGFW is designed to meet the most demanding threat protection performance requirements and is available in a variety of models, from entry-level hardware to ultra-high-end appliances. Their Secure SD-Wan systems enable the highest application experience and help monitor other FortiGate appliances. Lastly, their secure ethernet systems converge networking and security into a simple-to-manage architecture.

As a trusted Fortinet reseller, ServerMonkey offers the FortiGate 7040E at competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Feature/Model	FortiGate 7060E-8 / 7060E-9-(DC)*	FortiGate 7040E-8 / 7040E-9-(DC)	FortiGate 7030E
Hardware Specifications
Fortinet Processor Module (FPM) Slots	4	2	2
Fortinet Interface Module (FIM) Slots	2	2	1
Shelf Manager	2	1	1
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP)	630 / 630 / 340 Gbps	315 / 310 / 200 Gbps	155 / 155 / 155 Gbps
Firewall Latency (64 byte, UDP)	7.00 μs	7.00 μs	7.00 μs
Firewall Throughput (Packet per Second)	510 Mpps	300 Mpps	220 Mpps
Concurrent Sessions (TCP)	320 Million	160 Million	160 Million
New Sessions/Sec (TCP)	1.8 Million	950,000	900,000
Firewall Policies	200,000	200,000	200,000
IPsec VPN Throughput (512 byte)	100 Gbps	100 Gbps	40 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	16,000	16,000	16,000
Client-to-Gateway IPsec VPN Tunnels	64,000	64,000	64,000
SSL-VPN Throughput	15 Gbps	15 Gbps	15 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)	48,000	48,000	48,000
IPS Throughput (Enterprise Mix)	1,120 / 200 Gbps	60 / 100 Gbps	60 Gbps
SSL Inspection Throughput	79.9 / 120 Gbps	39.9 / 60 Gbps	39.9 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	47,000	32,500	32,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	24 Million	12 Million	12 Million
Application Control Throughput	160 Gbps	80 Gbps	65 Gbps
NGFW Throughput	100 / 120 Gbps	50 / 60 Gbps	50 Gbps
Threat Protection Throughput	80 / 96 Gbps	40 / 48 Gbps	35 Gbps
CAPWAP Throughput	N/A	N/A	N/A
Virtual Domains (Default / Maximum)	10 / 500	10 / 500	10 / 500
Maximum Number of FortiSwitches Supported	256	256	256
Maximum Number of FortiAPs (Total / Tunnel Mode)	N/A	N/A	N/A
High Availability Configurations	Active-Active (FGSP), Active-Passive, Clustering	Active-Active (FGSP), Active-Passive, Clustering	Active-Active (FGSP), Active-Passive, Clustering
Dimensions
Height x Width x Length (inches)	14.0 x 17.3 x 25.6	10.5 x 17.3 x 25.6	10.5 x 17.3 x 25.6
Height x Width x Length (mm)	355.6 x 440 x 651	266.7 x 440 x 650	266.7 x 440 x 650
Weight	210.2 lbs (95.4 kg)	153.3 lbs (69.6 kg)	134.9 lbs (61.3 kg)
Form Factor (supports EIA/non-EIA standards)	8 RU	6 RU	6 RU
Power and Environment
Power Required	AC (configured with 4 PSUs in a 3+1 redundant configuration, an additional 2 PSUs can be added for additional redundancy)	AC (configured with 3 PSUs in a 2+1 redundant configuration, an additional PSU can be added for additional redundancy)	AC (configured with 3 PSUs in a 2+1 redundant configuration, an additional PSU can be added for additional redundancy)
Power Consumption (Maximum / Average)	3277 / 2330 W	2500 / 1800 W	1940 / 1390 W
AC Current (Maximum)	12A@100V, 10A@240V	12A@100V, 10A@240V	12A@100V, 10A@240V
Heat Dissipation (Maximum)	11,184 BTU/h	8530 BTU/h	6619 BTU/h
DC Power Supply	-48V DC	-48V DC	-
DC Current (Maximum)	30A per feed (3+3)	30A per feed (2+2)	-
Operating Temperature	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)	-31°F to 158°F (-35°C to 70°C)	-31°F to 158°F (-35°C to 70°C)
Humidity	20% to 90% non-condensing	20% to 90% non-condensing	20% to 90% non-condensing
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
