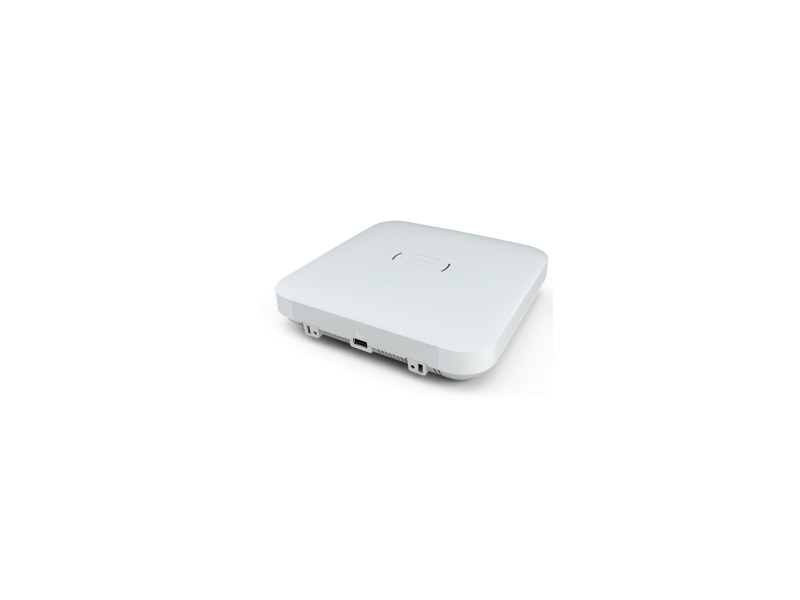

AP505i :: WI-FI 6 Premium :: Wireless Access Points :: Extreme :: Networking

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Extreme, ServerMonkey offers the Extreme AP505i Access Points competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Radio Specifications
SSID per Radio/Total	8/16
Users per Radio/Total	256/512
TPM (Trusted Platform Module)	Yes
802.11a
Operating Frequency	5.150–5.850 GHz
Modulation	Orthogonal Frequency Division Multiplexing (OFDM)
Rates (Mbps)	54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11b
Operating Frequency	2.4–2.5 GHz
Modulation	Direct-Sequence Spread-Spectrum (DSSS)
Rates (Mbps)	11, 5.5, 2, 1 w/ auto fallback
802.11g
Operating Frequency	2.4–2.5 GHz
Modulation	Orthogonal Frequency Division Multiplexing (OFDM)
Rates (Mbps)	54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11n
Operating Frequency	2.4–2.5 GHz & 5.150–5.850 GHz
Modulation	11n Modulation
Features	HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) HT40 High-Throughput (HT) Support for 5 GHz A-MPDU and A-MSDU Frame Aggregation CSD and CDD
802.11ac
Operating Frequency	5.150–5.850 GHz
Modulation	11ac Modulation (256-QAM)
Rates (Mbps)	MCS0 – MCS9 (6.5MBps - 800Mbps)
Features	5G: 4x4 Multiple-In, Multiple-Out (MIMO) Radio (MRC) Rates (Mbps): MCS0–MCS9 (6.5Mbps – 3467Mbps), NSS = 1-4. 4x4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio
Antennas
AP505i - Internal Antennas	(4) Integrated single band, 2.4-2.5 GHz omnidirectional antennas (4) Integrated single band, 5.1-5.8 GHz omnidirectional antennas (1) Integrated single band, 2.4-2.5 GHz omnidirectional antennas for BLE
Mounting
Mounting Options	Wing Bracket Compatible, Extreme Multi-Tbar, Kensington Lock
Security
Security Features	WPA, WPA2(AES), WPA3, 11i, 802.11x, IPSec, IKEv2, PKCS#10, x509 DER / PKCS #12 SSL
Environmental
Operating Temperature	0 to 40°C
Storage Temperature	-40 to 70°C
Humidity	0% to 95% (non-condensing)
Electrostatic Discharge	15kV air, 8kV contact
Power Options
Power Draw	Typical: 18 W; Max: 22 W 802.3at Power over Ethernet (PoE) capable (Full functionality) 802.3af Power over Ethernet injector (Reduced Functionality)
Physical
Dimensions	8.26" x 8.26" x 1.89" (210mm x 210mm x 48mm)
Weight	3.21 lbs (1.45 kg)
Environmental Compliance
Compliance	UL2043 - Plenum Rated
IOT Radio
BLE Radio	Bluetooth® Low Energy (BLE) and IEEE® 802.15.4 compliant
Regulatory Compliance
Product Safety Certifications	IEC 60950-1, EN 60950-1, UL 60950-1, CSA 22.2 60950-1-03 AS/NZS 1, RoHS Directive 2011/65/EU
Radio Approvals
Compliance Standards	FCC CFR 47 Part 15, Class B, ICES-003, Class B, FCC Subpart C 247, FCC Subpart E 407, RSS247, AS/NZS4268 + CISPR32, IEC/EN 60601-1-2, EN 62479, EN 62311, EN 50385, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 55032 (Class B), EN 55011 (Group 1, Class B), EN 55024, EN 60601-1-2, EN 61000-3-2, EN 61000-3-3, EN 300 328, EN 301 893, EN 300 440, EN 50581
Support
Warranty	Limited Lifetime Warranty WiNG
Interfaces
Ethernet Port	RJ45 PoE (Power over Ethernet 802.3at) Port (802.3bz supported)
Additional Port	1x 10/100/1000 Mbps auto-negotiation Ethernet port, RJ45
USB Port	1x Type A, 0.5A
