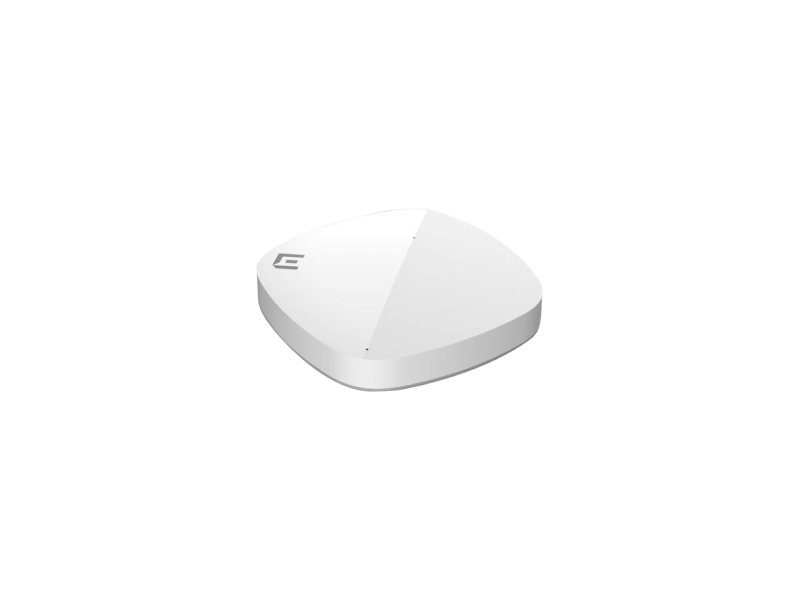

AP410C :: WI-FI 6 Premium :: Wireless Access Points :: Extreme :: Networking

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Extreme, ServerMonkey offers the Extreme AP410C Access Points competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Radio Specifications
802.11a	5.150–5.850 GHz Operating Frequency Orthogonal Frequency Division Multiplexing (OFDM) Modulation Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11b	2.4–2.5 GHz Operating Frequency Direct-Sequence Spread-Spectrum (DSSS) Modulation Rates (Mbps): 11, 5.5, 2, 1 w/ auto fallback
802.11g	2.4–2.5 GHz Operating Frequency Orthogonal Frequency Division Multiplexing (OFDM) Modulation Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11n	2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency 802.11n Modulation Rates (Mbps): MCS0 - MCS15 (6.5MBps - 300Mbps) 2x2 Multiple-In, Multiple-Out (MIMO) Radio HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) HT40 High-Throughput (HT) Support for 5 GHz A-MPDU and A-MSDU Frame Aggregation
802.11ac	2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency 802.11ax Modulation (1024-QAM) Dual-band OFDMA Rates (Mbps) 5G: HE0-HE11 (8 Mbps – 1200 Mbps) 2.4G: HE0-HE11 (8 Mbps – 574 Mbps) 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio HE20/HE40/HE80 support for 5 GHz HE20/HE40 support for 2.4 GHz DL SU-MIMO and MU-MIMO TxBF (Transmit Beamforming)
Interfaces	(1) Autosensing 10/100/1000 BASE-T Ethernet PoE (Power over Ethernet 802.3af) Port USB2.0, Type A 5V, 0.9A USB power <= 500 mA - 802.3af USB power > 500 mA - 802.3at
Power Options	Power Draw: Typical: 9.98 W; Max: 11.28 W (w/o USB) Typical: 14.98 W; Max: 16.28 W (w/ USB) 802.3af Power over Ethernet (PoE) capable Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6) Support 802.3af/802.3at Power over Ethernet injector
Physical	AP 305C: 5.2" x 5.2" x 1.5" (133mm x 133mm x 37mm) AP 305CX: 5.8" x 5.8" x 1.5" (147mm x 147mm x 39mm) AP 305C and AP 305CX: .9 lbs (.4kg) TPM Chip for added security
Antennas	AP 305C - Internal Antennas (2) Integrated single band, 2.4-2.5 GHz omnidirectional antennas (2) Integrated single band, 5.1-5.8 GHz omnidirectional antennas AP 305CX - External Antennas (4) RP SMAs connectors
Mounting	AP support 15/16 flush ceiling tile and is integrated to AP Wall Mount sold as an accessory Ceiling Tile Recessed 15/16" sold as an accessory Built-in slot for Kensington type locks
Environmental	Operating: 0 to 40 °C, Storage: -40 to 70 °C Humidity: 10% to 95% (non-condensing) Environmental Discharge: +/-8 kV (contact discharge)/ +/-15 kV (Air Discharge)
Environmental Compliance	UL2043 - Plenum Rated
Regulatory Compliance	IEC 62368/60950-1, EN 62368/60950-1, USA 62368/60950-1, AS/NZS 62368/60950.1, Intertek NTRL RoHS Directive 2011/65/EU
Radio Approvals	FCC CFR 47 Part 15, Class B ICES-003, Class B FCC Subpart C 15.247 FCC Subpart E 15.407 RSS247 AS/NZS4268 + CISPR32 IEC/EN 60601-1-2, EN 62479 EN 62311 EN 50385 EN 301 489-1 EN 301 489-3 EN 301 489-17 EN 55032 (Class B)
