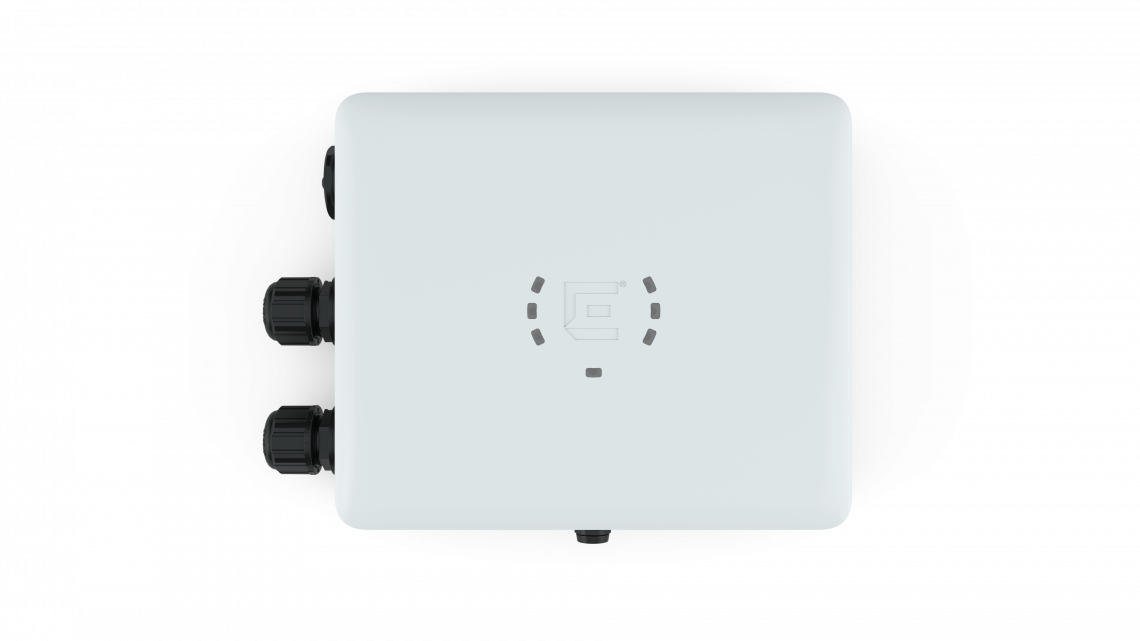

460i/e Access Points :: WI-FI 6 Premium :: Wireless Access Points :: Extreme :: Networking

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Extreme, ServerMonkey offers the Extreme 460i/e Access Points competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Radio Specifications
802.11a	150–5.850 GHz Operating Frequency Orthogonal Frequency Division Multiplexing (OFDM) Modulation Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11b	4–2.5 GHz Operating Frequency Direct-Sequence Spread-Spectrum (DSSS) Modulation Rates (Mbps): 11, 5.5, 2, 1 w/ auto fallback
802.11g	4–2.5 GHz Operating Frequency Orthogonal Frequency Division Multiplexing (OFDM) Modulation Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11n	4–2.5 GHz & 5.150–5.850 GHz Operating Frequency 11n Modulation Rates (Mbps): MCS0 – MCS31 (6.5MBps - 600Mbps) 5G: 4x4 Multiple-In, Multiple-Out (MIMO) Radio 4G: 2x2 Multiple-In, Multiple-Out (MIMO) Radio HT20 High-Throughput (HT) Support (for both 4 GHz and 5 GHz) HT40 High-Throughput (HT) Support for 5 GHz A-MPDU and A-MSDU Frame Aggregation
802.11ac	150–5.850 GHz Operating Frequency 11ac Modulation (256-QAM) Rates (Mbps): MCS0–MCS9 (6.5Mbps – 3467Mbps), NSS = 1-4. 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio VHT20/VHT40/VHT80 support TxBF (Transmit Beamforming)
802.11ax (for 5 GHz Sensor)	150–5.850 GHz Operating Frequency 11ax Modulation (1024-QAM) Dual-band OFDMA Rates (Mbps): HE0-HE11 (8 Mbps – 1200 Mbps), NSS = 1-2. 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio VHT20/VHT40/VHT80/VHT160 support TxBF (Transmit Beamforming)
802.11ax (for 5 GHz Radio)	4–2.5 GHz and 5.150–5.850 GHz Operating Frequency 11ax Modulation (1024-QAM) Dual-band OFDMA Rates (Mbps): 5G: HE0-HE11 (8 Mbps – 4800 Mbps) 4G: HE0-HE11 (8Mbps – 574 Mbps) 4x4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio HE20/HE40/HE80/HE160 support for 5 GHz HE20/HE40 support for 2.4 GHz DL SU-MIMO and MU-MIMO TxBF (Transmit Beamforming)
Radios	BLE Radio Bluetooth® Low Energy (BLE) and IEEE® 15.4 compliant Internal GPS - accuracy is 5m- 3m in open sky
Interfaces	100/1000/2500 Mbps auto-negotiation Ethernet port, RJ45 PoE+ (Power over Ethernet 802.3at) Port 10/100/1000 Mbps auto-negotiation Ethernet port, RJ45
Power Specifications	IEEE 802.3at PoE+ Power
Power Options	Power Draw: Typical: 15.23W; Max. 78W 3at Power over Ethernet (PoE+) capable Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6) 3af Power over Ethernet injector
Physical	10" x 5" x 2.5" (260mm x 192mm x 65mm) AP460i: 3.7 lbs (1.7 kg) AP460e: 3.9 lbs (1.8 kg)
Antennas	AP460i – Internal Antennas (2) Integrated single band, 4-2.5 GHz omnidirectional antennas (4) Integrated single band, 1-5.8 GHz omnidirectional antennas (2) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional antennas for Sensor (1) Integrated single band, 4-2.5 GHz omnidirectional antennas for BLE AP460e – External Antennas 8 Ntype connectors 1 Ntype connector for BLE
Mounting	Pole Mount with 15 degree tilt 12" Extension arm 10" Extension w/2-axis 80 degree tilt
Environmental	Operating: AP460i/e: -40 to 60 °C Storage: -40 to 70 °C Humidity: 0% to 95% (non-condensing)
Environmental Discharge	+/- 8KV contact and +/- 15 KV air
Environmental Compliance	Housing: IP67 rated outdoor use, Wind Gust for 165 mph
Regulatory Compliance	Product Safety Certifications: IEC 60950-1, EN 60950-1, UL 60950-1, CSA 22.2 No.60950-1-03 AS/NZS 60950.1 RoHS Directive 2011/65/EU
Radio Approvals	FCC CFR 47 Part 15, Class B ICES-003, Class B FCC Subpart C 247 FCC Subpart E 15.407 RSS247 AS/NZS4268 + CISPR32 IEC/EN 60601-1-2 EN 62311 EN 50385 EN 55032, (Class B) EN 55011, (Group 1, Class B) EN 55024 EN 301 489-1 EN 301 489-17 EN 61000-3-2 EN 61000-3-3 EN 300 328 EN 301 893 EN 50581
Support	1 Year Warranty
