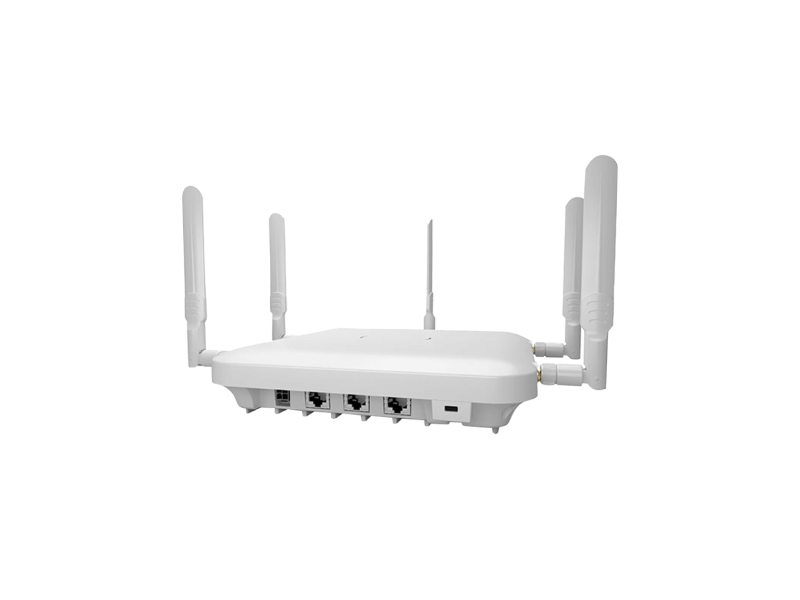

Extreme WiNG AP 8533

802.11ac Capabilities

•   Quad radios (3 Wi-Fi radios + one Bluetooth® radio)

•   Band-unlocked Network Sensor for WIPS and Location Service

•  4x4 MU-MIMO with 4 Spatial Streams

•   Auto-Selecting MU-MIMO supports 1 and 2 stream wireless clients

•   20, 40, and 80 MHz Channels

•   Packet Aggregation (AMSDU, AMPDU) and RIFS

•   MIMO Power Save (Static and Dynamic)

•   Advanced forward error correction coding: STBC, LDPC

•   802.11ac transmit beamforming

•   Maximal Ratio Combining (MRC)

•   NitroQAM provides up to 800 Mbps on 2.4GHz radio and up to 2166 Mbps on 5GHz radio

•   Support for up to 500 associated client devices per access point and up to 16 BSSIDs per radio

Physical Characteristics

Dimensions

8.25” x 8.25” x 1.8”

210mm x 210mm x 46mm

Weight

3.0lbs, 1.27kg

Mounting

Included mounting bracket for flush mount or T-bar mount

LEDs

System status: Green, Amber, Blue, White

LAN Ethernet

2x IEEE 802.3 Gigabit Ethernet auto-sensing

Antenna Connectors

AP-8533-68SB30: internal antenna AP-8533-68SB3E: internal antenna

AP-8533-68SB40; five RP SMA connectors; one RP-SMA dedicated for BT/BLE radio

Console

RJ45

User Environment

Operating Temperature

32° F to 140° F/0° C to 50° C

Storage Temperature

40° F to 158° F/-40° C to 70° C

Operating Humidity

95% RH non-condensing

Electrostatic Discharge

Internal AP-8533-68SB30/3E: ESD to ±12KV air and ±8KV contact

Antenna Information

Internal Antenna

Radio 1 (2.4GHz) : 5.2dBi Radio 2 (5.2GHz): 6.8 dBi

Radio 3 (2.4GHz/5.2GHz): 4.9/5.9 dBi

Radio 4 (2.4GHz): Integrated antenna with 7.7dBi

External Antenna

Radio 1, 2 : up to 10dBi

Radio 3 (2.4GHz/5.2GHz) integrated antenna: 4.9/5.9 dBi

Radio 4 (2.4GHz): dual-mode antenna option. Integrated antenna with 7.7dBi or optional external antenna up to 11dBi.
