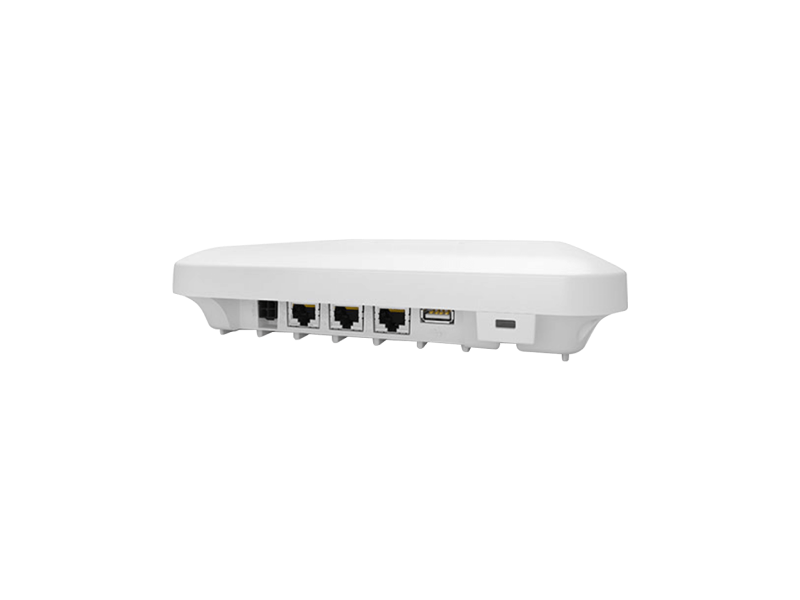

Extreme WiNG AP 8432

802.11ac Capabilities

•   Tri-radios (Dual Wi-Fi® radios plus Bluetooth®)

•   Band-unlocked radio for Data or Dual-band 802.11 WIDS/WIPS and Location Service

•  4x4 MU-MIMO with 4 Spatial Streams

•   Auto-Selecting MU-MIMO

•   20, 40, and 80 MHz ChannelsPacket Aggregation (AMSDU, AMPDU) and RIFS

•   Legacy support 802.11a.b.g.n networks

•   MIMO Power Save (Static and Dynamic)

•   Advanced forward error correction coding: STBC, LDPC

•   802.11ac transmit beamforming

•   Maximal Ratio Combining (MRC)

•   NitroQAM provides up to 800 Mbps on 2.4GHz radio and up to 2166 Mbps on 5GHz radio

•   Support for up to 500 associated client devices per access point and up to 16 BSSIDs per radio

Physical Characteristics

Dimensions

8.25” x 8.25” x 1.8”

210mm x 210mm x 46mm

Weight

3.0lbs, 1.27kg

Housing

Plenum-Rated Housing (UL2043)

Mounting

Included mounting bracket for flush mount or T-bar mount

LEDs

System status: Green, Amber, Blue, White

LAN Ethernet

2x IEEE 802.3 Gigabit Ethernet auto-sensing

Antenna Connectors

Nine internal single band antennas

Eight for WLAN Data radios and one for Bluetooth

Console

RJ45 serial port

PoE Out

Supports 802.3af Powered Devices (PD) up to 15.4w

USB

A single 5W multi-purpose USB port

User Environment

Operating Temperature

32° F to 140° F/0° C to 60° C

Storage Temperature

40° F to 158° F/-40° C to 70° C

Operating Humidity

95% RH non-condensing

Electrostatic Discharge

ESD to ±12KV air and ±8KV contact

Antenna Gain Information

Internal Antenna

Radio 1: 2.4GHz: 3x3 with 3SS Radio 2: 5GHz: 4x4 with 4SS

Radio 3: Bluetooth radio with integrated antenna
