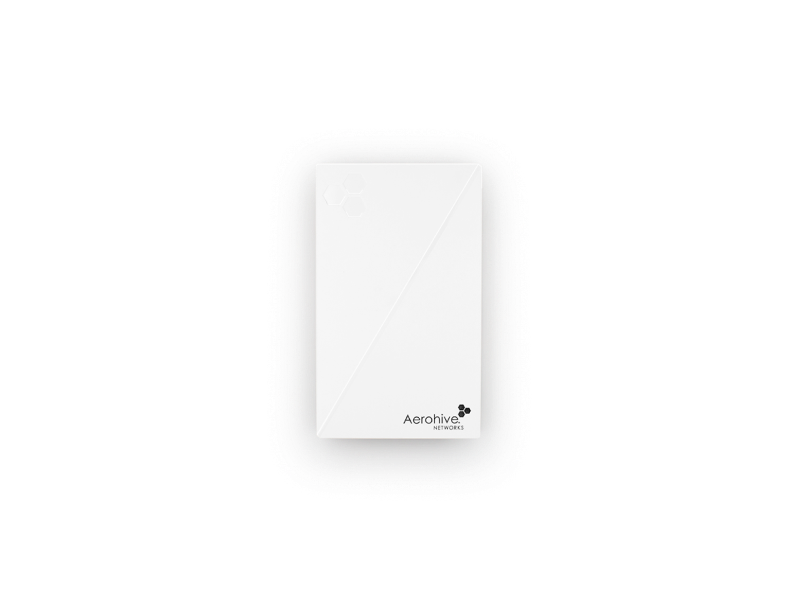

AP150W :: WI-FI 5 :: Wireless Access Points :: Extreme :: Networking

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Extreme, ServerMonkey offers the Extreme AP150W competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Radio Specifications
802.11a	5.150–5.850 GHz Operating Frequency Orthogonal Frequency Division Multiplexing (OFDM) Modulation Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11b	2.4–2.5 GHz Operating Frequency Direct-Sequence Spread-Spectrum (DSSS) Modulation Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g	2.4–2.5 GHz Operating Frequency Orthogonal Frequency Division Multiplexing (OFDM) Modulation 20 dBm (100 mW) Transmit Power Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11n	2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency 802.11n Modulation 2.4 GHz: Rates (Mbps): MCS0 - MCS15 (6.5Mbps - 300Mbps) 5 GHz: Rates (Mbps): MCS0 - MCS15 (6.5Mbps - 450Mbps) 3x3 Multiple-In, Multiple-Out (MIMO) Radio for 5 GHz 2x2 Multiple-In, Multiple-Out (MIMO) Radio for 2.4 GHz HT20 High-Throughput (HT) Support for both 2.4 GHz and 5 GHz HT40 High-Throughput (HT) Support for 5 GHz
802.11ac	5.150–5.850 GHz Operating Frequency 802.11ac Modulation (256-QAM) Rates (Mbps): MCS0–MCS9 (6.5Mbps – 1300 Mbps), NSS = 1-3 3x3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio VHT20/VHT40/VHT80 support TxBF (Transmit Beamforming)
Power Consumption	802.3af Input: Typical 11.3W, Max 12.4W 802.3at Input: Typical 23.6W, Max 24.9W (with 12W PoE Output Load) 48VDC Input: Typical 26.9W, Max 28.2W (with 15.4W PoE Output Load)
Power Options	IEEE 802.3af / 802.3at (PoE/PoE+) With IEEE 802.3af PoE power, AP150W will power up and the Wi-Fi and Ethernet ports will operate in their full capacity (no PoE budget on the downlink port). With IEEE 802.3at PoE power, AP150W will power up and the Wi-Fi and Ethernet ports will operate in their full capacity (available PoE budget on the downlink port is 12W). Power supply 48VDC, 0.75A (sold as an accessory). With 48VDC input, AP150W will power up and the Wi-Fi and Ethernet ports will operate in their full capacity (available PoE budget on the downlink port is 15.4W).
Physical	Dimensions WxDxH: 4.2” x 1.1” x 6.9” (105.9mm x 29.2mm x 175mm) Weight: 0.86 lb / (0.39 kg) Wallplate Bracket Weight: 0.26 lb (0.1 kg)
Antennas	2x Integrated single band, 2.4-2.5 GHz Omnidirectional antennas 3x Integrated single band, 5.1-5.8 GHz Omnidirectional antennas 1x BLE internal antenna 1x ZigBee internal antenna
Mounting	Wallplate (included with the AP) Desk mount (sold as an accessory) TPM chip for added security
Environmental	Operating: 0 to +40°C Storage: -40 to +70°C Humidity: 95% RH (non-condensing)
