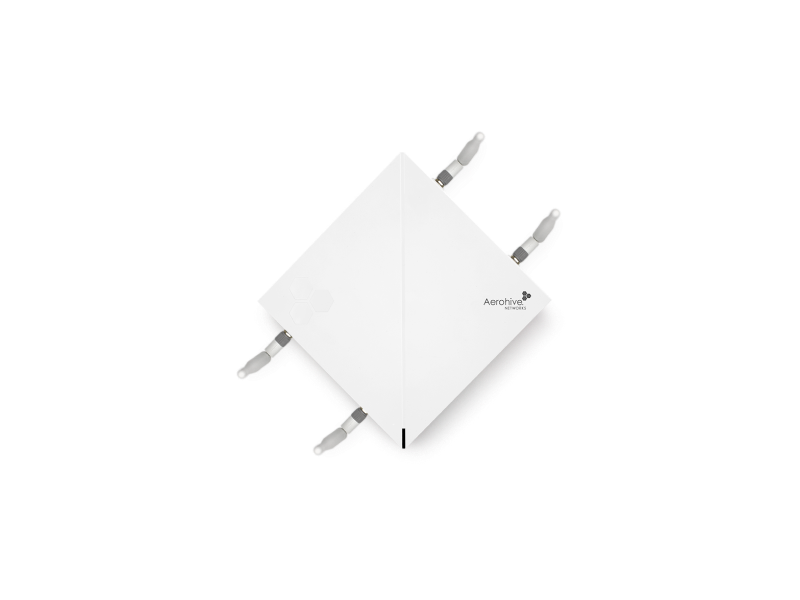

AP122X :: WI-FI 5 :: Wireless Access Points :: Extreme :: Networking

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Extreme, ServerMonkey offers the Extreme AP122X competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Radio Specifications
802.11a	5.150–5.850 GHz Operating Frequency Orthogonal Frequency Division Multiplexing (OFDM) Modulation Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11b	2.4–2.5 GHz Operating Frequency Direct-Sequence Spread-Spectrum (DSSS) Modulation Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback
802.11g	2.4–2.5 GHz Operating Frequency Orthogonal Frequency Division Multiplexing (OFDM) Modulation 20 dBm (100 mW) Transmit Power Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11n	2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency 802.11n Modulation Rates (Mbps): MCS0 - MCS15 (6.5Mbps - 300Mbps) 2x2 Multiple-In, Multiple-Out (MIMO) Radio
802.11ac	5.150–5.850 GHz Operating Frequency 802.11ac Modulation (256-QAM) Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio VHT20/VHT40/VHT80 support TxBF (Transmit Beamforming)
Interfaces	Autosensing 10/100/1000 Base-T Ethernet PoE (Power over Ethernet 802.3af) Port RJ-45 console port Standard USB port
Power Specifications	IEEE 802.3af PoE Power
Power Options	Power Draw: Typical 10.5W, Max 12.9W 802.3af / 802.3at (PoE/PoE+)
Physical	LxWxH: 171 x 171 x 44.5 mm (6.75 x 6.75 x 1.75 in) w/o mounting brackets Weight: 1.13 lb (0.51 kg) Shipping Physical Dimensions: WxDxH: 8” x 7” x 3” (194mm x 186mm x 70mm) Weight: 1.54 lbs (0.7 Kg)
Antennas	2x external single band, 2.4-2.5GHz omnidirectional antennas (sold separately) 2x external single band, 5.1-5.8GHz omnidirectional antennas (sold separately) 1x BLE internal antenna Antenna Gain: 2.4 GHz: 4 dBi 5 GHz: 4 dBi Max EIRP (dBm): 2400 MHz to 2500 MHz: 27 dBm 5250 MHz to 5350 MHz: 30 dBm 5725 MHz to 5875 MHz: 30 dBm
Mounting	Desktop Wall Mount Ceiling Tile flush 15/16” Ceiling Tile Recessed 15/16”, 3/8”, 9/16” sold as an accessory Ceiling Tile Flush 3/8”, 9/16” sold as an accessory Suspend Mount sold as an accessory TPM chip for added security
Environmental	Operating: 0 to 40 °C Storage: -40 to 70 °C Humidity: 95%
Environmental / Regulatory Compliance	Environmental Compliance: UL2043 Regulatory Model: AP122X
Regulatory Compliance	FCC 15.247 15.407 OET65 Supplement C UL60950-1
