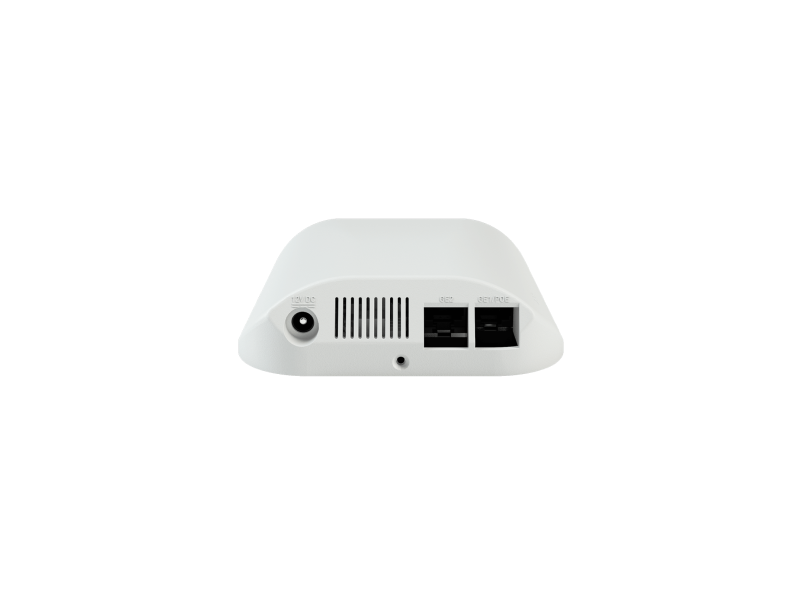

WiNG AP 7612 Wall Plate

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Extreme, ServerMonkey offers the Extreme WiNG WiNG AP 7612 Wall Plate competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Product Fatures	AP 7612
802.11ac Capabilities
Capabilities	802.11ac 2x2:2, MIMO, MU-MIMO 256-QAM, HT20/40/80 MHz, BLE Packet Aggregation (AMSDU, AMPDU) RIFS, STBC, LDPC MIMO Power Save; 802.11ac Tx beamform; MRC
Physical Characteristics
Dimensions	6.1" x 4.4" x 1.2", 155mm x 112mm x 30mm
Weight	0.6 lbs/0.27kg
Housing	ABS Plastic, Aluminum Backplate
Available Mounting	Included Wall Mount Bracket
LEDs Activity Indication	3 Side-Mounted LEDs; Radio 1, Radio 2, BLE
LAN Ethernet	2x IEEE 802.3 Gigabit Ethernet Auto-Sensing. PoE-Out on GE2
Antenna	2.4 GHz Band; 5.4dBi; 5GHz Band, 8.5dBi
Console Port	Not User Accessible
User Environment
Operating Temperature	32° F to 104° F/ 0° C to 40° C
Storage Temperature	-40°F to 158°F/-40°C to 70°C
Operating Humidity	0% - 95% (noncondensing)
Electrostatic Discharge	8kV Air, 6kV Contact
Power Specifications
Operating Voltage	PoE-PD Spec: 48VDC; Wall Brick: 12VDC
Operating Current	PoE-PD Spec: 200 mA at 48V typical (9.6W); (w/o PoE daisy chain) : Wall Brick: 1.5a
PoE-PD class	802.3af, 802.3at
PoE-out	802.3af When the Input Power is 802.3at. PoE-Out is Only Available When the Input Power is PoE
Networking Specification
Layer 2 and Layer 3	Layer 3 Routing, 802.1q, DynDNS, DHCP Server / Cient, BOOTP Client, PPPoE, and LLDP
Security	Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS, and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server
Quality of Service (QoS)	WMM, WMM-UAPSD, 802.1p, Diffserv, and TOS
Radio Specifications
Wireless Medium	Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)
Network Standards	IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD, L2TPv3, Client VPN, MESH (released in a future version of WiNG), Captive Portal server, Support SNMP v1, v2c, v3
Data Rates Supported	802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48 and 54 Mbps; 802.11a: 6,9,12,18,24,36,48, and 54 Mbps; 802.11n: MCS 0-15 up to 300 Mbps; 802.11ac on 2G VHT MCS0-9 up to 400Mbps, 802.11ac on 5G: VHT MCS 0-9 up to 866.7 Mbps
Operating Channels	2.4 GHz Band: Channel 1 through Channel 13 5 GHz Band: Channel 36 through Channel 165 * Channel availability depends on local regulatory restrictions
Antenna Configuration	2x2 MIMO (transmit/receive on both antennas). Transmit Power Adjustment 1dB Increment
Operating Frequencies	2412 to 2472 MHz, 5180 to 5825 MHz
Certifications
Wi-Fi Alliance (WFA)	802.11a/b/g/n/ac
Bluetooth	Bluetooth SIG listed
Regulatory
Product Safety Certifications	FCC CFR 47 Part 15, Class B, ICES-003 Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, RSS247, EN 301 893, EN 300 328, EN 301 489 1 & 17, EN 50385, EN 55032 (CISPR 32), EN 60601-1-2, AS/ NZS4268 + CISPR32
Radio Approvals	FCC CFR 47 Part 15, Class B, ICES-003 Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, RSS247, EN 301 893, EN 300 328, EN 301 489 1 & 17, EN 50385, EN 55032 (CISPR 32), EN 60601-1-2, AS/ NZS4268 + CISPR32
Maximum Conducted Transmit Power
AP-7612-680B30	2.4 GHz Band: 20 dBm; BLE: 7 dBm 5 GHz Band: 20 dBm
