Details:

Description

Product Fatures	AP 7532
802.11ac Capabilities
Capabilities	Dual band radios; supports 256-QAM 3X3 MIMO with 3 Spatial Streams 20, 40, and 80 MHz Channels 1.9 Gbps data rates on dual concurrent radio operations Packet Aggregation (AMSDU, AMPDU) Reduced Interface Spacing 802.11 MIMO Power Save (Static and Dynamic) Advanced forward error correction coding: STBC, LDPC 802.11ac transmit beamforming Maximal Ratio Combining (MRC)
Physical Characteristics
Dimensions	7.1 in. L x 6.5 in. W x 1.6 in. H, 180 mm L x 165 mm W x 41 mm H
Weight	1.8 lbs/0.82 kg
Housing	Plenum-rated housing (UL2043)
Available Mounting	No additional hardware required to mount
LEDs Activity Indication	2 top-mounted LEDs; activity indication
LAN Ethernet	1x IEEE 802.3 Gigabit Ethernet auto-sensing
Configuration	Above drop ceiling, under ceiling or on wall
Antenna	4dBi - 2.4 GHz band; 6 dBi - 5GHz band (Internal only — AP-7532-67030-xx)
Antenna connectors	Three RP SMAs (External only —AP-7532-67040-xx)
Console Port	RJ45
User Environment
Operating Temperature	Internal antennas: 32° F to 104° F/ 0° C to 40° C External antennas: -4° F to 104° F/ -20° C to 40° C
Storage Temperature	-40°F to 158°F/-40°C to 70°C
Operating Humidity	85% (noncondensing)
Electrostatic Discharge	Internal AP-7532-67030-xx: 15kV air, 8kV contact External AP-7532-67040-xx: 12kV air, 6kV contact
Power Specifications
Operating Voltage	48V
Operating Current	312mA at 48V
Integrated PoE Support	802.3af, 802.3at
Networking Specification
Layer 2 and Layer 3	Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE and LLDP
Security	Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS, and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server
Quality of Service (QoS)	WMM, WMM-UAPSD, 802.1p, Diffserv, and TOS
Radio Specifications
Wireless Medium	Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)
Network Standards	IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD, L2TPv3, Client VPN, MESH (released in a future version of WiNG), Captive Portal server
Data Rates Supported	802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48 and 54 Mbps; 802.11a: 6,9,12,18,24,36,48, and 54 Mbps; 802.11n: MCS 0-23 up to 450 Mbps; Turbo mode (256 QAM) on 2.4 GHz band up to 600 Mbps; 802.11ac: MCS 0-9 up to 1.3 Gbps
Operating Channels	2.4 GHz band: channel 1 through channel 13 5.2 GHz band: channel 36 through channel 165 * Channel availability depends on local regulatory restrictions
Antenna Configuration	3X3 MIMO (transmit/receive on both antennas)
Transmit Power Adjustment	1dB increment
Operating Frequencies	2412 to 2472 MHz, 5180 to 5825 MHz
Certifications
	Wi-Fi Alliance (WFA) certified 802.11a/b/g/n/ac
Regulatory
Safety Certifications	UL / cUL 60950-1, IEC / EN60950-1, UL2043, RoHS
Radio Approvals	FCC (USA), EU, TELEC
Accessories
Power Supply	37215 – PWR 12VDC, 2A, 2.5mm x 5.5mm connector
PoE	PD-3501G-ENT – Single Port 802.3AF Midspan Device PD-9001GR-ENT – Single Port 802.3AT Compliant Midspan
Mounting	Mounting Plate for Indoor APs (37201) included in box Universal Mounting Kit for EWLAN APS (KT-135628-01) Beam Clip for Mounting Plate (BRKT-000147A-01)
Maximum Conducted Transmit Power*
Internal antennas (AP-7532-67030-xx)	2.4 GHz Band: 1 Antenna Tx Power : 20 dBm 2 Antennas Tx Power : 23 dBm 3 Antennas Tx Power : 24.7 dBm 5 GHz Band: 1 Antenna Tx Power : 20 dBm 2 Antennas Tx Power : 23 dBm 3 Antennas Tx Power : 24.7 dBm
External antennas (AP-7532-67040-xx)	2.4 GHz Band: 1 Antenna Tx Power : 19 dBm 2 Antennas Tx Power : 22 dBm 3 Antennas Tx Power : 23.7 dBm 5 GHz Band: 1 Antenna Tx Power : 18 dBm 2 Antennas Tx Power : 21 dBm 3 Antennas Tx Power : 22.7 dBm

CONTACT US TO LEARN MORE

ABOUT Extreme WiNG AP 7532

Fill out the form and our team will get back to you.

1-855-432-8918
[email protected]
2130 W Sam Houston Pkwy N
Houston, TX 77043

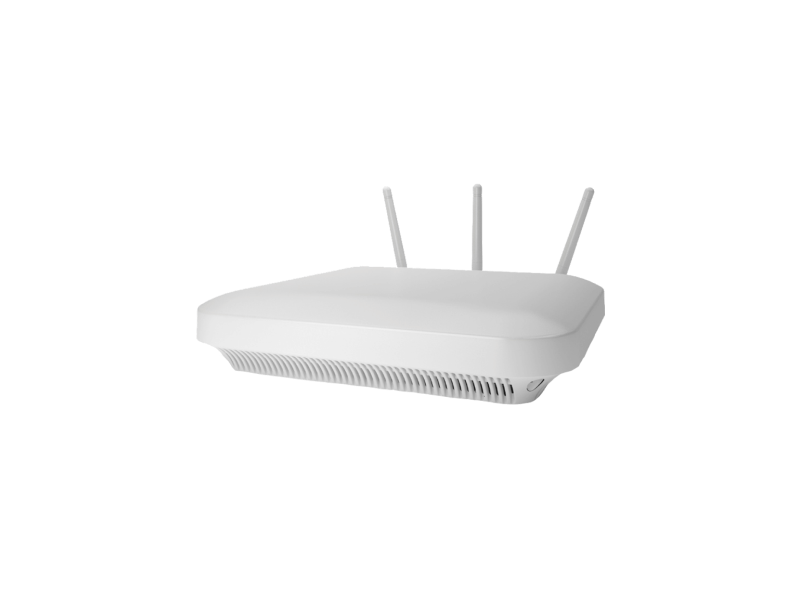

Extreme WiNG AP 7532
