Details:

Description

Category	Specification
General
AP Type	High Performance Enterprise Class AP
Wi-Fi Radios	2
MIMO Implementation	4x4 MIMO for High-Performance 11ac & 11n Throughputs
Spatial Streams	4
MU-MIMO Users	3 Simultaneous Users
Max Throughput 2.4GHz Radio	800 Mbps
Max Throughput 5GHz Radio	1.733 Gbps
Max Throughput Per AP	2.532 Gbps
RFC2285 Wire/Wireless Forwarding Rate	90,000 pps
SSIDs Supported Per Radio/Total	8/16
Simultaneous Users Per Radio/Total	240/480 Per AP
Simultaneous Voice Calls	30 or greater (802.11b, G711, R>80)
Mode of Operation	Semi-autonomous Mode
Deployment	Plug and Play Operation/Zero Touch Deployment
Security and Standards	WPA, WPA2 (AES), 802.11i, 802.1x, IPSec, IKEv2, PKCS #10, X509 DER / PKCS #12, SSL
Multiple Operating Modes
Intelligent Thin AP	Encryption, Security, QoS, and RF Management Services at AP
Data Paths	Distributed and Centralized Data Paths within the same SSID, Application-Based Data Paths within the same User/Device Session
RF Monitoring	Simultaneous RF Monitoring and Client Services
WIDS/WIPS
In-Channel WIDS/WIPS	Yes
Multi-Channel WIDS/WIPS	Dedicated Mode
RF Spectrum Analysis	Dedicated Multi-Channel with Fingerprinting
Device and Threat Location	Via RF Triangulation
Meshing
Self-Forming and Self-Healing	Yes
Remote Access Point	Yes
Encryption	Hardware-Based, End-to-End Data and Control Plane Encryption
Cloud Deployments	Private and Public Cloud
SSL	Yes
Hybrid Operation
Security Scanning	On the same Radio as Client Services and Spectrum Analysis
Dedicated Security Scanning and Spectrum Analysis	Multi-Channel
Radio Characteristics
Max Conductive Power	Radio 1 (5GHz): 29 dBm Radio 2 (2.4GHz): 27 dBm
Max Antenna Gain (Integrated Antenna)	Radio 1 (5GHz): 5 dBi (AP3935i) Radio 2 (2.4GHz): 3 dBi (AP3935i)
Adaptive Radio Management	Dynamic Channel Control, Automatic Transmit Power, Coverage Gap Detection, Band Steering, Spectrum Load Balancing, Airtime Fairness
Quality of Service
QoS Features	WMM, 802.11e, Power Save (U-APSD), Fast Secure Roaming (802.11r), Pre-Auth, OKC, Bonjour/LLMNR/UPNP Identification
Voice and Video	Supports Voice, Video, and Data on the Same SSID, Prioritizes Voice over Data, Rate Limiting
Wireless Services
Media Access Protocol	CSMA/CA with ACK
Data Rates	802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps 802.11n and 802.11ac: Check Datasheet for Performance Table
Receiver Sensitivity	802.11a: -92dBm @ 6Mbps, -77dBm @ 54Mbps 802.11g: -91dBm @ 6Mbps, -78dBm @ 54Mbps 802.11n and 802.11ac: Check Datasheet for Sensitivity Table
Frequency Bands	802.11ac/a/n: 5.15 to 5.85 GHz 802.11b/g/n: 2.4 to 2.4835 GHz
Wireless Modulation
802.11ac	BPSK, QPSK, 16QAM, 64QAM, 256QAM with OFDM
802.11n	BPSK, QPSK, 16QAM, 64QAM with OFDM, HT 20/40
802.11a	BPSK, QPSK, 16QAM, 64QAM with OFDM
802.11g	DSSS and OFDM
802.11b	DSSS
Interfaces
Uplink	2x 10/100/1000 Base-T Ethernet autosensing link
Mounting
Options	Flat Wall Mounting (Included)
Environmental
Protection	IP67 / NEMA6
Operating Temperature	-30°C to +60°C (-22°F to +158°F)
Humidity	0%-95% (non-condensing)
Storage Temperature	-40°C to +70°C (-58°F to +158°F)
Transportation Temperature	-40°C to +70°C (-58°F to +158°F)
Compliance
Wireless and EMC	FCC CFR 47 Part 15, Class B, ICES-003 Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, RSS-210, EN 301 893, EN 300 328, EN 301 489 1 & 17, EN 50385, EN 55032 (CISPR 32), EN 60601-1-2, AS/NZS4268 + CISPR32
Safety	IEC 60950-1, IEC60950-22, EN 60950-1, UL 60950-1, UL 60950-22, CSA 22.2 No.60950-1-03, CSA 22.2 No. 60950-22, AS/NZS 60950.1

CONTACT US TO LEARN MORE

ABOUT Extreme AP3935

Fill out the form and our team will get back to you.

1-855-432-8918
[email protected]
2130 W Sam Houston Pkwy N
Houston, TX 77043

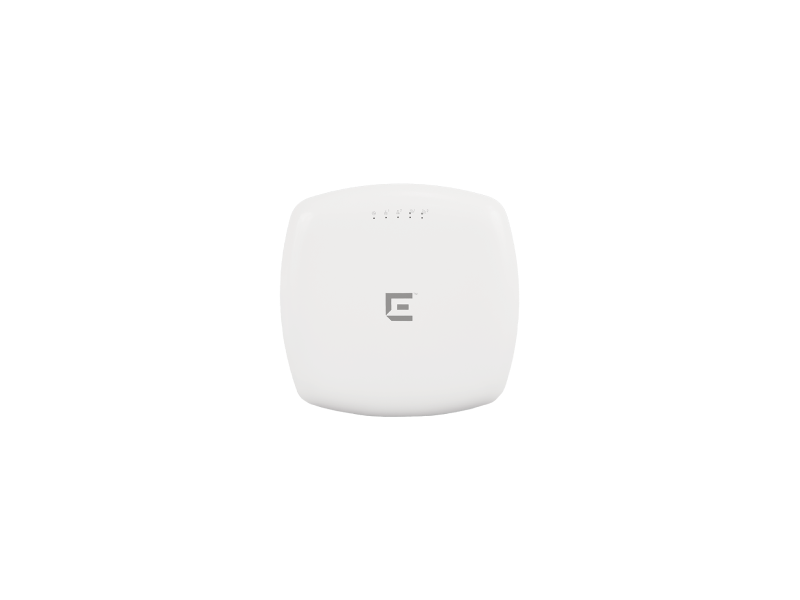

Extreme AP3935
