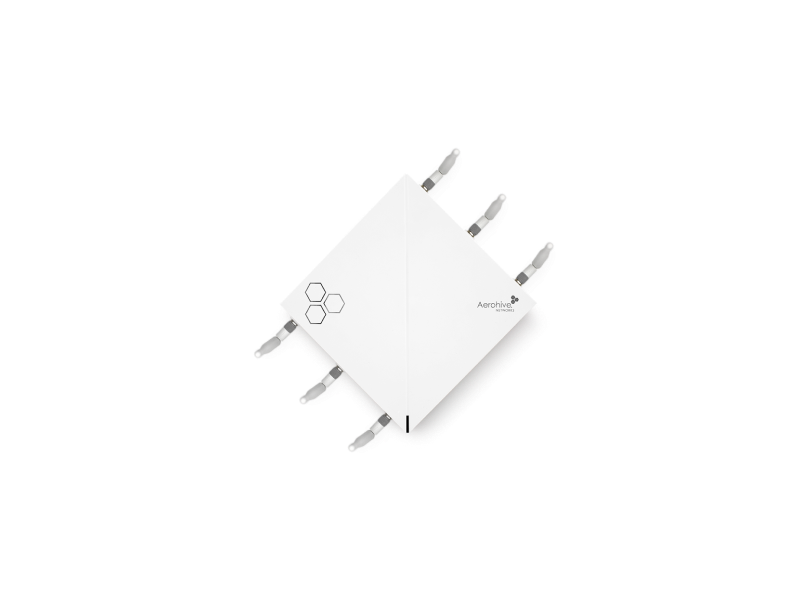

AP245X :: Controllers :: Wireless Access Points :: Extreme :: Networking

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Extreme, ServerMonkey offers the Extreme AP245X competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Category	Specification
802.11a
Operating Frequency	5.150–5.850 GHz
Modulation	Orthogonal Frequency Division Multiplexing (OFDM)
Rates (Mbps)	54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11b
Operating Frequency	2.4–2.5 GHz
Modulation	Direct-Sequence Spread-Spectrum (DSSS)
Rates (Mbps)	11, 5.5, 2, 1 w/auto fallback
802.11g
Operating Frequency	2.4–2.5 GHz
Modulation	Orthogonal Frequency Division Multiplexing (OFDM)
Transmit Power	20 dBm (100 mW)
Rates (Mbps)	54, 48, 36, 24, 18, 12, 9, 6 w/auto fallback
802.11n
Operating Frequency	2.4–2.5 GHz and 5.150–5.850 GHz
Modulation	802.11n
Rates (Mbps)	MCS0 - MCS15 (6.5MBps - 300Mbps)
Radio	2x2 Multiple-In, Multiple-Out (MIMO) Radio
HT Support	HT20 for both 2.4 GHz and 5 GHz, HT40 for 5 GHz
Frame Aggregation	A-MPDU and A-MSDU
802.11ac
Operating Frequency	5.150–5.850 GHz
Modulation	802.11ac (256-QAM)
Rates (Mbps)	MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2
Radio	2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio
HT Support	VHT20/VHT40/VHT80
Transmit Beamforming	TxBF
Interfaces
Ethernet Ports	Two Autosensing 10/100/1000 BASE-T Ethernet ports with PoE (Power over Ethernet 802.3af) capability on one of the ports
Console Port	RJ-45
USB Port	Standard USB
Power Specifications
PoE	IEEE 802.3af / 802.3at
Power Draw	Typical 11.22 W; Max 15.74 W
Physical
Dimensions (WxDxH)	7.25” x 7.25” x 1.87” (18.4 cm x 18.4 cm x 1.87 cm) [plus .25”, mounting hardware – 2.12” (5.4 cm) H total]
Weight	1.8 lb (0.81 kg)
Antennas
2.4 GHz	3x RP-SMA connector
5 GHz	3x RP-SMA connector
Bluetooth	1x BLE internal antenna
Mounting Options
Included	Wall Mount, Ceiling Tile flush 15/16” and Wall Mount locking accessory
Sold Separately	Desktop, Ceiling Tile Recessed 15/16”, 3/8”, 9/16”, Suspend Mount, Plenum Mount, Silhouette and Interlude
Security	TPM chip for added security
Environmental
Operating Temperature	0 to +40°C
Storage Temperature	-40 to +70°C
Humidity	95% (non-condensing)
Environmental Compliance
Rating	UL2043
Certifications
Security	WPA/WPA2, Voice-Enterprise
