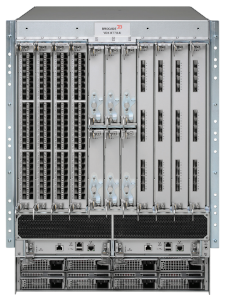

As a trusted Extreme, ServerMonkey offers the Extreme VDX 8770 competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

	VDX 8770-4	VDX 8770-8
Port-to-port latency (64-byte packets)	4 microseconds	4 microseconds
Form factor	8U	15U
Slots	4	8
Dimensions and weight	Width: 43.74 cm (17.22 in.) Height: 34.7 cm (13.66 in.) Depth: 66.04 cm (26 in.) Weight: 31.75 kg (70 lb) Weight (fully loaded): 86.18 kg (190 lb)	Width: 44 cm (17.32 in.) Height: 66.2 cm (26.06 in.) Depth: 66.04 cm (26 in.) Weight: 61.24 kg (135 lb) Weight (fully loaded): 165.55 kg (365 lb)
1 GbE SFP/SFP copper ports	192	384
10 GbE SFP+/RJ45 ports	192	384
40 GbE QSFP+ ports	108	216
100 GbE CFP2 ports	24	48
Power supplies	4 max	8 max
Cooling fans	2	4
Airflow	Side-to-back airflow	Front-to-back airflow
Scalability Information
Connector options	1 GbE copper SFP options 10 Gbps SFP+ options: 1/3/5 m direct-attached copper (Twinax) 10 GbE SR and 10 GbE LR 10 GbE 10GBASE-T RJ45 40 GbE QSFP+ 100 GbE CFP2	1 GbE copper SFP options 10 Gbps SFP+ options: 1/3/5 m direct-attached copper (Twinax) 10 GbE SR and 10 GbE LR 10 GbE 10GBASE-T RJ45 40 GbE QSFP+ 100 GbE CFP2
Maximum VLANs	4,096	4,096
Maximum MAC addresses	384,000	384,000
Maximum IPv4 routes	352,000	352,000
Maximum IPv6 routes	88,000	88,000
Maximum ACLs	57,000	57,000
Maximum port profiles (AMPP)	1,024	1,024
Maximum ARP entries	128,000	128,000
Maximum members in a standard LAG	64	64
Maximum switches in a VCS fabric	48	48
Maximum ECMP paths in a VCS fabric	16	16
Maximum trunk members for VCS fabric ports	16	16
Maximum switches that a vLAG can span	8	8
Maximum members in a vLAG	64	64
Maximum jumbo frame size	9,216 bytes	9,216 bytes
DCB Priority Flow Control (PFC) classes	8	8
VDX 8770 Modules and Line Cards
Management Module (half-slot)	Multicore processor 8 GB SDRAM, USB port Console, management port, auxiliary service port (all RJ-45)
Flash memory support	One 8 GB compact flash in each Management Module Two 4 GB compact flash in each line card
1 GbE access (fiber/copper) line card	48-port SFP/SFP-copper
1 GbE/10 GbE access (copper) line card	48-port RJ45
10 GbE access or aggregation line card	48-port SFP+ (10 GbE/1 GbE) 48-port RJ45 (10 GbE/1 GbE)
40 GbE aggregation line card	12-port QSFP+ module 27-port QSFP+ module
100 GbE aggregation line card	6-port CFP2 module
Mechanical
Enclosure	19-inch EIA-compliant; power from port side
Environmental
Temperature	Operating: 0°C to 40°C (32°F to 104°F) Non-operating and storage: -25°C to 70°C (-13°F to 158°F)
Humidity	Operating: 10% to 85% non-condensing Non-operating and storage: 10% to 90% non-condensing
Altitude	Operating: Up to 3,000 meters (9,842 feet) Non-operating and storage: Up to 12 kilometers (39,370 feet)
Airflow	Maximum: 675 CFM Nominal: 200 CFM	Maximum: 1,250 CFM Minimum: 375 CFM
Power	VDX 8770-4	VDX 8770-8
Max power utilization	3,250 W	6,387 W
Power inlet	C19	C19
Input voltage	200 to 240 VAC (Operating voltage range: 180 to 264 VAC)	200 to 240 VAC (Operating voltage range: 180 to 264 VAC)
Input line frequency	50 to 60 Hz	50 to 60 Hz
Maximum current	AC: 16.0 A max per power supply DC: 70.0 A max per power supply	AC: 16.0 A max per power supply DC: 70.0 A max per power supply
