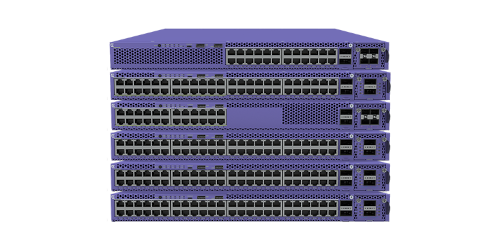

X465 Series :: Edge Switching :: Switches :: Extreme :: Networking

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Sophos SonicWall, ServerMonkey offers the X465 Series competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

	X465-24W	X465-24MU	X465-24S	X465-24XE
Performance and Scale
Max Active 10/100/1000Mb ports	24	0	0	0
Max Active 100Mb/1Gb/2.5Gb/5Gb ports	0	24	0	0
Max Active 100Mb/1Gb SFP ports	0	0	24	0
Max Active 1/10Gb SFP+ ports	4	4	4	28
Max Active 25Gb SFP28 ports	2	4	2	4
Max Active 40Gb QSFP+ VIM5 ports*	1	2	1	2
Max Active QSFP+ Stacking Ports	2	2	2	2
Aggregated Switch Bandwidth	316 Gbps	648 Gbps	316 Gbps	235.1Mpps
Frame Forwarding Rate	235.1Mpps	482.1Mpps	888 Gbps	660.7 Mpps
CPU/ Memory	Dual Core x86 CPU 2GB DRAM 8GB eMMC NVRAM	Quad Core x86 CPU 8GB DRAM 8GB eMMC NVRAM	Dual Core x86 CPU 2GB DRAM 8GB eMMC NVRAM	Quad Core x86 CPU 8GB DRAM 8GB eMMC NVRAM
External Ports
External Ports/Slots	24 x 10/100/1000BASE-T 802.3bt Type4 (90W) ports Full /Half-Duplex MACsec-capable 2 x 40GBASE-X QSFP+ dedicated stacking ports (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 1 x USB Micro-B console port 2 x USB A ports for external USB flash 1 x VIM5 slot	24 x 100M/1/2.5/5BASE-T 802.3bt Type3 (60W) ports 2 x 40GBASE-X QSFP+ dedicated stacking ports (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 1 x USB Micro-B console port 2 x USB A ports for external USB flash 1 x VIM5 slot	24 x 100/1000BASE-X (SFP) ports (unpopulated) 2 x 40GBASE-X QSFP+ dedicated stacking ports (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 1 x USB Micro-B console port 2 x USB A ports for external USB flash 1 x VIM5 slot	24 x 100M/1Gb/10Gb (SFP+) ports (unpopulated) MACsec-capable LRM-capable 2 x 40GBASE-X QSFP+ dedicated stacking ports (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 1 x USB Micro-B console port 2 x USB A ports for external USB flash 1 x VIM5 slot
Physical
Dimension	17.34 in W / 1.7 in H / 19.23 in D 440 mm / 43.6mm / 488mm
Weight	17.35 lb / 7.87 kg	17.5 lb / 7.94 kg	16.69 lb / 7.57 kg	17.13 lb / 7.77 kg
Minimum/Maximum Power Consumption and Heat Dissipation
Minimum Power Consumption (Watts)	61	68	52	80
Minimum Heat Dissipation (BTU/hr)	207	230	179	271
Maximum Power Consumption (Watts)	2485	3941	173	207
Maximum Heat Dissipation (BTU/hr)	1110	1614	590	707
PoE Power Budget
1 x 1100W	871W	825W
2 x 1100W	1771W	1440W
1 x 2000W @ 200-240VAC	1771W	1440W
1 x 2000W @ 100-120VAC	871W	825W
2 x 2000W @ 100-120VAC	2160W	1440W
2 x 2000W @ 100-120VAC	1865W	1440W
