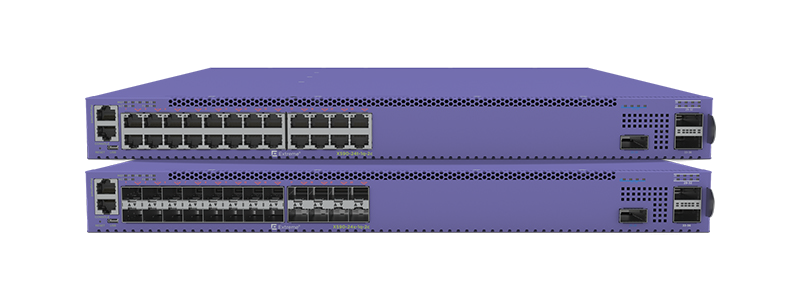

X460-G2 :: Edge Switching :: Switches :: Extreme :: Networking

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Sophos SonicWall, ServerMonkey offers the X460-G2 Series competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Performance/Scale
Latency (64-byte)	Less than 4 microseconds
Layer 2/MAC Addresses	98K
IPv4 LPM Entries	12K
IPv6 LPM Entries	6K
VLAN/VMANs	4096
Max Packet Size (Jumbo Frame)	9216 Bytes
Load Sharing Trunks	128, up to 32 members per trunk
Ingress Bandwidth Meters	4,096
Bandwidth Policing/Rate Limiting	Per flow/ACL for ingress and egress
QoS Egress Queues/Port	8
Egress Bandwidth Rate Shaping	Per egress queue and per port
Rate Limiting Granularity	8 Kbps
CPU/Memory
Processor	64-bit MIPS, 1 GHz clock
Memory	1GB ECC DDR3 DRAM
Flash	4GB eMMC
Packet Buffer	4MB
LED Indicators
Port Status LEDs	Including power status
System Status LEDs	Management, fan, and power
Environmental Specifications
Storage Standard	EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2
Transportation Standard	EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3
Operational Standard	EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e
Acoustic Noise	EN/ETSI 300 753 (1997-10)
Random Vibration Unpackaged	ASTM D3580 Random Vibration Unpackaged 1.5 G
Operating Conditions
Temperature	0° C to 50° C (32° F to 122° F)
Humidity	10% to 95% relative humidity, non-condensing
Altitude	0 to 3,000 meters (9,850 feet)
Shock (half sine)	30 m/s2 (3 G), 11 ms, 60 shocks
Random Vibration	3 to 500 Hz at 1.5 G rms
Packaging and Storage Specifications
Temperature	-40° C to 70° C (-40° F to 158° F)
Humidity	10% to 95% relative humidity, non-condensing
Packaged Shock	180 m/s2 (18 G), 6 ms, 600 shocks
Packaged Vibration	5 to 62 Hz at velocity 5 mm/s, 62 to 500 Hz at 0.2 G
Packaged Random Vibration	5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200 Hz
Packaged Drop Height	14 drops minimum on sides and corners at 42 inches (<15 kg box)
Regulatory and Safety
North American ITE	UL 60950-1 2nd Ed. (U.S.) CSA 22.2 #60950-1-03 2nd Ed. (Canada) FCC 21CFR 1040.10 (U.S. Laser Safety) CDRH Letter of Approval (US FDA Approval)
European ITE	EN 60950-1:2007 2nd Ed. EN 60825-1+A2:2001 (Lasers Safety) TUV-R GS Mark by German Notified Body 2006/95/EC Low Voltage Directive
International ITE	CB Report & Certificate per IEC 60950-1 2nd Ed. + National Differences AS/NZX 60950-1 (Australia /New Zealand)
EMI/EMC Standards
North American EMC for ITE	FCC CFR 47 part 15 Class A (USA) ICES-003 Class A (Canada)
European EMC Standards	EN 55022:2006+A1:2007 Class A EN 55024:A2-2003 Class A EN 61000-3-2,8-2006 (Harmonics) EN 61000-3-3 2008 (Flicker) ETSI EN 300 386 v1.4.1, 2008-04 (EMC Telecommunications) 2004/108/EC EMC Directive
International EMC Certifications	CISPR 22: 2006 Ed 5.2, Class A (International Emissions) CISPR 24:A2:2003 Class A (International Immunity) IEC 61000-4-2:2008/EN 61000-4-2:2009 Electrostatic Discharge, 8kV Contact, 15 kV Air, Criteria A IEC 61000-4-3:2008/EN 61000-4-3:2006+A1:2008 Radiated Immunity 10V/m, Criteria A IEC 61000-4-4:2004 am1 ed.2./EN 61000-4-4:2004/A1:2010 Transient Burst, 1 kV, Criteria A IEC 61000-4-5:2005 /EN 61000-4-5:2006 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria A IEC 61000-4-6:2008/EN 61000-4-6:2009 Conducted Immunity, 0.15-80 MHz, 10V/m unmod. RMS, Criteria A IEC/EN 61000-4-11:2004 Power Dips & Interruptions, >30%, 25 periods, Criteria C
Country Specific	VCCI Class A (Japan Emissions) ACMA (C-Tick) (Australia Emissions) CCC Mark (China) KCC Mark, EMC Approval (Korea)
Telecom Standards
EMC Telecommunications	ETSI EN 300 386:2001
Environmental for Telecommunications	ETSI EN 300 019
NEBS Level 3 Compliant	GR-1089 Issue 4 & GR-63 Issue 3
CE 2.0 Compliant	Yes
IEEE 802.3 Media Access Standards
IEEE 802.3ab	1000BASE-T
IEEE 802.3z	1000BASE-X
IEEE 802.3ae	10GBASE-X
IEEE 802.3at	PoE Plus
IEEE 802.3az	Energy-Efficient Ethernet (EEE)
