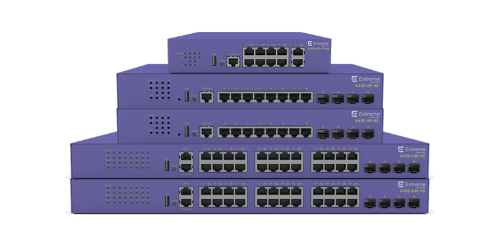

X435 Series :: Edge Switching :: Switches :: Extreme :: Networking

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Sophos SonicWall, ServerMonkey offers the X435 Series competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

	X435-8T-4S	X435-8P-4S	X435-8P-2T-W	X435-24T-4S	X435-24P-4S
Performance and Scaling
Max Active 10/100/1000BASE-T Ports	8	8	10	24	24
Max Active 1/ 2.5 GbE SFP Ports	4	4	-	4	4
Aggregated Switch Bandwidth	36 Gbps	36 Gbps	20 Gbps	68 Gbps	68 Gbps
Frame Forwarding Rate	26.8 Mpps	26.8 Mpps	14.9 Mpps	50.6 Mpps	50.6 Mpps
Systems	Layer 2/MAC Addresses: 16K 4096 VLANs/VMANs IPv4 LPM Entries: 32 IPv4 Hosts: 3100 IPv6 LPM Entries: 16 IPv6 Hosts: 500 IP Multicast groups: 64 IP Multicast (s,v,g) entries: 1500 9216 Byte Max Packet Size (Jumbo Frame) 8 queues per port 1K ingress ACL rules OnePolicy Scaling Up to 192 authenticated policy users per switch Policy Profiles: 63 Unique Permit/Deny Rules per switch: 184
External Ports/Slot
Ports/Slots	8 x 10/100/1000BASE-T ports Full / Half-Duplex (auto-sensing) 4 x 1/2.5GBASE-X SFP uplink ports (unpopulated) 1 x Serial (console port RJ-45) 1 x USB A port for external USB flash	8 x 10/100/1000BASE-T 802.3at (30W) PoE ports Full / Half-Duplex (auto-sensing) 4 x 1/2.5GBASE-X SFP uplink ports (unpopulated) 1 x Serial (console port RJ-45) 1 x USB A port for external USB flash	8 x 10/100/1000BASE-T 802.3at (30w) access ports Full / Half-Duplex (auto-sensing) 2 x 10/100/1000BASE-T 802.3bt Type 3/4 (60W/90W) PoE ports 1 x Serial (console port RJ-45) 1 x USB A port for external USB flash	24 x 10/100/1000BASE-T access ports Full / Half-Duplex (auto-sensing) 4 x 1/2.5GBASE-X SFP uplink ports (unpopulated) 1 x Serial (console port RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 1 x USB A port for external USB flash	24 x 10/100/1000BASE-T 802.3at (30W) PoE ports Full / Half-Duplex (auto-sensing) 4 x 1/2.5GBASE-X SFP uplink ports (unpopulated) 1 x Serial (console port RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 1 x USB A port for external USB flash
Physical Specifications
Dimensions	12.6in W / 1.71in H / 7.9in D 320mm x 43.5mm x 200mm	12.6in W / 1.71in H / 7.9in D 320mm x 43.5mm x 200mm	8.2in W / 1.73in H / 10.1in D 209.5mm x 44mm x 256.6mm	17.4in W / 1.73in H / 10.0in D 441mm x 43.5mm x 254m	17.4in W / 1.73in H / 10.0in D 441mm x 43.5mm x 254m
Net Weight	4.12 lb/1.87 kg	4.85 lb/2.2 kg	3.15 lb/1.43 kg	6.5 lb/2.95 kg	7.67 lb/3.48 kg
PoE Power Budget
Max PoE Budget		124W	100W³		370W
PoE Input link(s)⁴			2 x 90W - 100W 1 x 90W - 45W 2 x 60W - 65W 1 x 60W - 25W 2 x 30W - 25W 1 x 30W - 0W
