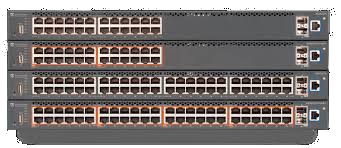

ERS 4900 Series :: Edge Switching :: Switches :: Extreme :: Networking

Home
Networking
Extreme
Switches
Edge Switching
ERS 4900 Series

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Sophos SonicWall, ServerMonkey offers the ERS 4900 Series competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

ERS 4950GTS Specifications
Hardware Summary
General	Physical Connectivity: 1000BASE-T Access Ports (supporting both Half- and Full-Duplex) 10GBASE-SFP+ Network Uplink Ports Switching Fabric: 188Gbps (Full-Duplex) for 50-port models Frame Forwarding: 102Mpps for 50-port models Nominal Latency: 3.5 microseconds for 64 Byte packets Nominal Jitter: 0.84 microseconds for 64 Byte packets Frame Length: 64 to 1518 Bytes (Untagged), 64 to 1522 Bytes (Tagged) Jumbo Frame: up to 9,216 Bytes (802.1Q Tagged) Stackable Chassis Throughput: 52Gbps (Full-Duplex) per Switch, up to 416Gbps
Layer 2	MAC Address: up to 32,768 Port-based VLANs: 1,024 MSTP Instances: 8 MLT/LACP Groups: 32 Links per MLT/LACP Group: 8 DHCP Snooping Entries: up to 1,024 802.1X Clients: up to 768 LLDP Neighbors: up to 800 Avaya SLPP Instances: 128
Layer 3 IPv4 Routing Services	ARP Entries: 1,792 Static ARP Entries: 256 IP Interfaces: 256 CLIP Interfaces: 16 IP Routes: to up 2,000 IP Static Routes: 512 RIP Interfaces: up to 64 RIP Routes: up to 2,000 OSPF Interfaces: up to 64 OSPF Routes: up to 2,000 OSPF Areas: 4 ECMP Groups: 128 Paths per ECMP Group: 4 VRRP Interfaces: 64 IP Route Policies: 128
Layer 3 IPv6 Routing Services	IPv6 Interfaces: 256 IP Routes: up to 2,048 IPv6 Static Neighbors: 256 CLIP Interfaces: 16 IPv6 Management Tunnels: 4 IPv6 Data Tunnels: 8
Multicast	IGMP Enabled VLANs: 256 PIM Passive Interface: 28 IP Multicast Groups: 512 PIM Active Interfaces: 4 PIM-SSM Static Channels: 512
Fabric Connect	IEEE 802.1aq/RFC 6329 Shortest Path Bridging with custom extensions MAC Addresses: 32,000 IS-IS Adjacencies: 4 Fabric Attach modes: Server, Proxy, & Standalone Proxy BCB/BEB Nodes per Region: 750 BEB Nodes per VSN: up to 750 (soft ceiling) L2 Virtual Service Networks: 500 IP Shortcut Routes: 2,000
QoS and Filtering	Priority Queues: 8 Ingress and Egress ACLs: up to 256 per Precedence, up to 16 Precedence instances
Operations and Management	Port- and VLAN-based Mirroring IPFIX Sampled Flows: up to 100,000 Enterprise Device Manager GUI, on-box & Mirroring Instances: 4 sFlow Flow Sampling off-box Time-Domain Reflectometry SSHv2 with AES128
Support Transceivers	10GBASE-LRM SFP+ (AA1403017-E6), up to 220m over FDDI-grade MMF 10GBASE-SR/SW SFP+ (AA1403015-E6), up to 300m over MMF 10GBASE-LR/LW SFP+ (AA1403011-E6), up to 10km over SMF 10GBASE-ER/EW SFP+ (AA1403013-E6), up to 40km over SMF 10GBASE-ZR/ZW SFP+ (AA1403016-E6), up to 80km over SMF 10GBASE-CX (AA1403019-E6) Dual-Attach Cable, up to 3m over Twinax 10GBASE-CX (AA1403020-E6) Dual-Attach Cable, up to 5m over Twinax 10GBASE-CX (AA1403021-E6) Dual-Attach Cable, up to 10m over Twinax
Physical Specifications
Dimensions	17.3 in (W) x 1.7 in (H) x 18.9 in (D) 440 mm x 44 mm x 480 mm
Weight	7.0-10.0kg
Power Specifications
	ERS 4950GTS Up to 58.88W, up to 0.44A, and up to 200.89BTU/hr @ 200-240VAC Up to 59.53W, up to 0.58A, and up to 203.11BTU/hr @ 100-110VAC 43.9W power consumption at idle, and 53.0W under typical traffic load ERS 4950GTS-PWR+ Up to 1,586.25W, up to 7.15A, and up to 584.30BTU/hr @ 200-240VAC Up to 1,660.07W, up to 15.15A, and up to 837.88BTU/hr @ 100-110VAC 65.9W power consumption at idle, and 73.4W under typical traffic load (excluding PoE draw)
Environmental Specifications
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0 to 95% maximum relative humidity, non- condensing
Storage Humidity	10 to 90% maximum relative humidity, non-condensing
Operating Altitude	0 to 3,048m (0 to 10,000ft) maximum
Storage Altitude	0 to 12,192m (0 to 40,000ft) maximum
Acoustic Noise	Less than 48dbA at 25°C Less than 61dbA at 50°C
Safety Agency Approvals	IEC 60950 International CB Certification EN 60950-1 Europe Safety (CE): CB Scheme Certification with Member Deviations UL 60950-1 USA Safety CSA-C22.2, #60950-1 Canada Safety NOM Mexico Safety EN 60950-1 Japan Safety Anatel Brazilian Safety ACMA-RCM Australia Safety Customs Union/EAC Safety of Low-Voltage Equipment Certification CCC & MIIT China Safety CNS 14336-1 Taiwan BSMI Safety UL 1069 Hospital Signaling and Nurse Call Equipment (relevant to PWR units only)
Electromagnetic Emissions and Immunity	CISPR 22 International EMC Emissions CIRPR 24 International EMC Immunity FCC part 15B, Class A USA EMC Emissions ICES-003 Class A Canadian EMC Emissions VCCI Japan EMC Emissions EN 55022 Class A, CISPR 22 European EMC Emissions (CE) EN 55024, CISPR 24 including EN 61000-4-2, 4-3, 4-4, 4-5, 4-6, 4-8 & 4-11 European EMC Immunity (CE) ACMA-RCM Mark Australia EMC Emissions Anatel Brazilian EMC Certification Customs Union/EAC EMC Certification CCC & MIIT China EMC Certification KC mark: EMI & EMS Korean EMC Certification CNS 13438 Taiwan BSMI EMC
MTBF Values	ERS 4950GTS – 199,834 hours (22.81 years) ERS 4950GTS-PWR+ – 195,578 hours (22.32 years)
