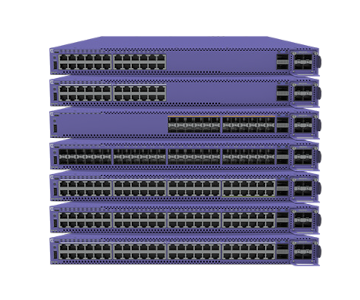

5520 Series :: Edge Switching :: Switches :: Extreme :: Networking

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Sophos SonicWall, ServerMonkey offers the 5520 Series competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

	5520-24X
Hardware Summary
Interfaces	24 x 100M/1G/10GBase-X (SFP+) ports (unpopulated) 2 x Stacking/QSFP28 ports* (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 2 x USB A ports for management or external USB flash 1 x USB Micro-B console port 1 x VIM slot
Performance and Scale
Max Active 10/100/ 1000Mb Ports	0
Max Active 100Mb/1Gb/ 2.5Gb Ports	0
Max Active 100Mb/1Gb SFP ports	0
Max Active 1/10Gb SFP+ Ports¹	36
Max Active 25Gb SFP28 Ports¹	12
Max Active 40Gb QSFP+ Ports²	2
Max Active 50Gb Ports²	4
Max Active 40Gb Stacking Ports³	2
Aggregated Switch Bandwidth	1080 Gbps
Frame Forwarding Rate	803.5 mpps
Physical
Dimensions	Chassis Only: 17.4 in (W) x 1.7 in (H) x 17.4 in (D) 441 mm x 44 mm x 442 mm With PSU: 17.4 in (W) x 1.7 in (H) x 18.1 in (D) 441 mm x 44 mm x 449 mm
Weight	13.8 lb / 6.25 kg
Power Supply Unit Specifications
Voltage Input Range (Nominal)	350W AC PSU: 100-127/200-240 VAC 715W AC PSU: 100-127/200-240 VAC 1100W AC PSU: 100-127/200-240 VAC 2000W AC PSU⁴: 100-127/200-240 VAC
Line Frequency Range	350W AC PSU: 47 to 63 Hz 715W AC PSU: 47 to 63 Hz 1100W AC PSU: 47 to 63 Hz 2000W AC PSU⁴: 47 to 63 Hz
Power Supply Input Socket	350W AC PSU: IEC/EN 60320 C14 715W AC PSU: IEC/EN 60320 C16 1100W AC PSU: IEC/EN 60320 C16 2000W AC PSU⁴: IEC/EN 60320 C16
Power Cord Input Plug	350W AC PSU: IEC/EN 60320 C15 715W AC PSU: IEC/EN 60320 C15 1100W AC PSU: IEC/EN 60320 C15 2000W AC PSU⁴: IEC/EN 60320 C15
Operating Temperature	350W AC PSU: 0° C to 50° C Normal Operation 715W AC PSU: 0° C to 50° C Normal Operation 1100W AC PSU: 0° C to 50° C Normal Operation 2000W AC PSU⁴: 0° C to 45° C⁵
Minimum/Maximum Power Consumption and Heat Dissipation
Minimum Power Consumption (Watts)	48
Minimum Heat Dissipation (BTU/hr)	165
Maximum Power Consumption (Watts)⁶	171
Maximum Heat Dissipation (BTU/hr)⁷	585
Fan and Acoustic Noise
Typical	Single 350W AC PSU, no VIM
Maximum	Dual 350W AC PSU, 5520-VIM-4YE
Bystander Sound Pressure	40.6dB(A), 0˚C to 35˚C (Typical) 76.9 dB(A), 50˚C (Maximum)
Sound Power	5.05 B, 0˚C to 35˚C (Typical) 8.52 B, 50˚C (Maximum)
Environmental
Environmental Specifications	EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2 Storage EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3 Transportation EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e Operational EN/ETSI 300 753 (1997-10) - Acoustic Noise ASTM D3580 Random Vibration Unpackaged 1.5 G
Environmental Compliance	EU RoHS - 2011/65/EU EU WEEE - 2012/19/EU EU REACH – Regulation (EC) No 1907/2006 Reporting China RoHS - SJ/T 11363-2006 Taiwan RoHS - CNS 15663(2013.7)
Operating Conditions	Temp: 0° C to 50° C (32° F to 122° F) Humidity: 10% to 95% relative humidity, non-condensing Altitude: 0 to 3,000 meters (9,850 feet) Shock (half sine) 30m/s2 (3G), 11ms, 60 shocks Random vibration: 3 to 500 Hz at 1.5 G rms
Packaging and Storage Specifications	Temp: -40° C to 70° C (-40° F to 158° F) Humidity: 10% to 95% relative humidity, non-condensing Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks Packaged Vibration: 5 to 62 Hz at velocity 5 mm/s, 62 to 500 Hz at 0.2 G Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200 Hz Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)
Regulatory and Safety	North American ITE UL 60950-1 UL/CuL 62368-1 Listed Complies with FCC 21CFR 1040.10 (U.S. Laser Safety) CDRH Letter of Approval (US FDA Approval) CAN/CSA 22.2 No. 60950-1 European ITE EN 60950-1, EN 62368-1 EN 60825-1 Class 1 (Lasers Safety) 2014/35/EU Low Voltage Directive International ITE CB Report and Certificate per IEC 60950-1 IEC 62368-1
EMI/EMC Standards	North American EMC for ITE FCC CFR 47 Part 15 Class A (USA) CB Report and Certificate IEC 62368-1 RoHS Directive 2011/65/EU AS/NZS 60950-1 (Australia /New Zealand) European EMC Standards EN 55032 Class A EN 55024 EN 55011 EN 61000-3-2,2014 (Harmonics) EN 61000-3-3 2013 (Flicker) EN 300 386 (EMC Telecommunications) 2014/30/EU EMC Directive International EMC Certifications CISPR 32, Class A (International Emissions) AS/NZS CISPR32 CISPR 24 Class A (International Immunity) IEC 61000-4-2/EN 61000-4-2 Electrostatic Discharge, 8kV Contact, 15 kV Air, Criteria B IEC 61000-4-3 /EN 61000-4-3 Radiated Immunity 10V/m, Criteria A IEC 61000-4-4/EN 61000-4-4 Transient Burst, 1 kV, Criteria AB IEC 61000-4-5 /EN 61000-4-5 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria B IEC 61000-4-6 Conducted Immunity, 0.15-80 MHz, 10V/m unmod. RMS, Criteria A IEC/EN 61000-4-11 Power Dips & Interruptions, >30%, 25 periods, Criteria C
Country Specific	VCCI Class A (Japan Emissions) ACMA RCM (Australia Emissions) CCC Mark (China) KCC Mark, EMC Approval (Korea) EAC Mark (Custom Union) NRCS Mark (South Africa) BSMI Mark (Taiwan) Anatel (Brazil) NoM (Mexico)
IEEE 802.3 Media Access Standards	IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3bt Type4 PoE IEEE 802.3ae 10GBASE-X IEEE 802.3aq 10GBASE-LRM IEEE 802.3by 25GBASE-X IEEE 802.3ba/802.3bm 40GBASE-X and 100GBASE-X IEEE 802.3az Energy Efficient Ethernet
