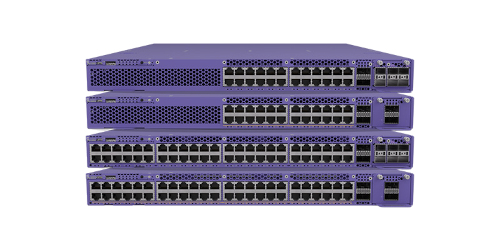

5420 Series :: Edge Switching :: Switches :: Extreme :: Networking

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Sophos SonicWall, ServerMonkey offers the 5420 Series competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

	5420F-24T-4XE
Hardware Summary
Interfaces	24 x 100/1000Base-X (SFP) ports (unpopulated) MACsec-capable 4 x 1/10Gb SFP+ uplink ports (unpopulated) MACsec-capable 2 x Stacking/SFP-DD ports* (unpopulated) 1 x Serial console port (RJ-45) 1 x 10/100/1000BASE-T out-of-band management port 2 x USB A ports for management or external USB flash 1 x USB Micro-B console port
Performance and Scale
Max Active 10/100/ 1000Mb Ports	0
Max Active 100Mb/1Gb/ 2.5Gb Ports	0
Max Active 100Mb/1Gb SFP ports	24
Max Active 1/10Gb SFP+ Ports¹	6
Max Active 1/10/25Gb SFP28 Ports	0
Max Active 20Gb Stacking Ports²	2
Aggregated Switch Bandwidth	208 Gbps
Frame Forwarding Rate	154.8 mpps
Physical
Dimensions	17.4 in (W) x 1.7 in (H) x 11.3 in (D) 441 mm x 44 mm x 287 mm
Weight	9.08 lb/4.12 kg
Internal Fixed and Secondary Power Supply Options
Internal Fixed Power Supply Unit (PSU)³	150W AC PSU
Secondary Power Supply Unit (PSU)⁴	XN-ACPWR-150W
Minimum/Maximum Power Consumption and Heat Dissipation
Minimum Power Consumption (Watts)	35
Minimum Heat Dissipation (BTU/hr)	119
Maximum Power Consumption (Watts)	114
Maximum Heat Dissipation (BTU/hr)	388
Acoustic Noise
Bystander Sound Pressure – dB(A)⁷	1 PSU: 39.7 2 PSUs: 39.6
Declared Sound Power – Bels⁷	1 PSU: 5.21 2 PSUs: 5.22
Environmental
Environmental Specifications	EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2 Storage EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3 Transportation EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e Operational EN/ETSI 300 753 (1997-10) - Acoustic Noise ASTM D3580 Random Vibration Unpackaged 1.5 G
Environmental Compliance	EU RoHS - 2011/65/EU EU WEEE - 2012/19/EU EU REACH – Regulation (EC) No 1907/2006 Reporting China RoHS - SJ/T 11363-2006 Taiwan RoHS - CNS 15663(2013.7)
Operating Conditions	Temp: 0° C to 50° C (32° F to 122° F) Humidity: 10% to 95% relative humidity, non-condensing Altitude: 0 to 3,000 meters (9,850 feet) Shock (half sine) 30m/s2 (3G), 11ms, 60 shocks Random vibration: 3 to 500 Hz at 1.5 G rms
Packaging and Storage Specifications	Temp: -40° C to 70° C (-40° F to 158° F) Humidity: 10% to 95% relative humidity, non-condensing Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks Packaged Vibration: 5 to 62 Hz at velocity 5 mm/s, 62 to 500 Hz at 0.2 G Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200 Hz Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)
Regulatory and Safety	North American ITE UL 60950-1 UL/CuL 62368-1 Listed CSA 22.2 No. 60950-1 2nd edition 2014 (Canada) Complies with FCC 21CFR 1040.10 (U.S. Laser Safety) CDRH Letter of Approval (US FDA Approval)
EMI/EMC Standards	North American EMC for ITE FCC CFR 47 Part 15 Class A (USA) ICES-003 Class A (Canada)
Country Specific	VCCI Class A (Japan Emissions) ACMA RCM (Australia Emissions) CCC Mark (China) KCC Mark, EMC Approval (Korea) BSMI (Taiwan) Anatel (Brazil) NoM (Mexico) EAC (Russia, Belarus, Kazkhastan) NRCS (South Africa)
IEEE 802.3 Media Access Standards	IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3bt Type4 PoE IEEE 802.3ae 10GBASE-X IEEE 802.3aq 10GBASE-LRM IEEE 802.3by 25GBASE-X IEEE 802.3az Energy Efficient Ethernet
