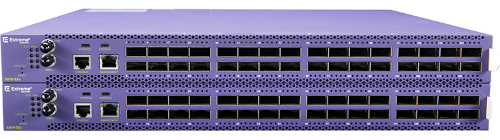

Extreme X870 Series

CONTACT US TO LEARN MORE

ABOUT Extreme X870 Series

Get to Know Us

Resources

What We Do

Customer Service

Follow Us

	X870 -32c	X870 -96x-8c
Ports	32 x QSFP28 10Gb/25Gb/40Gb/50Gb/100Gb ports Up to 32 x 100Gb Ethernet ports Up to 64 x 50Gb Ethernet ports Up to 128 x 25Gb Ethernet ports Up to 32 x 40Gb Ethernet ports Up to 128 x 10Gb Ethernet ports 1x Serial console port RJ-45 1x 10/100/1000BASE-T out-of-band management port Micro-USB Type B console port Micro-USB Type A storage port	96 10Gb Ethernet ports configured via 4 x 10Gb Ethernet 24 x QSFP port s configured for 4 x 10 Gb Ethernet (using QSFP+ 4x10 Gb Ethernet breakout) Optional port speed licenses enable port s to support unrestricted 10/25/40/50/100Gb operation 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports 8 x QSFP28 10Gb/25Gb/40Gb/50Gb/100Gb ports up to 8 x 100Gb Ethernet channels up to 16 x 50Gb Ethernet channels up to 32 x 25Gb Ethernet channels up to 8 x 40Gb Ethernet channels up to 32 x 10Gb Ethernet channels 1x Serial console port RJ-45 1x 10/100/1000BASE-T out-of-band management port Micro-USB Type B console port Micro-USB Type A storage port
Power Supplies	Modular 770W AC power supply (up to two PSUs) Modular 1100W DC power supply (up to two PSUs) Front-Back and Back-Front airflow options	Modular 770W AC power supply (up to two PSUs) Modular 1100W DC power supply (up to two PSUs) Front-Back and Back-Front airflow options
Fan Modules	6 fan modules Front-Back and Back-Front airflow options	6 fan modules Front-Back and Back-Front airflow options
Dimensions	17.3in W / 20 .5in D / 1.7in H (44.0 cm / 52.0 cm / 4.3cm)	17.3in W / 20 .5in D / 1.7in H (44.0 cm / 52.0 cm / 4.3cm)
Weight	18.9 lbs / 8.6 Kg (base system)	18.9 lbs / 8.6 Kg (base system)
Performance	6.4Tbps Switching Capacit y / 3.17Bpps Forwarding Rate	6.4Tbps Switching Capacit y / 3.17Bpps Forwarding Rate
CPU Memory	2.4GHz Quad core CPU 8GB DDR3 ECC memory 32GB SSD memory	2.4GHz Quad core CPU 8GB DDR3 ECC memory 32GB SSD memory
Packet Buffers	16MB	16MB
Operating Conditions	0 º - 45ºC operation 10 % to 95% relative humidity, non-condensing 0 - 3000 meters altitude Shock (half sine): 98 m/ s2 (10 G), 11ms, 9 shocks Random vibration: 3 to 500Hz at 1.5 G rms
Power and Heat Dissipation
Minimum Heat Dissipation (BTU/hr) (Idle, no ports linked)	AC: 601 BTU/hr DC: 629 BTU/hr	AC: 601 BTU/hr DC: 629 BTU/hr
Minimum Power Consumption (Watt s) (Idle, no ports linked)	AC: 176 W DC: 184 W	AC: 176 W DC: 184 W
Maximum Heat Dissipation (BTU/hr) (Fans high, all ports 100% traffic)	AC: 1614 BTU/hr DC: 1598 BTU/hr	AC: 1614 BTU/hr DC: 1598 BTU/hr
Maximum Power Consumption (Watts) (Fans high, all ports 100% traffic)	AC: 473 W DC: 469 W	AC: 473 W DC: 469 W
Acoustic Specifications
Bystander Sound Pressure (Front-Back Airflow)	54.8 dB(A) up to 30 ºC 57.5 dB(A) up to 40 ºC 76.5 dB(A) @ 45ºC (max)	54.8 dB(A) up to 30 ºC 57.5 dB(A) up to 40 ºC 76.5 dB(A) @ 45ºC (max)
Bystander Sound Pressure (Back-Front Airflow)	58.9 dB(A) up to 30 ºC 62.8 dB(A) up to 40 ºC 76.4 dB(A) @ 45ºC (max)	58.9 dB(A) up to 30 ºC 62.8 dB(A) up to 40 ºC 76.4 dB(A) @ 45ºC (max)
Declared Sound Power (Front-Back Airflow)	7.0 bels up to 30 ºC 7.2 bels up to 40 ºC 9.2 bels @ 45ºC (max)	7.0 bels up to 30 ºC 7.2 bels up to 40 ºC 9.2 bels @ 45ºC (max)
Declared Sound Power (Back-Front Airflow)	7.4 bels up to 30 ºC 7.8 bels up to 40 ºC 9.1 bels @ 45ºC (max)	7.4 bels up to 30 ºC 7.8 bels up to 40 ºC 9.1 bels @ 45ºC (max)
