As a trusted Extreme, ServerMonkey offers the Extreme X690 Series competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

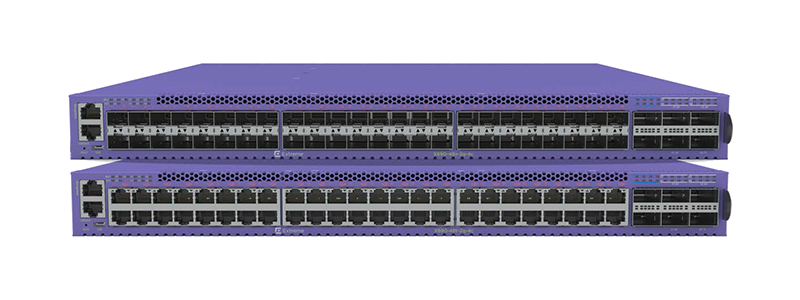

	X690-24x-1q-2c	X690-24t-1q-2c
Ports	48 1Gb/10Gb SFP+ ports 2 10Gb/40Gb QSFP+ ports 4 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports 1x Serial console port RJ-45 1x 10/100/1000BASE-T out-of-band management port Micro-USB Type A storage port QSFP Port Configurations Support 4 10Gb/40Gb QSFP+ and 2 10Gb / 25Gb / 40Gb / 50Gb / 100Gb QSFP28 ports or 4 10Gb / 25Gb / 40Gb / 50Gb / 100Gb QSFP28 ports (two QSFP port inactive)	48 100Mb/1Gb/10Gb 10GBASE-T ports 2 10Gb/40Gb QSFP+ ports 4 10Gb/25Gb/40Gb/50Gb/100Gb QSFP28 ports 1x Serial console port RJ-45 1x 10/100/1000BASE-T out-of-band management port Micro-USB Type A storage port QSFP Port Configurations Support 4 10Gb/40Gb QSFP+ and 2 10Gb / 25Gb / 40Gb / 50Gb / 100Gb QSFP28 ports or 4 10Gb / 25Gb / 40Gb / 50Gb / 100Gb QSFP28 ports (two QSFP port inactive)
Power Supplies	Modular 770W AC power supply (up to two PSUs) Modular 1100W DC power supply (up to two PSUs) Front-Back and Back-Front airflow options	Modular 770W AC power supply (up to two PSUs) Modular 1100W DC power supply (up to two PSUs) Front-Back and Back-Front airflow options
Fan Modules	6 fan modules Front-Back and Back-Front airflow options	6 fan modules Front-Back and Back-Front airflow options
Dimensions	17.4in W / 19.2in D / 1.7in H (44.1cm / 48.8cm / 4.3cm)	17.4in W / 19.2in D / 1.7in H (44.1cm / 48.8cm / 4.3cm)
Performance	1.76Tbps Switching Capacity / 759Mpps Forwarding Rate Average Latency: 800 ns	1.76Tbps Switching Capacity / 759Mpps Forwarding Rate Average Latency: 2.3 µsec
CPU Memory	2.4GHz Quad core CPU 8GB DDR3 ECC memory 32GB SSD memory	2.4GHz Quad core CPU 8GB DDR3 ECC memory 32GB SSD memory
Packet Buffers	12MB	12MB
MTBF	435,074 hours	337,871hours
Operating Conditions	0 º - 45ºC operation 10 % to 95% relative humidity, non-condensing 0 - 3000 meters altitude Shock (half sine): 98 m/ s2 (10 G), 11ms, 9 shocks Random vibration: 3 to 500Hz at 1.5 G rms
Power and Heat Dissipation
Minimum Heat Dissipation (BTU/hr) (Idle, no ports linked)	AC: 282 BTU/hr DC: 311 BTU/hr	AC: 425 BTU/hr DC: 421 BTU/hr
Minimum Power Consumption (Watt s) (Idle, no ports linked)	AC: 83 W DC: 91 W	AC: 125 W DC: 123 W
Maximum Heat Dissipation (BTU/hr) (Fans high, all ports 100% traffic)	AC: 1124 BTU/hr DC: 1178 BTU/hr	AC: 1271 BTU/hr DC: 1315 BTU/hr
Maximum Power Consumption (Watts) (Fans high, all ports 100% traffic)	AC: 329 W DC: 345 W	AC: 373 W DC: 385 W
Acoustic Specifications
Bystander Sound Pressure (Front-Back Airflow)	55.4 dB(A) up to 30 ºC 61.3 dB(A) up to 40 ºC 76.8 dB(A) @ 45ºC (max)	58 dB(A) up to 25ºC 72.8 dB(A) up to 35ºC 76.3 dB(A) @ 45ºC (max)
Bystander Sound Pressure (Back-Front Airflow)	56.9 dB(A) up to 30 ºC 63.3 dB(A) up to 40 ºC 77.4 dB(A) @ 45ºC (max)	59.1 dB(A) up to 25ºC 72.8 dB(A) up to 35ºC 76.3 dB(A) @ 45ºC (max)
Declared Sound Power (Front-Back Airflow)	6.9 bels up to 30 ºC 7.5 bels up to 40 ºC 9.0 bels @ 45ºC (max)	7.2 bels up to 25ºC 8.7 bels up to 35ºC 9.0 bels @ 45ºC (max)
Declared Sound Power (Back-Front Airflow)	7.1 bels up to 30 ºC 7.7 bels up to 40 ºC 9.1 bels @ 45ºC (max)	7.3 bels up to 25ºC 8.7 bels up to 35ºC 9.0 bels @ 45ºC (max)
