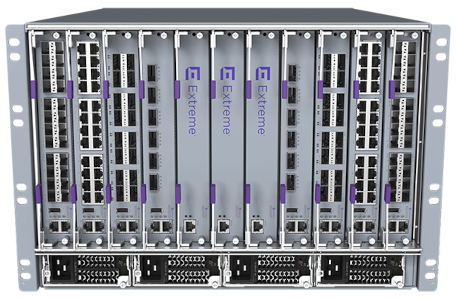

As a trusted Extreme, ServerMonkey offers the Extreme VSP 8600 competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Category	Specification
Physical Connectivity	Up to 48 ports of 100GBASE-QSFP28 Up to 128 ports of 40GBASE-QSFP+ Up to 192 ports of 10GBASE-SFP+ or 10GBASE-T
Switch Fabric Capacity	7.2Tbps per Switch Fabric Module, up to 21.6Tbps Switching Capacity per IOC Module: up to 1.44Tbps
Channelization	100 Gigabit ports: 1x40Gbps, 4x25Gbps, 4x10Gbps 40 Gigabit ports: 4x10Gbps
Frame Forwarding Rate	Up to 952.32Mpps per Slot
Jumbo Frame Support	Up to 9,600 Bytes (802.1Q Tagged)
MACsec Link Layer Encryption	10 Gigabit (8624XS SFP+ only) 100 Gigabit
Layer 2	MAC Address: 256,000 Port-based VLANs: 4,059 MSTP Instances: 64 MLT/LACP Groups: up to 192 MLT Links per Group: 8 Extreme Networks VLACP Interfaces: up to 128 Extreme Networks SLPP VLANs: 500
Layer 3 IPv4 Routing Services	ARP Entries: 64,000 Static ARP Entries: 2000 per VRF, 10,000 per switch IP Interfaces: 4,059 CLIP Interfaces: 64 IP Routes: up to 252,000 IP Static Routes: 2,000 per VRF, 10,000 per switch RIP Interfaces: 200 OSPF Interfaces: 500 Active/2,000 Passive OSPF Areas: 12 per VRF, 80 per switch BGP Peers: 256 BGP RIB Routes: 1,500,000 (Control Plane only) ECMP Unique Groups: 1,000 ECMP Paths per Group: 8 VRRP Interfaces: 512 RSMLT Interfaces: up to 1,000 IPv4 UDP Forwarding Entries: 1,024 IPv4 DHCP Relay Forwarding Entries: 1,024 IP Route Policies: 2,000 per VRF and 16,000 per switch VRF Instances: 512
Layer 3 IPv6 Routing Services	Neighbors: 16,000 Static Neighbors: 1,000 IP Interfaces: up to 4,059 CLIP Interfaces: 64 IP Configured Tunnels: 16 IP Routes: up to 32,000 IP Static Routes: 10,000 RIPng Interfaces: 48 RIPng Routes: up to 16,000 OSPFv3 Interfaces: 500 Active/2,000 Passive OSPFv3 Routes: up to 32,000 OSPFv3 Areas: 64 ECMP Groups: 1,000 ECMP Paths per Group: 8 VRRP Interfaces: up to 512 RSMLT Interfaces: up to 1,000
Multicast	IGMP Interfaces: 4,000 PIM Interfaces: 512 Active/3,000 Passive IGMP Senders/Receivers: 6,000 Unique S,G,V IP Multicast Groups per BCB: up to 50,000 PIM Multicast Routes: 6,000 Unique S,G,V Static Multicast Routes: up to 4,000 PIM-SSM Static Channels: up to 4,000
Fabric Connect	802.1aq/RFC 6329 Shortest Path Bridging with Extreme Networks extensions MAC Address: 256,000 NNI Interfaces/Adjacencies: up to 192 Equal Cost Trees: 2 BCB/BEB Nodes per Region: 2,000 L2 Virtual Service Networks: 4,000 L3 Virtual Service Networks: up to 512 IP Shortcut Routes: up to 16,000 L2 Multicast UNI ISIDs: 6,000 L3 Multicast UNI ISIDs: 6,000
QoS and Filtering	Total ACEs per IOC: 3,500 (2,000 IPv4 and 1,500 IPv6) Ingress and 2,000 Egress Total ACLs: 2,000 Ingress and 1,000 Egress
Operations and Management	EDM On/Off-Box SNMP v1/2/3 ACLI RADIUS, Community-based Users Terminal Access Controller Access-Control System, TACACS+ Key Health Indicator (KHI) Logging (log to file and syslog) RMON Mirroring (port- and flow-based) Telnet Server/Client Trivial File Transfer Protocol (TFTP)Server/Client File Transfer Protocol (FTP) Server/Client Secure Shell (SSH) v1 and v2 Server/Client Secure Copy (SCP) Remote Shell (RSH) Server/Client Remote Login (Rlogin) Server/Client Domain Name Service (DNS) Client Network Time Protocol (NTP) SoNMP (Extreme Networks Topology Discovery Protocol) Extreme Networks Virtual Link Aggregation Control Protocol (VLACP) Extreme Networks Simple Loop Prevention Protocol (SLPP) IEEE 802.1ag Connectivity Fault Management L2 Ping TraceRoute
