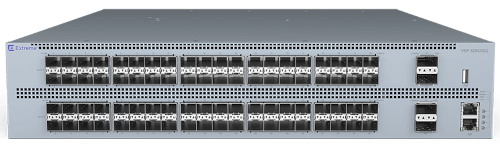

As a trusted Extreme, ServerMonkey offers the Extreme VSP 8400 competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Category	Specification
Physical Connectivity	Up to 8 x 100GBASE-QSFP28 Ports Up to 24 x 40GBASE-QSFP+ Ports Up to 96 x 10GBASE-SFP+ Ports Up to 96 x 10GBASE-T Ports Up to 96 x 1000BASE-SFP Ports Up to 96 x 1000BASE-T Ports Channelization of 40 Gigabit ports
Switch Fabric Architecture	2.56Tbps Full-Duplex
Frame Forwarding Rate	1,428Mpps per Switch
Jumbo Frame Support	Up to 9,600 Bytes (802.1Q Tagged)
MACsec Support	For 10 Gigabit and Channelized 40 Gigabit ports
Layer 2	MAC Address: 224,000 Port-based VLANs: 4,059 Private VLANs/E-Tree: Up to 400 MSTP Instances: 12 MLT/LACP Groups: up to 96 MLT Links per Group: 8 LACP Links per Group: 8 Active Extreme Networks VLACP Interfaces: up to 96 Extreme Networks SLPP VLAN's: 128
Layer 3 IPv4 Routing Services	ARP Entries: 32,000 Static ARP Entries: 2000 per VRF, 10,000 per switch IP Interfaces: Up to 506 CLIP Interfaces: 64 IP Routes: up to 15,488 IP Static Routes: 1,000 per VRF, 5000 per switch RIP Interfaces: 200 RIP Routes: up to 15,488 OSPF Interfaces: 500 OSPF Routes: up to 15,488 OSPF Areas: 12 per VRF, 80 per switch BGP Peers: 12 BGP Routes: up to 15,488 ECMP Groups: 1,000 ECMP Paths per Group: 8 NLB Clusters: 200 VRRP Interfaces: 252 RSMLT Interfaces: 252 IPv4 UDP Forwarding Entries: 512 IPv4 DHCP Relay Forwarding Entries: 1024 IP Route Policies: 500 per VRF, 5,000 per switch VRF Instances: up to 256
Layer 3 IPv6 Routing Services	Neighbors: 8,000 Static Neighbors: 128 per VRF, 256 per switch IP Interfaces: Up to 506 CLIP Interfaces: 64 IP Configured Tunnels: 506 IP Routes: up to 7,744 IP Static Routes: 1,000 RIPng Interfaces: 48 RIPng Routes: up to 7,744 OSPFv3 Interfaces: 500 OSPFv3 Routes: up to 7,744 OSPFv3 Areas: 12 per VRF, 80 per switch BGPv6 Peers: 24 ECMP Groups: 1,000 ECMP Paths per Group: 8 VRRP Interfaces: 252 RSMLT Interfaces: 252 DHCP Relay Forwarding: 512 VRF Instances: up to 256
Multicast	IGMP Interfaces: 4,059 PIM Active Interfaces: 128 MLD Interfaces: 4,059 Static Multicast Routes: 4,000 BCB IP Multicast S,G Streams: 16,000 PIM-SSM Static Channels: 4,000 IP Multicast Streams: 6,000 IP Multicast Streams (Fabric Connect-PIM Gateway Nodes): 3,000 Fabric Connect-PIM Gateway Controllers per Region: 5 Fabric Connect-PIM Gateway Nodes per Region: 64 Fabric Connect-PIM Gateway Interfaces per BEB Node: 64 Fabric Connect-PIM Gateway Source Announcements: 6,000
Fabric Connect	802.1aq/RFC 6329 Shortest Path Bridging with Extreme Networks extensions MAC Address: 112,000 NNI Interfaces/Adjacencies: Up to 255 BCB/BEB Nodes per Region: 800 Transparent UNI Ports/Switch: 96 BEB Nodes per VSN: 500 L2 Virtual Service Networks: 4,059 L3 Virtual Service Networks: up to 256 IP Shortcut Routes: IPv4 15,488, and IPv6 7,488 DvR Domains per Region: 16 DvR-enabled L2 VSNs: up to 502 DvR Controllers per Domain: 8 DvR Leafs per Domain: 250 DvR Interfaces: up to 502 DvR Routes: up to 32,000 L2 Multicast Virtual Service Networks: Up to 2,000 L3 Multicast Virtual Service Networks: 256 VXLAN Gateway VTEP Destinations per Node: 500 VXLAN Gateway VNI IDs per Node: Up to 4,000 Fabric Attach VLAN/VSN Assignments per Port: 94
QoS and Filtering	IPv4 ACE: Up to 3070 Ingress and 251 Egress IPv6 ACE: 256 Ingress L2-L4 Ingress Port Rate Limiters: up to 96 Egress Port Shaper Granularity: 1Mbps to 40Gbps per Port
Operations and Management	Mirrored Ports: up to 95 sFlow: up to 3,000 samples per second Fabric RSPAN: up to 1,000 VSN IDs per Region
Supported Transceivers	100 Gigabit Ethernet 100GBASE-QSFP28 Passive Copper Direct Attach Cable – 1, 3m, 5m 100GBASE-SR4 QSFP28, up to 100m over MMF 100GBASE-CWDM QSFP28, up to 2km over SMF 100GBASE-LR4 QSFP28, up to 10km over SMF 40 Gigabit Ethernet 40GBASE-QSFP+ Passive Copper Direct Attach Cables – 0.5m, 1m, 3m, 5m 40GBASE-QSFP+ Passive Copper Break-Out Cables – 1m, 3m, 5m 40GBASE-QSFP+ Active Optical Break-Out Cable – 7m, 10m, 15m 40GBASE-QSFP+ Active Optical Direct Attach Cable – 10m 40GBASE-LM4 QSFP+, up to 80m over MMF 40GBASE-SR Bi-Directional QSFP+, up to 125m over MMF 40GBASE-SR4/4x10GBASE-SR QSFP+ up to 150m over MMF 40GBASE-LR4 QSFP+, up to 10km over SMF 40GBASE-LR4 Parallel Single-Mode QSFP+, up to 10km over SMF 40GBASE-ER4 QSFP+, up to 40km over SMF
