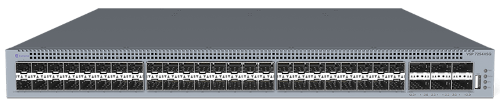

As a trusted Extreme, ServerMonkey offers the Extreme VSP 7200 competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

Category	Specifications
Physical Connectivity	48 x 10GBASE-SFP+ Ports 6 x 40GBASE-QSFP+ Ports Channelization of 40 Gigabit ports Switch Fabric Architecture: 2.56Tbps Full-Duplex Frame forwarding rate: 1,428Mpps per Switch Nominal Latency: <480nsec Jumbo Frame support: up to 9,600 Bytes (802.1Q Tagged)
Layer 2	MAC Address: 224,000 Port-based VLANs: 4,059 Private VLANs/E-Tree: up to 200 MSTP Instances: 12 MLT/LACP Groups: up to 72 MLT Links per Group: 8 LACP Links per Group: 8 Active Extreme Networks VLACP Interfaces: 54, and up to 72 when all 40 Gigabit ports are Channelized Extreme Networks SLPP VLANs: 128
Layer 3 IPv4 Routing Services	ARP Entries: 32,000 Static ARP Entries: 2000 per VRF, 10,000 per switch IP Interfaces: up to 506 CLIP Interfaces: 64 IP Routes: up to 15,488 IP Static Routes: 1,000 per VRF, 5000 per switch RIP Interfaces: 200 RIP Routes: up to 15,488 OSPF Interfaces: 500 OSPF Routes: up to 15,488 OSPF Areas: 12 per VRF, 80 per switch BGP Peers: 12 BGP Routes: up to 15,488 ECMP Groups: 1,000 ECMP Paths per Group: 8 NLB Clusters: 200 VRRP Interfaces: 252 RSMLT Interfaces: 252 IPv4 UDP Forwarding Entries: 512 IPv4 DHCP Relay Forwarding Entries: 1024 IP Route Policies: 500 per VRF, 5,000 per switch DHCP Relay Forwarding: 512 VRF Instances: up to 256
Layer 3 IPv6 Routing Services	Neighbors: 8,000 Static Neighbors: 128 per VRF, 256 per switch IP Interfaces: up to 506 CLIP Interfaces: 64 IP Configured Tunnels: 506 IP Routes: up to 7,744 IP Static Routes: 1,000 RIPng Interfaces: 48 RIPng Routes: up to 7,744 OSPFv3 Interfaces: 500 OSPFv3 Routes: up to 7,744 OSPFv3 Areas: 80 per switch BGPv6 Peers: 24 ECMP Groups: 1,000 ECMP Paths per Group: 8 VRRP Interfaces: up to 252 RSMLT Interfaces: up to 252 VRF Instances: up to 256
Multicast	IGMP Interfaces: 4,059 PIM Active Interfaces: 128 MLD Interfaces: 4,059 Static Multicast Routes: 4,000 BCB IP Multicast S,G Streams: 16,000 PIM-SSM Static Channels: 4,000 IP Multicast Streams: 6,000 IP Multicast Streams (Fabric Connect-PIM Gateway Nodes): 3,000 Fabric Connect-PIM Gateway Controllers per Region: 5 Fabric Connect-PIM Gateway Nodes per Region: 64 Fabric Connect-PIM Gateway Interfaces per BEB Node: 64 Fabric Connect-PIM Gateway Source Announcements: 6,000
Fabric Connect	802.1aq/RFC 6329 Shortest Path Bridging with Extreme Networks extensions MAC Address: 112,000 NNI Interfaces/Adjacencies: up to 255 BEB Nodes per VSN: 500 Transparent UNI Ports/Switch: 54, and up to 72 when all 40 Gigabit ports are Channelized BCB/BEB Nodes per Region: 800 L2 Virtual Service Networks: 4,059 L3 Virtual Service Networks: up to 256 IP Shortcut Routes: IPv4 15,488, and IPv6 7,488 DvR Domains per Region: 16 DvR-enabled L2 VSNs: up to 502 DvR Controllers per Domain: 8 DvR Leafs per Domain: 250 DvR Interfaces: up to 502 DvR Routes: up to 32,000 L2 Multicast Virtual Service Networks: up to 2,000 L3 Multicast Virtual Service Networks: 256 VXLAN Gateway VTEP Destinations per Node: 500 VXLAN Gateway VNI IDs per Node: 2,000 Fabric Attach VLAN/VSN Assignments per Port: 94
QoS and Filtering	IPv4 ACE: 766 Ingress and 252 Egress IPv6 ACE: 256 Ingress L2-L4 Ingress Port Rate Limiters: 54, and up to 72 when all 40 Gigabit ports are Channelized Egress Port Shaper Granularity: 1Mbps to 40Gbps per Port
Operations and Management	Mirrored Ports: 53, and up to 71 when all 40 Gigabit ports are Channelized sFlow: up to 3,000 samples per second Fabric RSPAN: up to 1,000 VSN IDs per Region
Standards Compliance	IEEE 802.1 Bridging (Networking) and Network Management IEEE 802.1D MAC Bridges (a.k.a. Spanning Tree Protocol) IEEE 802.1p Traffic Class Expediting and Dynamic Multicast Filtering IEEE 802.1t 802.1D Maintenance IEEE 802.1w Rapid Reconfiguration of Spanning Tree (RSTP) IEEE 802.1Q Virtual Local Area Networking (VLAN) IEEE 802.1Qbp Equal-Cost Multi-Path (Shortest Path Bridging) IEEE 802.1Qcj Automatic Attachment to Provider Backbone Bridging (PBB) Services (Partial Support) IEEE 802.1s Multiple Spanning Trees (MSTP) IEEE 802.1v VLAN Classification by Protocol & Port IEEE 802.1ag Connectivity Fault Management IEEE 802.1ah Provider Backbone Bridges IEEE 802.1aq Shortest Path Bridging (SPB) MAC-in-MAC IEEE 802.1X Port-based Network Access Control IEEE 802.1AB-2005 Station & Media Access Control Connectivity Discovery; aka LLDP (partial support) IEEE 802.1AE Media Access Control Security IEEE 802.1AX Link Aggregation IEEE 802.3 Ethernet IEEE 802.3-1983 CSMA/CD Ethernet (ISO/IEC 8802-3) IEEE 802.3i-1990 10Mb/s Operation, 10BASE-T Copper IEEE 802.3u-1995 100Mb/s Operation, 100BASE-T Copper, with Auto-Negotiation IEEE 802.3x-1997 Full Duplex Operation IEEE 802.3z-1998 1000Mb/s Operation, implemented as 1000BASE-X IEEE 802.3ab-1999 1000Mb/s Operation, 1000BASE-T Copper IEEE 802.3ae-2002 10Gb/s Operation, implemented as 10GBASE-SFP+ IEEE 802.3an-2006 10Gb/s Operation, 10GBASE-T Copper IEEE 802.3ba-2010 40Gb/s and 100Gb/s Operation IEEE 802.3bm-2015 40Gb/s and 100Gb/s Operation, implemented as 40GBASE-QSFP+ & 100GBASE-QSFP28 IETF Standards
