Details:

Description

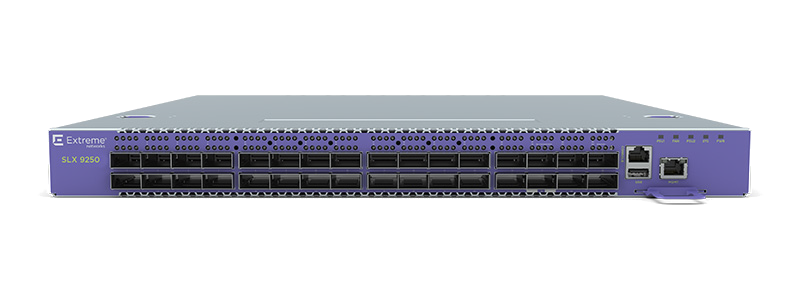

	SLX 9250 (32 x 100 GbE)
Ports	32 x QSFP+/QSFP28 40GbE/100GbE ports 128 x 25/10 GbE using break-out cables 1 x Serial console port RJ-45 1 x 10/100/1000BASE-T out-of-band management port Micro-USB Type A storage port
Power Supplies	Modular 750W AC power supply (up to 2 PSUs) Modular 750W DC power supply (up to 2 PSUs) Front-Back and Back-Front airflow options
Fan Tray	6 fan modules Front-Back and Back-Front airflow options
Dimensions	17.3in W/22.4in D/1.7in H (44cm/57.0cm/4.3cm)
Weight	16.3lb (7.4kg) no PSU/19.9 lb (9.0 kg) with single PSU
Performance	Line rate 6.4 Tbps Switching Capacity (3.2 Tbps ingress, 3.2 Tbps egress) Forwarding Rate: 2000 Mpps Average Latency: 800 ns
CPU Memory	8-core Processor 16GB DDR4 ECC memory 128GB SSD memory
Packet Buffers	32MB
Operating Conditions	0º - 45ºC operation 10% to 95% relative humidity, non-condensing 0 - 3000 meters’ altitude
Power and Heat Dissipation
Minimum Heat Dissipation (BTU/ hr) (Idle, no port s linked)	734 BTU/ hr
Minimum Power Consumption (Watts) (Idle, no port s linked)	215W
Maximum Heat Dissipation (BTU/hr) (Fans high, all ports 100% traffic)	1573 BTU/ hr
Maximum Power Consumption (Watts) (Fans high, all ports 100% traffic)	461W
Software Specifications
Connector options	40 GbE QSFP+ 100 GbE QSFP28 Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45 Console management: RJ45 serial port and USB type-C port with serial communication device class support Storage: USB port, standard-A plug
Maximum MAC addresses	Up to 64,000
Maximum VLANs	4,096
Maximum ACLs (IPv4/IPv6/L2)	2,000
Maximum members in a standard LAG	64
Maximum number of MCT switches	2
Maximum number of Bridge Domains	2,048
Maximum IPv4 unicast routes	128,000
Maximum IPv6 unicast routes	10,000
Maximum IPv4 host routes	47,000
Maximum IPv4 host routes	33,000
Maximum jumbo frame size	9,216 bytes
QoS priority queues (per port)	8
