SLX 9150 :: Core/Data Center Switching :: Switches :: Extreme :: Networking

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Extreme, ServerMonkey offers the Extreme 9150 Series competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

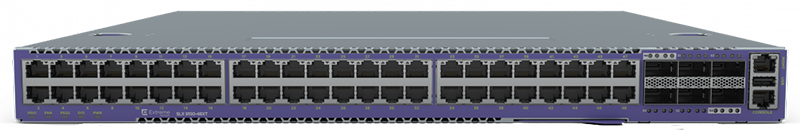

	SLX 9150-48Y	SLX 9150-48XT
Ports	48 1/10/25GbE SFP28 ports 8 40/100GbE QSFP28 ports 1x Serial console port RJ-45 1x 10/100/1000BASE-T out -of-band management port USB Type A storage port	48 1/10GbE 10GBaseT ports 6 40/100GbE QSFP28 ports 1x Serial console port RJ-45 1x 10/100/1000BASE-T out -of-band management port USB Type A storage port
Power Supplies	Modular 750W AC power supply (up to two PSUs) Modular 750W DC power supply (up to two PSUs) Front to Back and Back to Front airflow options	Modular 750W AC power supply (up to two PSUs) Modular 750W DC power supply (up to two PSUs) Front to Back and Back to Front airflow options
Fan Modules	6 fan modules Front-Back and Back-Front airflow options	6 fan modules Front-Back and Back-Front airflow options
Dimensions	17.3in W / 20.9in D / 1.7in H (44.0cm / 53.2cm / 4.3cm)	17.3in W / 20.9in D / 1.7in H (44.0cm / 53.2cm / 4.3cm)
Performance	Line rate 4Tbps Switching Capacity (2Tbps ingress, 2Tbps egress) Average Latency: 800 ns Forwarding rate: 1000 Mpps	Line rate 2.16 Tbps Switching Capacity (1.08Tbps ingress, 1.08Tbps egress) Average Latency: 2,400 ns Forwarding rate: 1000 Mpps
CPU Memory	8-core Processor 16GB DDR4 ECC memory 128GB SSD memory	8-core Processor 16GB DDR4 ECC memory 128GB SSD memory
Packet Buffers	32MB	32MB
Operating Conditions	0º - 45ºC operation 5% to 95% relative humidity, non-condensing 0 - 3000 meters’ altitude Shock (half sine): 98 m/ s2 (10 G), 11ms, 9 shocks Random vibration: 3 to 500 Hz at 1.5 G rms
Power and Heat Dissipation
Minimum Heat Dissipation (BTU/ hr) (Idle, no port s linked)	553 BTU/ hr	642 BTU/ hr
Minimum Power Consumption (Watts) (Idle, no port s linked)	167W	194W
Maximum Heat Dissipation (BTU/hr) (Fans high, all ports 100% traffic)	1600 BTU/ hr	1225 BTU/ hr
Maximum Power Consumption (Watts) (Fans high, all ports 100% traffic)	469W	359W
Software Specifications
Connector options	10/1 GbE SFP+ 25 GbE SFP28 40 GbE QSFP+ 100 GbE QSFP28 Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45 Console management: RJ45 serial port and USB type-C port with serial communication device class support Storage: USB port, standard-A plug Sound Pressure
Maximum MAC addresses	64,000
Maximum VLANs	4,096
Maximum ACLs (IPv4/IPv6/L2)	2,000
Maximum members in a standard LAG	64
Maximum number of MCT switches	2
Maximum number of Bridge Domains	2,048
Maximum IPv4 unicast routes	128,000
Maximum IPv6 unicast routes	10,000
Maximum IPv4 host routes	47,000
Maximum IPv4 host routes	33,000
Maximum jumbo frame size	9,216 bytes
QoS priority queues (per port)	8
