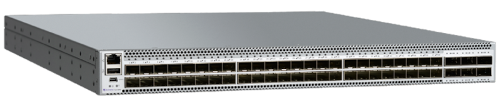

SLX 9140 :: Core/Data Center Switching :: Switches :: Extreme :: Networking

Their next-generation firewalls provide visibility, security, and control to help you manage your business, no matter the size. SonicWall firewalls are designed to match your security needs and protect your budget. Their secure wireless access points enhance the user experience by improving performance, range, and visibility. Lastly, their high-speed switching provides secure connectivity for the modern business.

As a trusted Extreme, ServerMonkey offers the Extreme SLX 9140 competitive rates, providing businesses with access to top-tier networking hardware.

Request a Quote

Details:

Description

	SLX 9140 Switch Specifications
Form Factor	1U
Switching Bandwidth (data rate, full duplex)	1.8 Tbps in and 1.8 Tbps out for a sum total of 3.6 Tbps
Forwarding Capacity (data rate, full duplex)	(L2) 1.2 Bpps, (L3) 600 Mpps line-rate performance
Dimensions and Weight	44.0 cm; 17.3 in. (Width), 44.5 cm; 17.5 in. (Depth), 4.37cm; 1.72 in. (Height) 9.00 kg; 19.8 lb
Port-to-port latency	2.5 usec
Architecture Store and Forward	Supported
25/10/1 GbE ports	48
100/40 GbE Ports	6
Power Supplies	Two internal, redundant, field-replaceable, load-sharing AC or DC power supplies
Cooling Fans	Five field-replaceable fans
Airflow	Rear-to-front or front-to-rear airflow
Dynamically Shared Packer Buffer	24 MB
Power
Power Inlet (AC)	C13
Input Voltage	90 V to 264 V or 40.8 V to 60 V DC
Input Line Frequency	47 Hz to 63 Hz
Inrush Current	25 A peak
Maximum Current	12 A/AC, 14 A/D
Typical Power Consumption	182 W \| Two AC PSU, five fan trays, 10% traffic, low fan speed
Maximum Power Consumption	489 W \| Two AC PSU, six fan trays, 100% traffic, high fan speed
Power Supply Rated Maximum (AC)	650 W
Switch Power Consumption	DC PSU 475 W; AC PSU 489 W
Environment
Temperature	Operating: −5°C to 50°C (front-to-back air flow) −5°C to 45°C (back-to-front air flow) Temporarily up to 55°C (six fan trays) Non-operating and storage: −40°C to 70°C
Humidity	5% to 95% at 50°C
Altitude	Up to 3,000 m safety; 60 m to 4,000 m operational
Shock (operational)	20 G, 11 ms, half-sine wave
Vibration (operational)	1 G sine, 0.4 gms random, 5 Hz to 500 Hz
Airflow	134 CFM (estimated with two PSU, six fan trays)
Switch heat dissipation (25°C)	AC PSU 400 W
Acoustics (25°C)	52 dBA
MTBF (25°C)	324,414 hours
Software Specifications
Connector Options	10/1 GbE SFP+ 40 GbE QSFP+ 25 GbE SFP-28 100 GbE QSFP-28 Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45 Console management: RJ45 serial port and USB type-C port with serial communication device class support Storage: USB port, standard-A plug
Maximum MAC Addresses	Up to 96,000
Maximum VLANs	4,096
Maximum Routes (in hardware)	Up to 80,000
Maximum ACLs	2,000
Maximum Members in a Standard LAG	36
Maximum Per-Port Priority Pause Level	8
Maximum Switches an mLAG Can Span	2
Maximum IPv4 Unicast Routes	48,000
Maximum IPv6 Unicast Routes	16,000
DCB Priority Flow Control Classes	8
Maximum Jumbo Frame Size	10,000 bytes
QoS Priority Queues (per port)	8
