Details:

Description

Item	Specification
Part numbers	Cisco Aironet 1572EAC (External Antenna, AC Power Model) AIR-AP1572EAC-x-K9 Cisco Aironet 1572IC (Internal Antenna, PoC Model) AIR-AP1572IC1-x-K9 North American DOCSIS3.0 with Diplex Filter split of: 5-42/ 88-1000 MHz AIR-AP1572IC2-x-K9 North American DOCSIS3.0 with Diplex Filter split of: 5-85/ 108-1002 MHz AIR-AP1572IC3-x-K9 Euro- DOCSIS3.0 with Diplex Filter split of: 5-65/ 108-1002 MHz AIR-AP1572IC4-x-K9 Japan- DOCSIS3.0 with Diplex Filter split of: 5-65/ 108-1002 MHz Cisco Aironet 1572EC (External Antenna, PoC Model) AIR-AP1572EC1-x-K9 North American DOCSIS3.0 with Diplex Filter split of: 5-42/ 88-1000 MHz AIR-AP1572EC2-x-K9 North American DOCSIS3.0 with Diplex Filter split of: 5-85/ 108-1002 MHz AIR-AP1572EC3-x-K9 Euro- DOCSIS3.0 with Diplex Filter split of: 5-65/ 108-1002 MHz AIR-AP1572EC4-x-K9 Japan- DOCSIS3.0 with Diplex Filter split of: 5-65/ 108-1002 MHz Regulatory domains: (x = regulatory domain) Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visit https://www.cisco.com/go/aironet/compliance. ● Not all models available for all regulatory domains. ● Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List. Cisco SMARTnet^® Service for the Cisco Aironet 1570 Series Access Points Refer to the Service part numbers available on Cisco Commerce Workspace for available service offerings.
802.11n Version 2.0 capabilities	● 4x4 MIMO with three spatial streams (3SS) ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g Beamforming ● 20- and 40-MHz channels ● PHY data rates up to 450 Mbps (40 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support
802.11ac Wave 1 capabilities	● 4x4 MIMO with three spatial streams (3SS) ● Maximum Ratio Combining (MRC) ● 802.11ac Beamforming ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support
DOCSIS 3.0 Capabilities	DOCSIS3.0 with up to 8x4, 16x8, and 24x8 Downstream (DS) x Upstream (US) channel bonding capability for Hybrid Fiber-Coaxial (HFC) Cable Modem (CM) options. The CM protocols include NA-DOCSIS3.0, Euro-DOCSIS3.0 and Japan-DOCSIS3.0. The NA-DOCSIS3.0 is offered with either (42/88 MHz or 85/108 MHz) diplexer split. The Euro and Japan DOCSIS are offered with (65/108 MHz) diplexer split. NA-DOCSIS3.0, Euro-DOCSIS3.0 24x8 cable modem provides up to: ● Twenty f our (24) bonded channels on the downstream with total throughput of up to 912 and 1200 Mbps respectively (maximum usable throughput without overhead) ● Eight (8) bonded channels on the upstream with total throughput of up to 216 Mbps (maximum usable throughput without overhead) ● Designed to meet DOCSIS 3.0 specifications as well as backward compatibility with existing DOCSIS2.0 networks ● Enhanced packet processing technology to maximize performance Channel-bonded cable modems must be used in conjunction with a Cable Modem Termination System (CMTS) that supports channel bonding per the DOCSIS3.0 specifications. When used with a non-channel-bonded CMTS, channel-bonded cable modems function as conventional DOCSIS 2.0 cable modems.
Data Rates Supported	2.4 GHz - 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
	2.4 GHz - 802.11n:
	Spatial Streams	MCS Index[1]		GI[2] = 800 ns								GI = 400 ns
				20 MHz Rate (Mbps)								20 MHz Rate (Mbps)
	1	0		6.5								7.2
	1	1		13								14.4
	1	2		19.5								21.7
	1	3		26								28.9
	1	4		39								43.3
	1	5		52								57.8
	1	6		58.5								65
	1	7		65								72.2
	2	8		13								14.4
	2	9		26								28.9
	2	10		39								43.3
	2	11		52								57.8
	2	12		78								86.7
	2	13		104								115.6
	2	14		117								130
	2	15		130								144.4
	3	16		19.5								21.7
	3	17		39								43.3
	3	18		58.5								65
	3	19		78								86.7
	3	20		117								130
	3	21		156								173.3
	3	22		175.5								195
	3	23		195								216.7
	5 GHz - 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
	5 GHz - 802.11n:
	Spatial Streams	MCS Index		GI = 800 ns							GI = 400 ns
				20 MHz Rate (Mbps)		40 MHz Rate (Mbps)					20 MHz Rate (Mbps)				40 MHz Rate (Mbps)
	1	0		6.5		13.5					7.2				15
	1	1		13		27					14.4				30
	1	2		19.5		40.5					21.7				45
	1	3		26		54					28.9				60
	1	4		39		81					43.3				90
	1	5		52		108					57.8				120
	1	6		58.5		121.5					65				135
	1	7		65		135					72.2				150
	2	8		13		27					14.4				30
	2	9		26		54					28.9				60
	2	10		39		81					43.3				90
	2	11		52		108					57.8				120
	2	12		78		162					86.7				180
	2	13		104		216					115.6				240
	2	14		117		243					130				270
	2	15		130		270					144.4				300
	3	16		19.5		40.5					21.7				45
	3	17		39		81					43.3				90
	3	18		58.5		121.5					65				135
	3	19		78		162					86.7				180
	3	20		117		243					130				270
	3	21		156		324					173.3				360
	3	22		175.5		364.5					195				405
	3	23		195		405					216.7				450
	5 GHz - 802.11ac:
	Spatial Streams	MCS Index		GI = 800 ns							GI = 400 ns
				20 MHz Rate (Mbps)		40 MHz Rate (Mbps)			80 MHz Rate (Mbps)		20 MHz Rate (Mbps)				40 MHz Rate (Mbps)		80 MHz Rate (Mbps)
	1	0		6.5		13.5			29.3		7.2				15		32.5
	1	1		13		27			58.5		14.4				30		65
	1	2		19.5		40.5			87.8		21.7				45		97.5
	1	3		26		54			117		28.9				60		130
	1	4		39		81			175.5		43.3				90		195
	1	5		52		108			234		57.8				120		260
	1	6		58.5		121.5			263.3		65				135		292.5
	1	7		65		135			292.5		72.2				150		325
	1	8		78		162			351		86.7				180		390
	1	9		-		180			390		-				200		433.3
	2	0		13		27			58.5		14.4				30		65
	2	1		26		54			117		28.9				60		130
	2	2		39		81			175.5		43.3				90		195
	2	3		52		108			234		57.8				120		260
	2	4		78		162			351		86.7				180		390
	2	5		104		216			468		115.6				240		520
	2	6		117		243			526.5		130				270		585
	2	7		130		270			585		144.4				300		650
	2	8		156		324			702		173.3				360		780
	2	9		-		360			780		-				400		866.7
	3	0		19.5		40.5			87.8		21.7				45		97.5
	3	1		39		81			175.5		43.3				90		195
	3	2		58.5		121.5			263.3		65				135		292.5
	3	3		78		162			351		86.7				180		390
	3	4		117		243			526.5		130				270		585
	3	5		156		324			702		173.3				360		780
	3	6		175.5		364.5			-		195				405		-
	3	7		195		405			877.5		216.7				450		975
	3	8		234		486			1053		260				540		1170
	3	9		260		540			1170		288.9				600		1300
Frequency Band and 20- MHz Operating Channels (Regulatory Domains)	A: 2.412 to 2.462 GHz, 11 channels 5.280 to 5.320 GHz, 3 channels 5.500 to 5.560 GHz, 4 channels 5.680 to 5.700 GHz, 2 channels 5.745 to 5.825 GHz, 5 channels B: 2.412 to 2.462 GHz, 11 channels 5.180 to 5.240 GHz, 4 channels 5.260 to 5.320 GHz, 4 channels 5.500 to 5.560 GHz, 4 channels 5.680 to 5.720 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels C: 2.412 to 2.462 GHz, 11 channels 5.745 to 5.825 GHz, 5 channels D: 2.412 to 2.462 GHz, 11 channels 5.745 to 5.865 GHz, 7 channels E: 2.412 to 2.462 GHz, 11 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels F: 2.412 to 2.462 GHz, 11 channels 5.745 to 5.805 GHz, 4 channels -H: 2.412 to 2.462 GHz, 1 channels 5.745 to 5.825 GHz, 5 channels -I: 2.412 to 2.472 GHz, 13 channels 5.180 to 5.320 GHz, 8 channels
	-K: 2.412 to 2.462 GHz, 11 channels 5.280 to 5.320 GHz, 3 channels 5.500 to 5.620 GHz, 7 channels 5.745 to 5.805 GHz, 4 channels -M: 2.412 to 2.462 GHz, 11 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.805 GHz, 4 channels -N: 2.412 to 2.462 GHz, 11 channels 5.745 to 5.825 GHz, 5 channels -Q: 2.412 to 2.462 GHz, 11 channels 5.500 to 5.700 GHz, 11 channels -R: 2.412 to 2.462 GHz, 11 channels 5.260 to 5.320 GHz, 4 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels -S: 2.412 to 2.462 GHz, 11 channels 5.500 to 5.700 GHz, 11 channels 5.745 to 5.825 GHz, 5 channels -T: 2.412 to 2.462 GHz, 11 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels -Z: 2.412 to 2.462 GHz, 11 channels 5.500 to 5.580 GHz, 5 channels 5.660 to 5.700 GHz, 3 channels 5.745 to 5.825 GHz, 5 channels
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Maximum Number of Non-overlapping Channels	2.4 GHz ● 802.11b/g: ◦ 20 MHz: 3 ● 802.11n: ◦ 20 MHz: 3						5 GHz ● 802.11a: ◦ 20 MHz: 27 ● 802.11n: ◦ 20 MHz: 27 ◦ 40 MHz: 13 ● 802.11ac: ◦ 20 MHz: 27 ◦ 40 MHz: 13 ◦ 80 MHz: 6
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Receive Sensitivity	2.4 GHz 802.11, 802.11b (DSSS, CCK) -103 dBm @ 1 Mbps -101 dBm @ 2 Mbps -93 dBm @ 5.5 Mbps -90 dBm @ 11 Mbps
	2.4 GHz 802.11g (non HT20) -93 dBm @ 6 Mbps -93 dBm @ 9 Mbps -93 dBm @ 12 Mbps -92 dBm @ 18 Mbps -89 dBm @ 24 Mbps -87 dBm @ 36 Mbps -82 dBm @ 48 Mbps -81 dBm @ 54 Mbps						5 GHz 802.11a (non HT20) -92 dBm @ 6 Mbps -92 dBm @ 9 Mbps -92 dBm @ 12 Mbps -91 dBm @ 18 Mbps -89 dBm @ 24 Mbps -86 dBm @ 36 Mbps -81 dBm @ 48 Mbps -80 dBm @ 54 Mbps
	2.4-GHz 802.11n (HT20) -93 dBm @ MCS0 -93 dBm @ MCS1 -91 dBm @ MCS2 -88 dBm @ MCS3 -85 dBm @ MCS4 -80 dBm @ MCS5 -79 dBm @ MCS6 -78 dBm @ MCS7 -93 dBm @ MCS8 -91 dBm @ MCS9 -89 dBm @ MCS10 -86 dBm @ MCS11 -82 dBm @ MCS12 -78 dBm @ MCS13 -77 dBm @ MCS14 -76 dBm @ MCS15 -93 dBm @ MCS16 -90 dBm @ MCS17 -88 dBm @ MCS18 -84 dBm @ MCS19 -81 dBm @ MCS20 -77 dBm @ MCS21 -75 dBm @ MCS22 -74 dBm @ MCS23						5-GHz 802.11n (HT20) -92 dBm @ MCS0 -91 dBm @ MCS1 -90 dBm @ MCS2 -87 dBm @ MCS3 -84 dBm @ MCS4 -79 dBm @ MCS5 -78 dBm @ MCS6 -77 dBm @ MCS7 -92 dBm @ MCS8 -90 dBm @ MCS9 -87 dBm @ MCS10 -85 dBm @ MCS11 -81 dBm @ MCS12 -77 dBm @ MCS13 -76 dBm @ MCS14 -74 dBm @ MCS15 -91 dBm @ MCS16 -89 dBm @ MCS17 -87 dBm @ MCS18 -84 dBm @ MCS19 -80 dBm @ MCS20 -76 dBm @ MCS21 -75 dBm @ MCS22 -73 dBm @ MCS23							5-GHz 802.11n (HT40) -88 dBm @ MCS0 -88 dBm @ MCS1 -87 dBm @ MCS2 -84 dBm @ MCS3 -81 dBm @ MCS4 -76 dBm @ MCS5 -75 dBm @ MCS6 -74 dBm @ MCS7 -89 dBm @ MCS8 -87 dBm @ MCS9 -85 dBm @ MCS10 -82 dBm @ MCS11 -79 dBm @ MCS12 -74 dBm @ MCS13 -73 dBm @ MCS14 -71 dBm @ MCS15 -88 dBm @ MCS16 -86 dBm @ MCS17 -84 dBm @ MCS18 -80 dBm @ MCS19 -78 dBm @ MCS20 -73 dBm @ MCS21 -71 dBm @ MCS22 -70 dBm @ MCS23
	Spatial Streams		MCS Index				5 GHz 802.11ac (VHT20)			5 GHz 802.11ac (VHT40)						5 GHz 802.11ac (VHT80)
	1		0				-92			-89						-85
	1		4				-86			-83						-80
	1		7				-79			-75						-73
	1		8				-74			-71						-68
	1		9				NA			-69						-66
	2		0				-92			-89						-85
	2		4				-83			-81						-77
	2		7				-76			-74						-70
	2		8				-72			-68						-66
	2		9				NA			-67						-63
	3		0				-91			-89						-85
	3		4				-82			-79						-76
	3		7				-75			-72						-69
	3		8				-69			-66						-64
	3		9				-66			-64						-60
Maximum Conducted Transmit Power	2.4 GHz ● 802.11, 802.11b (DSSS, CCK) ◦ 30 dBm with 4 antennas ● 802.11g (non HT20) ◦ 30 dBm with 4 antennas ● 802.11n (HT20) ◦ 30 dBm with 4 antennas									5 GHz ● 802.11a (non HT20) ◦ 30 dBm with 4 antennas ● 802.11n non-HT duplicate (802.11a duplicate) mode ◦ 30 dBm with 4 antennas ● 802.11n (HT20) ◦ 30 dBm with 4 antennas ● 802.11n (HT40) ◦ 30 dBm with 4 antennas ● 802.11ac ◦ non-HT80: 30 dBm, 4 antennas ◦ VHT20: 30 dBm, 4 antennas ◦ VHT40: 30 dBm, 4 antennas ◦ VHT80: 30 dBm, 4 antennas ◦ VHT20-STBC: 30 dBm, 4 antennas ◦ VHT40-STBC: 30 dBm, 4 antennas ◦ VHT80-STBC: 30 dBm, 4 antennas
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Interface	● WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45) ● LAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45) ● Fiber SFP ● Cable modem: NA-DOCSIS3.0/Euro-DOCSIS3.0/Japan-DOCSIS3.0 (8x4, 16x8, or 24x8) ● Management console port (RJ-45) ● Four multicolor LEDs ● Reset button
Uplink options	1572EAC 1572IC 1572EC							Ethernet, Fiber SFP, Wireless Mesh Ethernet, Fiber SFP, Wireless Mesh, Cable Modem Ethernet, Fiber SFP, Wireless Mesh, Cable Modem
Dimensions (L x W x D)	1572EAC/1572EC 1572IC							11.8 x 7.9 x 6.3 in. 11.8 x 7.9 x 7.9 in.					(30.0 x 20.1 x 16.0 cm) (30.0 x 20.1 x 20.1 cm)
Weight	1572EAC/1572EC 1572IC Pole mounting Kit 1 (PMK1): Pole mounting Kit 2 (PMK2): Pole mounting Kit 3 (PMK3): Cable strand mounting bracket 1 (SMK1): Cable strand mounting bracket 2 (SMK2): Cable strand mounting bracket 2 (SMK3):							13.5 lbs. (6.1 kg) 11.5 lbs. (5.2 kg) 2.2 lbs. (1.0 kg) 4.4 lbs. (2.0 kg) 6.1 lbs. (2.8 kg) 0.3 lbs. (0.2 kg) 0.7 lbs. (0.3 kg) 1.2 lbs. (0.5 kg)
Environmental	Operating temperature: ● -40 to 65°C (-40 to 149°F) ambient air with no solar loading ● -40 to 55°C (-40 to 131°F) ambient air with solar loading 743W/m2 (details in HW installation guide) Storage temperature: -50 to 70°C (-58 to 158°F) Humidity: 5 - 95%, non-condensing Wind resistance: ● Up to 100-MPH sustained winds ● Up to 165-MPH wind gusts
Environmental Ratings	IP67 NEMA Type 4X
Antennas	1572EAC/1572EC/1572IC ● GPS Antenna: AIR-ANT-GPS-1 1572EAC/1572EC (external antennas) ● Dual-Band ◦ AIR-ANT2568VG-N 6 dBi (2.4 GHz), 8 dBi (5 GHz) Omni ◦ AIR-ANT2547VG-N 4 dBi (2.4 GHz), 7 dBi (5 GHz) Omni ◦ AIR-ANT2547V-N 4 dBi (2.4 GHz), 7 dBi (5 GHz) Omni ◦ AIR-ANT2588P3M-N= 8 dBi (2.4 GHz), 8 dBi (5 GHz) Directional ◦ AIR-ANT2513P4M-N= 13 dBi (2.4 GHz), 13 dBi (5 GHz) Directional ● Single Band ◦ AIR-ANT2420V-N= 2 dBi (2.4 GHz), Omni, right-angle ◦ AIR-ANT2450V-N= 5 dBi (2.4GHz), Omni ◦ AIR-ANT2480V-N= 8 dBi (2.4 GHz), Omni ◦ AIR-ANT2413P2M-N= 13 dBi (2.4 GHz), Directional, dual polarized 5 GHz ● AIR-ANT5140V-N= 4 dBi (5 GHz), Omni, right-angle ● AIR-ANT5180V-N= 8 dBi (5GHz), Omni ● AIR-ANT5114P2M-N= 14 dBi (5GHz), Directional, dual polarized 1572IC (internal antennas) ● Integrated Dual Band Omnidirectional Antenna Radome: 4 dBi (2.4 GHz), 6 dBi (5 GHz)
Powering Options	1572EAC AC: 100-277 VAC, 50/60 Hz DC: 10 to 16 VDC PoE-Input: ● UPOE compliant PSE ● Cisco AIR-PWRINJ1500-2= PoE-out: PoE+ (802.3at)				1572IC/1572EC PoC: 40-90 VAC, 50/60 Hz, quasi-square wave, Power over Cable (PoC) DC: 10 to 16 VDC PoE-out: PoE+ (802.3at), 1572EC only
Compliance	Safety ● UL/cUL 60950, 2 ^nd Edition ● IEC 60950, 2 ^nd Edition ● EN 60950, 2 ^nd Edition ● ARIB-STD 66 (Japan) ● ARIB-STD T71 (Japan) Immunity ● <= 5 mJ f or 6kV/3kA @ 8/20 ms waveform ● ANSI/IEEE C62.41 ● EN61000-4-5 Lev el 4 AC Surge Immunity ● EN61000-4-4 Lev el 4 Electrical Fast Transient Burst Immunity ● EN61000-4-3 Lev el 4 EMC Field Immunity ● EN61000-4-2 Lev el 4 ESD Immunity ● EN60950 Overvoltage Category IV Radio approvals ● FCC Part 15.247, 15.407 ● FCC Bulletin OET-65C ● RSS-210 ● RSS-102 ● AS/NZS 4268.2003 ● EN 300 328 ● EN 301 893 EMI and susceptibility ● FCC part 15.107, 15.109 ● ICES-003 ● EN 301 489-1, -17 Security ● Wireless bridging/mesh ◦ X.509 digital certificates ◦ MAC address authentication ◦ Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP) ● Wireless access ◦ 802.11i, Wi-Fi Protected Access (WPA2), WPA ◦ 802.1X authentication, including Extensible Authentication Protocol and Protected EAP (EAP-PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), and Cisco LEAP ◦ Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP) ◦ VPN pass-through ◦ IP Security (IPsec) ◦ Layer 2 Tunneling Protocol (L2TP) ● MAC address filtering
Configuration Options	Flexible deployment configurations include: ● Controller-based ● Standalone (future) ● Mesh ● Point-to-point or point-to-multipoint campus bridge ● Serial backhaul (linear mesh) ● Workgroup bridge
Warranty	Hardware: 1 year limited warranty

CONTACT US TO LEARN MORE

ABOUT Cisco Aironet 1570

Fill out the form and our team will get back to you.

1-855-432-8918
[email protected]
2130 W Sam Houston Pkwy N
Houston, TX 77043

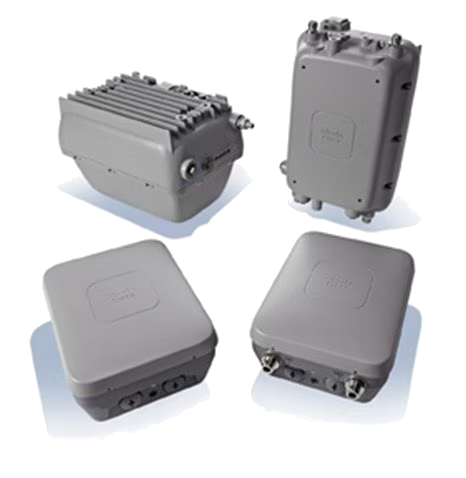

Cisco Aironet 1570
